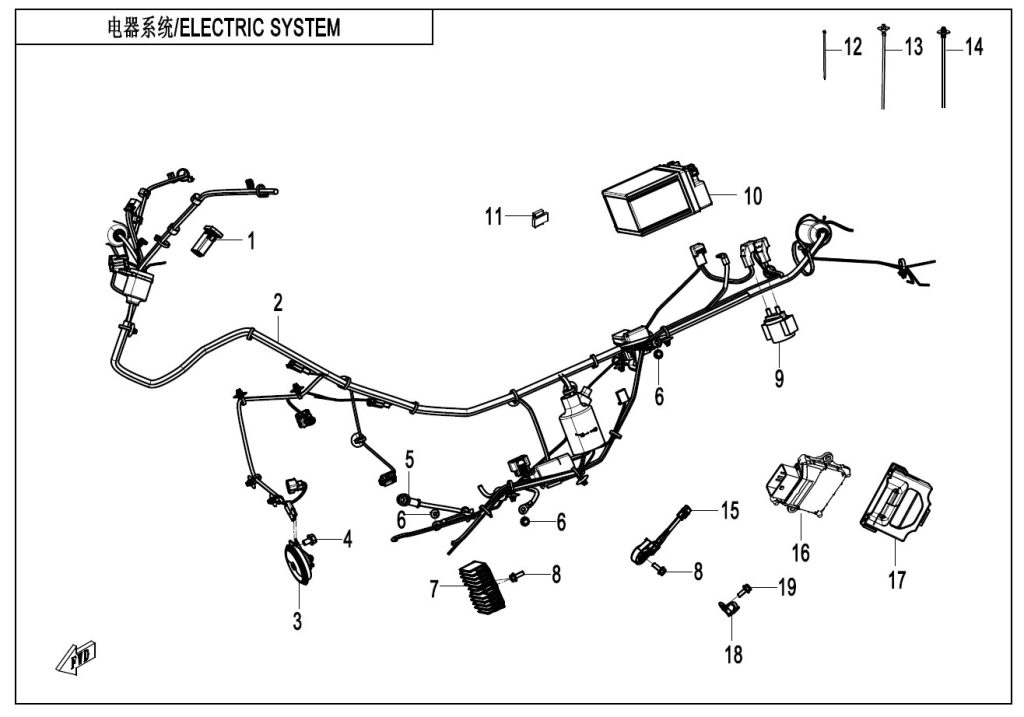

F15 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | USB OUTPUT SEAT ASSY 6BLV-151200-1000 | Skladem | 512,70 Kč | ||
| 2 | MAIN HARNESS 6BMV-150100-1101 | Skladem | 9 244,16 Kč | ||
| 3 | HORN 6KWV-150600-1000 | Skladem | 290,40 Kč | ||
| 3 | HORN 6BMV-151400-1000 | Skladem | |||
| 4 | Šroub 30006-080012810 | Skladem | 15,54 Kč | ||
| 5 | START MOTOR POSITIVE/NEGATIVE CABLE 6BMV-150330-1002 | Skladem | 497,16 Kč | ||
| 6 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 7 | REGULATOR 6BMV-151000-1100 | Skladem | 1 056,48 Kč | ||
| 8 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 9 | RELAY, STARTER 6KJ0-150500 | Skladem | 449,74 Kč | ||
| 10 | BATTERY 6BMV-151600-1001-M1 | Skladem | |||
| 10 | BATTERY 6BMV-151600-1100-M1 | Skladem | |||
| 11 | RUBBER SLEEVE, FLASHER 6100-150500 | Skladem | 15,54 Kč | ||
| 12 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 13 | TIE BAND 801F-100101 | Skladem | 31,07 Kč | ||
| 14 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 15 | SIDE STAND SWITCH 6BMV-151500-1100 | Skladem | 466,09 Kč | ||
| 16 | ECM ASSY 6BMV-001000-1100 | Skladem | 4 676,46 Kč | ||
| 17 | ECU RUBBER SLEEVE 6KMV-001300-M300 | Skladem | 124,29 Kč | ||
| 18 | SIDE STAND SWITCH CABLE WIRE CLIP 6BMV-035515-1100 | Skladem | |||
| 19 | BOLT M6x12 0010-021019-0010 | Skladem | 15,54 Kč | ||
