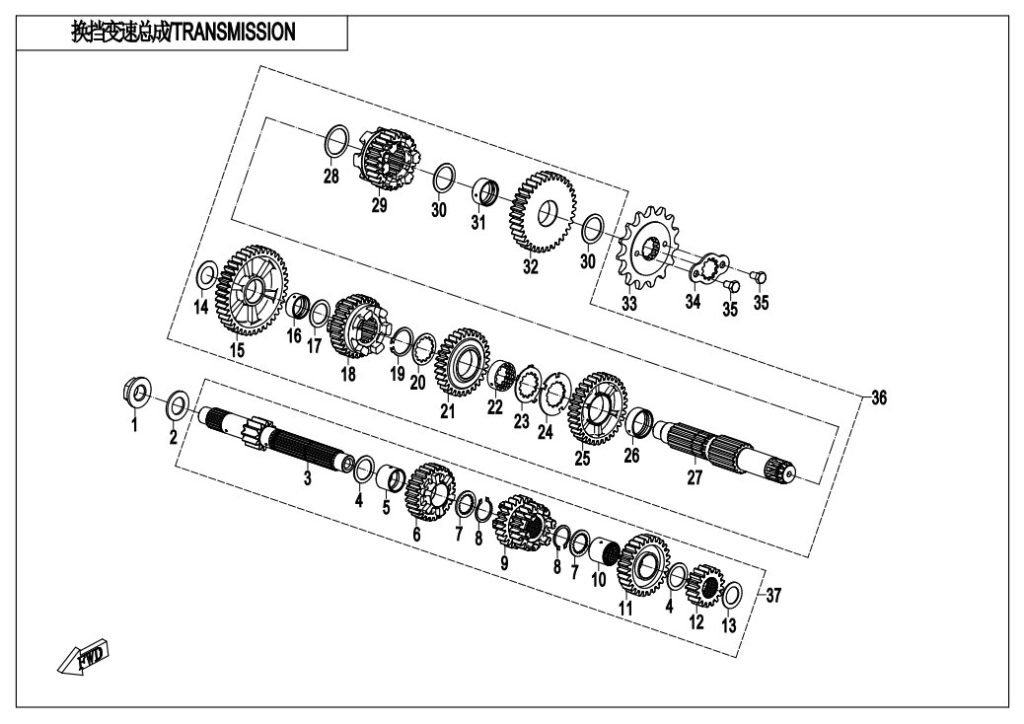

E06-2 TRANSMISSION(2)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Matice 0110-040001-00002 | Skladem | 31,07 Kč | ||
| 02 | CIRCLIP16 0DM0-040003 | Skladem | 15,54 Kč | ||
| 03 | DRIVE SHAFT 0DM0-061001 | Skladem | 590,38 Kč | ||
| 04 | WASHER 20x27x1 0DM0-061006 | Skladem | 15,54 Kč | ||
| 05 | BUSHING 20x23x17.2 0DM0-061007 | Skladem | 124,29 Kč | ||
| 06 | DRIVE GEAR, 26 0DM0-061004 | Skladem | 341,80 Kč | ||
| 07 | SPLINE WASHER 20x26x1.6 0DM0-061008 | Skladem | 31,07 Kč | ||
| 08 | CIRCLIPS FOR SHAFT 20 0DM0-061012 | Skladem | 15,54 Kč | ||
| 09 | DRIVE GEAR 0DM0-061003 | Skladem | 559,31 Kč | ||
| 10 | SPLINE SLEEVE 23 0DM0-061009 | Skladem | 186,44 Kč | ||
| 11 | DRIVE GEAR, 27 0DM0-061005 | Skladem | 450,56 Kč | ||
| 12 | DRIVE GEAR, 17 0DM0-061002 | Skladem | 186,44 Kč | ||
| 13 | WASHER 17x26x1 0DM0-061011 | Skladem | 15,54 Kč | ||
| 14 | LOCK WASHER 17x28x1 0DM0-062021 | Skladem | 31,07 Kč | ||
| 15 | DRIVEN GEAR 0DM0-062002 | Skladem | 528,24 Kč | ||
| 16 | BUSHING 20x23x10.5 0DM0-062019 | Skladem | 93,22 Kč | ||
| 17 | WASHER 20 0DM0-062018 | Skladem | 31,07 Kč | ||
| 18 | DRIVEN GEAR 0DM0-062006 | Skladem | 652,53 Kč | ||
| 19 | CIRCLIPS FOR SHAFT 25 0DM0-062017 | Skladem | 15,54 Kč | ||
| 20 | SPLINE WASHER 25x31x1 0DM0-062016 | Skladem | 31,07 Kč | ||
| 21 | DRIBEN GEAR 0DM0-062005 | Skladem | 372,87 Kč | ||
| 22 | SPLINE SLEEVE 25×10 0DM0-062015 | Skladem | 170,90 Kč | ||
| 23 | LOCK WASHER 25 0DM0-062014 | Skladem | 31,07 Kč | ||
| 24 | SPLINE WASHER 25x42x1.6 0DM0-062013 | Skladem | 58,08 Kč | ||
| 25 | DRIVEN GEAR, 33 0DM0-062004 | Skladem | 419,48 Kč | ||
| 26 | BUSHING 25x28x10 0DM0-062012 | Skladem | 124,29 Kč | ||
| 27 | COUNTERSHAFT 0DM0-062001-00001 | Skladem | 652,53 Kč | ||
| 28 | WASHER 25x32x1 0DM0-062011 | Skladem | 15,54 Kč | ||
| 29 | DRIVEN GEAR 0DM0-062007 | Skladem | 807,89 Kč | ||
| 30 | WASHER 22x29x1 0DM0-062008 | Skladem | 31,07 Kč | ||
| 31 | BUSHING 22x25x11 0DM0-062009 | Skladem | 139,83 Kč | ||
| 32 | DRIVEN GEAR, 36 0DM0-062003 | Skladem | 481,63 Kč | ||
| 33 | DRIVE SPROCKET 0DM0-060001-00002 | Skladem | 186,44 Kč | ||
| 34 | GUARD, SPROKET 0DM0-060002 | Skladem | 46,61 Kč | ||
| 35 | BOLT M6x10 30004-060010850 | Skladem | 29,02 Kč | ||
| 36 | COUNTERSHAFT ASSY 0DM0-062000-00001 | Skladem | 4 816,28 Kč | ||
| 37 | MAIN SHAFT ASSY 0DM0-061000 | Skladem | 2 485,82 Kč | ||
