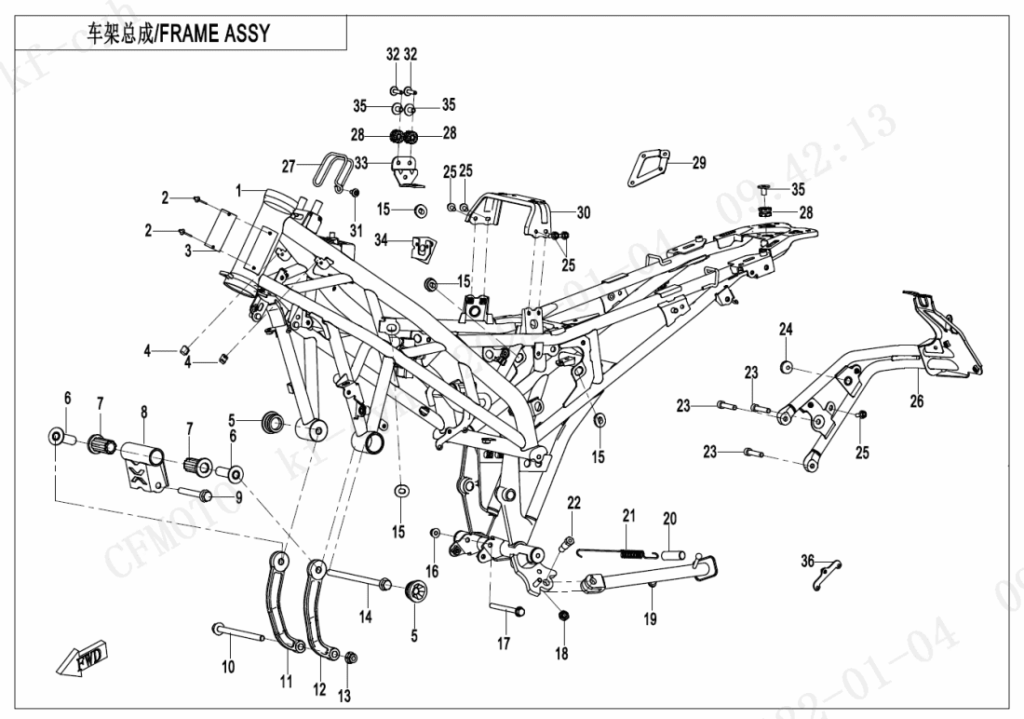

F03 FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAIN FRAME ASSY 6KMV-031000-C000-01-0BY00 | Skladem | 21 750,96 Kč | ||
| 02 | BLIND RIVET 30902-0400820 | Skladem | 15,54 Kč | ||
| 03 | VEHICLE PLATE 6KNV-190011-5000 | Skladem | |||
| 04 | GUARD RUBBER SLEEVE 6GU#-021005-6000 | Skladem | 46,61 Kč | ||
| 05 | FRONT DECO CLASP, FRAME 6GU#-140097-6000 | Skladem | 62,15 Kč | ||
| 06 | T-TYPE BUSHING ASSY 6KMV-030030-2000 | Skladem | 203,28 Kč | ||
| 07 | FRONT DAMPING RUBBER, ENGINE 6KMV-030003-2000 | Skladem | 201,97 Kč | ||
| 08 | FRONT CONNECTING BRACKET, ENGINE 6KMV-030010-2000 | Skladem | 295,19 Kč | ||
| 09 | Šroub 30006-102080810 | Skladem | 62,15 Kč | ||
| 10 | Šroub 30006-102140810 | Skladem | 93,22 Kč | ||
| 11 | RH BRACKET, ENGINE 6KMV-030002-2001 | Skladem | 528,24 Kč | ||
| 12 | LH BRACKET, ENGINE 6KMV-030001-2001 | Skladem | 528,24 Kč | ||
| 13 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 14 | BOLT M10x1.25×180 30006-102180810 | Skladem | 139,83 Kč | ||
| 15 | DAMPER, FRONT FENDER 8080-040064 | Skladem | 15,54 Kč | ||
| 16 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 17 | BOLT M8x90 30006-080090810 | Skladem | 31,07 Kč | ||
| 18 | NUT M10x1.25 30208-102010 | Skladem | 15,54 Kč | ||
| 19 | SIDE BRACKET ASSY 6KMV-030200-B000-0BP00 | Skladem | 310,73 Kč | ||
| 20 | SPRING COLLAR, SIDE STAND A000-030004 | Skladem | 46,61 Kč | ||
| 21 | SPRING KIT, SIDE STAND 6KMV-030060-C000 | Skladem | |||
| 22 | BOLT, SIDE STAND A000-030006 | Skladem | 62,15 Kč | ||
| 23 | SCREW M8x20 30102-080020870 | Skladem | 15,54 Kč | ||
| 24 | RUBBER DAMPER, OUTER GUARD A000-040302 | Skladem | 31,07 Kč | ||
| 25 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 26 | BRACKET, REAR FENDER 6KMV-030300-C000-0BY00 | Skladem | 1 553,64 Kč | ||
| 27 | WIRE CLIP, FRAME 6KMV-030005-C000 | Skladem | |||
| 28 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 29 | BRACKET, REGULATOR 6KMV-030050-C000 | Skladem | |||
| 30 | REAR BRACKET, FUEL TANK 6KMV-030020-C000 | Skladem | |||
| 31 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 32 | INNER HEX SCREW M6x25 6WWV-047002-5000 | Skladem | 15,54 Kč | ||
| 33 | ABS BRACKET MATTE BLACK 6KM0-030040-0B200 | Skladem | 93,22 Kč | ||
| 34 | BRACKET, AIS VALVE 6KMV-030010-9001 | Skladem | 188,76 Kč | ||
| 35 | T-BUSHING KIT 6KMV-000202-C000 | Skladem | |||
| 36 | BRACKET, CANISTER 6KM0-030030-0B200 | Skladem | 46,61 Kč | ||
