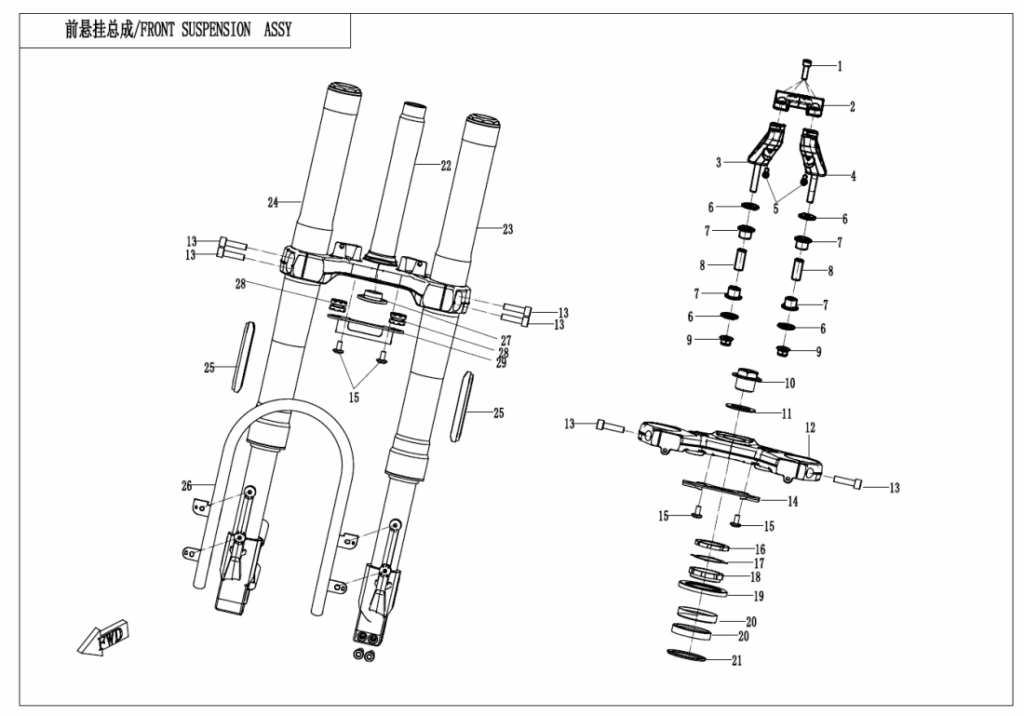

F05 FRONT SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | INNER HEX SCREW M8×25 30102-080025870 | Skladem | 43,52 Kč | ||
| 02 | PRESS COVER, HANDLEBAR 6GU#-050001-6000 | Skladem | 543,77 Kč | ||
| 03 | RH SUPPORTER, HANDLEBAR 6KMV-100050-C001 | Skladem | |||
| 04 | LH SUPPORTER, HANDLEBAR 6KMV-100040-C001 | Skladem | 885,57 Kč | ||
| 05 | SCREW M6x16 30102-060016870 | Skladem | 15,54 Kč | ||
| 06 | Podložka 6KJ0-050005 | Skladem | 31,07 Kč | ||
| 07 | DAMPER RUBBER, UPPER TRIPLE CLAMP 6KJ0-050004 | Skladem | 31,07 Kč | ||
| 08 | LINER, UPPER CONNECTING PLATE 6KJ0-050006-00001 | Skladem | 31,07 Kč | ||
| 09 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 10 | FIXING SCREW, UPPER TRIPLE CLAMP 6NTA-050003 | Skladem | 232,13 Kč | ||
| 11 | Podložka A000-050004 | Skladem | 15,54 Kč | ||
| 12 | UPPER TRIPLE CLAMP 6KMV-050001-C000 | Skladem | 2 765,48 Kč | ||
| 13 | Šroub (vrut) 30102-080030810 | Skladem | 15,54 Kč | ||
| 14 | UPPER BRACKET, HEADLIGHT 6KMV-050110-C000 | Skladem | 130,68 Kč | ||
| 15 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 16 | LOCK NUT 2 A000-050007 | Skladem | 108,75 Kč | ||
| 17 | Podložka A000-050008 | Skladem | 15,54 Kč | ||
| 18 | LOCK NUT 1 A000-050006 | Skladem | 93,22 Kč | ||
| 19 | DUST CAP, UPPER RETAINER A000-050009 | Skladem | 31,07 Kč | ||
| 20 | STEERING BEARING ASSY A000-050100-10000 | Skladem | 419,48 Kč | ||
| 21 | ANTI-DUST CAP, LOWER RETAINING RING A000-050400 | Skladem | 62,15 Kč | ||
| 22 | FORNT FORK AND LOWER TRIPLE CLAMP ASSY 6KJ0-050300-0BP00 | Skladem | 3 837,49 Kč | ||
| 23 | FRONT LH SHOCK ABSORBER 6KMV-050100-C000-M1 | Skladem | 8 436,27 Kč | ||
| 24 | FRONT RH SHOCK ABSORBER 6KMV-050200-C000-M1 | Skladem | 9 244,16 Kč | ||
| 25 | FRONT SIDE REFLECTOR 6KJV-160920-8001-M1 | Skladem | 87,05 Kč | ||
| 26 | BRACKET, FRONT FENDER 6KMV-050020-C000-0BY00 | Skladem | 1 056,48 Kč | ||
| 27 | RUBBER PLUG 2 A000-050011 | Skladem | 46,61 Kč | ||
| 28 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 29 | LOWER BRACKET, HEADLIGHT 6KMV-050310-C000 | Skladem | |||
