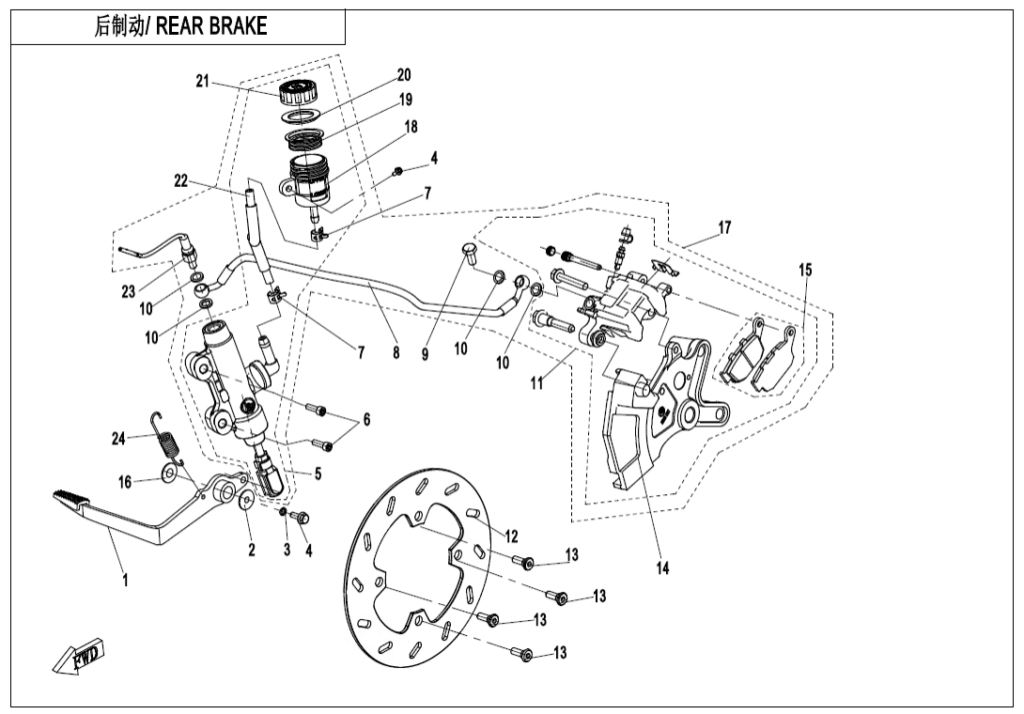

F08-A-2-V2 REAR BRAKE SYSTEM(JJUAN)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR BRAKE PEDAL ASSY 6KJ0-080300-1H300 | Skladem | 449,74 Kč | ||
| 02 | GASKET 17x24x1.6 A000-080006 | Skladem | |||
| 03 | Podložka 30303-060112 | Skladem | 15,54 Kč | ||
| 04 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 05 | MASTER CYLINDER, REAR BRAKE 6KM0-091200 | Skladem | 4 008,39 Kč | ||
| 06 | SCREW M6x22 30102-060022810 | Skladem | 15,54 Kč | ||
| 07 | CLIP A000-080213-2000 | Skladem | 159,72 Kč | ||
| 08 | FLUID PIPE ASSY, REAR BRAKE 6KM0-091010 | Skladem | 1 413,81 Kč | ||
| 09 | BANJO BOLT 2 A000-080103-2000 | Skladem | 188,60 Kč | ||
| 10 | Podložka A000-080102-2000 | Skladem | 15,54 Kč | ||
| 11 | REAR BRAKE CAPLIER ASSY 6KM0-091100-00001 | Skladem | |||
| 12 | REAR BRAKE DISC 6KJ0-080002-10000 | Skladem | 826,95 Kč | ||
| 13 | BOLT, FRONT BRAKE DISC 6KJ0-080005 | Skladem | 31,07 Kč | ||
| 14 | MOUNGTING BRACKET 6KM0-091101 | Skladem | |||
| 15 | REAR BRAKE PAD ASSY 6KJ0-0845A0 | Skladem | 1 118,62 Kč | ||
| 16 | GASKET 215x24x1 A000-080007 | Skladem | |||
| 17 | REAR HYDRAULIC BRAKE 6KM0-091000 | Skladem | |||
| 19 | SEAL RING, FLUID RESERVOIR 6KM0-091203 | Skladem | |||
| 20 | GASKET, FLUID RESERVOIR 6KM0-091202 | Skladem | |||
| 21 | CAP, FLUID RESERVOIR 6KM0-091201 | Skladem | |||
| 22 | FLUID RESERVOIR PIPE 6KM0-091205 | Skladem | |||
| 23 | HYDRAULIC INDUCTION SWITCH 6KJ0-084416 | Skladem | |||
| 24 | RETURN SPRING 6100-080005 | Skladem | 72,60 Kč | ||
