Přední

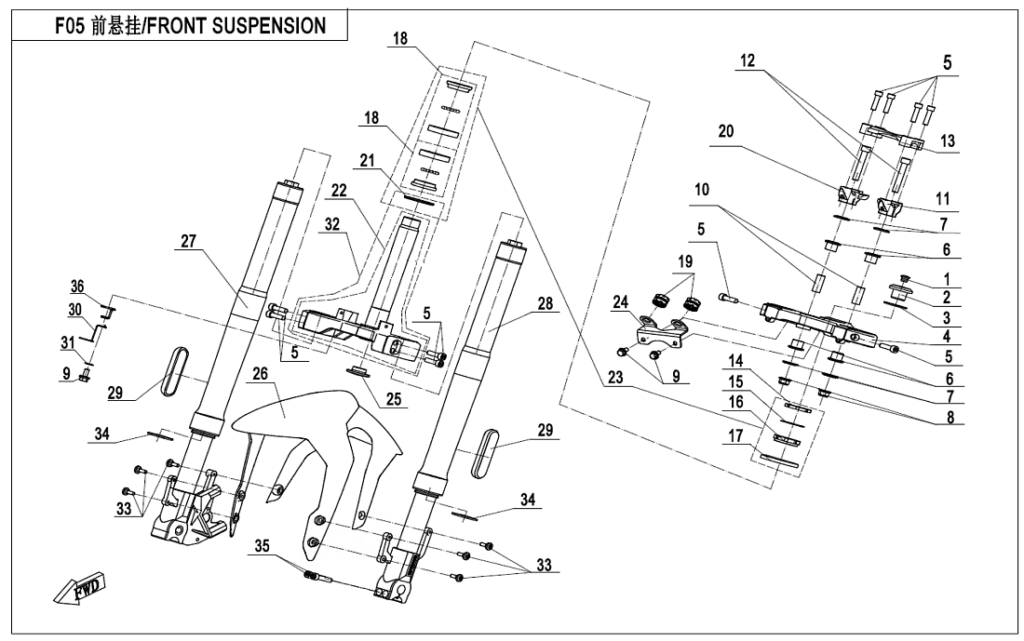

| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RUBBER PLUG 1 A000-050005 | Skladem | 15,54 Kč | ||
| 02 | FIXING SCREW, UPPER TRIPLE CLAMP A000-050003 | Skladem | 188,60 Kč | ||
| 03 | Podložka A000-050004 | Skladem | 15,54 Kč | ||
| 04 | UPPER TRIPLE CLAMP 6KJ0-050001-1H300 | Skladem | 3 107,28 Kč | ||
| 05 | INNER HEX SCREW M8x30 30102-080030860 | Skladem | 31,07 Kč | ||
| 06 | DAMPER RUBBER, UPPER TRIPLE CLAMP 6KJ0-050004 | Skladem | 31,07 Kč | ||
| 07 | Podložka 6KJ0-050005 | Skladem | 31,07 Kč | ||
| 08 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 09 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 10 | LINER, UPPER CONNECTING PLATE 6KJ0-050006-00001 | Skladem | 31,07 Kč | ||
| 11 | LH SUPPORT, HANDLEBAR 6KM0-050002-0H300 | Skladem | 248,58 Kč | ||
| 12 | SCREW M10x1.25×60 30102-102060810 | Skladem | 31,07 Kč | ||
| 13 | HANDLEBAR COVER 6KJ0-050002-1H300 | Skladem | 419,48 Kč | ||
| 14 | LOCK NUT 1 A000-050006 | Skladem | 93,22 Kč | ||
| 15 | Podložka A000-050008 | Skladem | 15,54 Kč | ||
| 16 | LOCK NUT 2 A000-050007 | Skladem | 108,75 Kč | ||
| 17 | DUST CAP, UPPER RETAINER A000-050009 | Skladem | 31,07 Kč | ||
| 18 | STEERING BEARING ASSY A000-050100 | Skladem | 419,48 Kč | ||
| 18 | STEERING BEARING ASSY A000-050100-10000 | Skladem | 419,48 Kč | ||
| 19 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 20 | RH SUPPORT, HANDLEBAR 6KM0-050003-0H300 | Skladem | 248,58 Kč | ||
| 21 | ANTI-DUST CAP, LOWER RETAINING RING A000-050400 | Skladem | 62,15 Kč | ||
| 22 | LOWER TRIPLE CLAMP, FRONT FORK PIPE 6KJ0-050300-0H300 | Skladem | 3 837,49 Kč | ||
| 23 | STEERING BEARING ASSY A000-0501B0 | Skladem | 1 134,16 Kč | ||
| 24 | HEADLIGHT BRACKET 6KM0-030002-0B200 | Skladem | 130,57 Kč | ||
| 25 | RUBBER PLUG 2 A000-050011 | Skladem | 46,61 Kč | ||
| 26 | Přední rám 6KM#-050009-6000-0BM00 | Skladem | 916,65 Kč | ||
| 27 | FRONT SHOCK ABSORBER, RH 6KM0-050200 | Skladem | 8 094,46 Kč | ||
| 28 | FRONT SHOCK ABSORBER, LH 6KM0-050100 | Skladem | 8 094,46 Kč | ||
| 29 | SIDE REFLECTOR 6KJ0-050030 | Skladem | 77,68 Kč | ||
| 30 | LIMIT WIRE, FRONT BRAKE HOSE 6KJ0-050012 | Skladem | 87,12 Kč | ||
| 31 | Podložka 30306-060112 | Skladem | 15,54 Kč | ||
| 32 | RETAINING RING, LOWER TRIPLE CLAMP 6KJ0-0500A0 | Skladem | 3 884,10 Kč | ||
| 33 | MOUNTING SCREW, CHAIN GUARD 6KM0-060002 | Není skladem | |||
| 34 | OIL SEAL 6KJ0-050410 | Skladem | 304,67 Kč | ||
| 35 | SCREW M8x40 30102-080040810 | Skladem | 15,54 Kč | ||
| 36 | FIXING WIRE, FRONT BRAKE HOSE 6KJ0-050011 | Skladem | 46,61 Kč | ||
