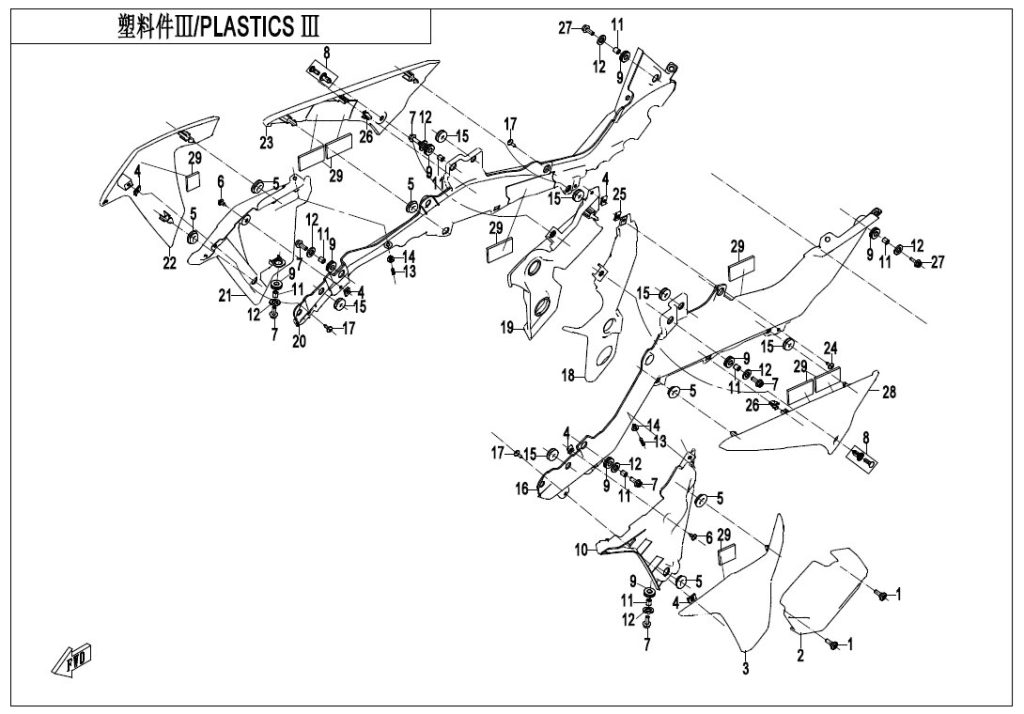

F04-3 PLASTIC 3
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MOUNTING SCREW, CHAIN GUARD 6NQ#-000205-6001 | Skladem | 29,02 Kč | ||
| 02 | DECO COVER, CANISTER 6KM0-043701 | Skladem | 46,61 Kč | ||
| 03 | RESERVOIR LH OUTER PANEL ASSY 6KMV-041200-5000 | Skladem | 543,77 Kč | ||
| 04 | CLIP NUT ST4.8 8080-000002 | Skladem | 15,54 Kč | ||
| 05 | DAMPER, FRONT FENDER 8080-040064 | Skladem | 15,54 Kč | ||
| 07 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 08 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 09 | DAMPER RUBBER 6090-040302 | Skladem | 15,54 Kč | ||
| 10 | LH INNER PANEL, RESERVOIR TANK 6KMV-041201-B001 | Skladem | 319,44 Kč | ||
| 11 | Pouzdro 6090-040303 | Skladem | 15,54 Kč | ||
| 12 | Podložka 30305-060112 | Skladem | 15,54 Kč | ||
| 13 | PLASTIC STUD 8080-041131 | Skladem | 15,54 Kč | ||
| 14 | PLASTIC SCREW 8080-041130 | Skladem | 15,54 Kč | ||
| 15 | RUBBER DAMPER, OUTER GUARD A000-040302 | Skladem | 31,07 Kč | ||
| 16 | LH PANEL ASSY 6KNV-041610-4200 | Skladem | 1 180,77 Kč | ||
| 17 | SELF-TAPPING SCREW ST4.8×13 30110-481130010 | Skladem | 29,02 Kč | ||
| 18 | FRAME LH PANEL 6KMV-043001-2200 | Skladem | |||
| 19 | FRAME RH PANEL 6KMV-043101-4100 | Skladem | |||
| 20 | RH PANEL ASSY 6KMV-041720-4200 | Skladem | 1 196,30 Kč | ||
| 21 | RH INNER PANEL, RESERVOIR TANK 6KMV-041301-B001 | Skladem | 319,44 Kč | ||
| 22 | RESERVOIR RH OUTER PANEL ASSY 6KMV-041300-5000 | Skladem | 543,77 Kč | ||
| 24 | SELF-TAPPING SCREW ST4.2×9.5 30118-420095010 | Skladem | 15,54 Kč | ||
| 25 | CLAMP ST4.2 8010-000002 | Skladem | 15,54 Kč | ||
| 26 | CLASP 8080-000001 | Skladem | 15,54 Kč | ||
| 27 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 28 | LOWER LH DECO STRAP 6KMV-041901-6000 | Skladem | 145,08 Kč | ||
| 29 | SPONGE PAD, FUEL TANK 9010-120008 | Skladem | 31,07 Kč | ||
