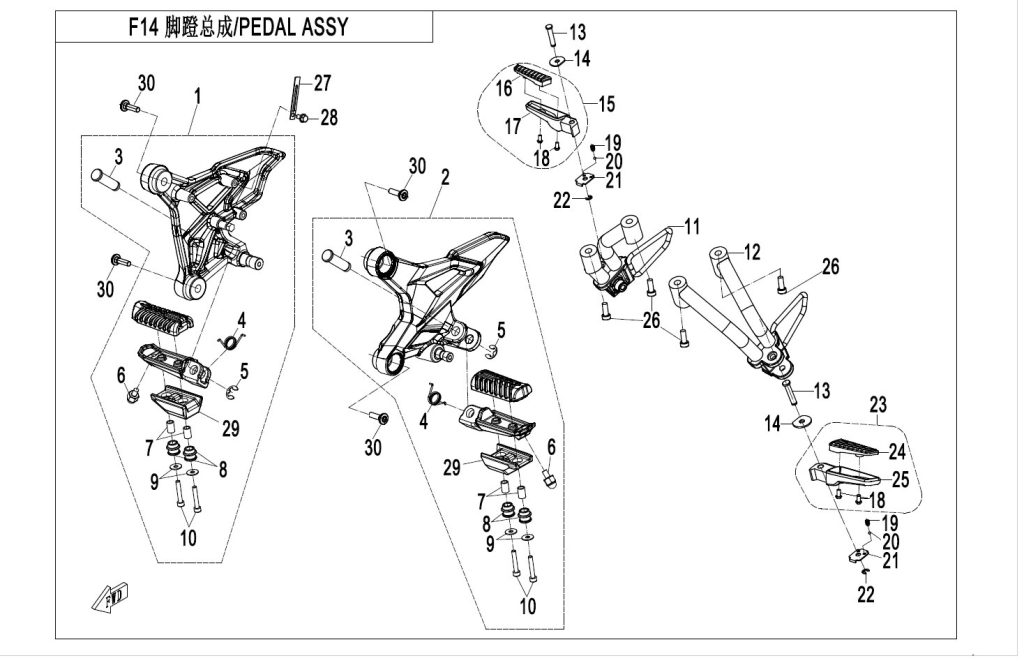

F14 FOOTREST
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRONT RH FOOTREST ASSY 6KMV-144000-B002-0BP00 | Skladem | 2 066,34 Kč | ||
| 02 | FRONT LH FOOTREST ASSY 6KMV-143000-B002-0BP00 | Skladem | 2 066,34 Kč | ||
| 03 | PIN φ12, FRONT FOOTREST 6NQ0-140001 | Skladem | 130,57 Kč | ||
| 04 | SPRING A000-140103-20000 | Skladem | 31,07 Kč | ||
| 05 | SPLIT WASHER 30802-00903 | Skladem | 15,54 Kč | ||
| 06 | LIMIT BOLT 6KM0-130123 | Skladem | 58,03 Kč | ||
| 07 | Pouzdro 6NTG-200419 | Skladem | 101,64 Kč | ||
| 08 | CUSHION RUBBER 6KN0-140002 | Skladem | 31,07 Kč | ||
| 09 | Podložka 30305-050112 | Skladem | 15,54 Kč | ||
| 10 | SCREW M5x30 30102-050030860 | Skladem | 31,07 Kč | ||
| 11 | RH REAR FOOTREST BRACKET 6KMV-140040-3000-0BP00 | Skladem | 1 165,23 Kč | ||
| 12 | LH REAR FOOTREST BRACKET 6KMV-140030-3000-0BP00 | Skladem | 1 258,45 Kč | ||
| 13 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 14 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 15 | RH REAR FOOTREST ASSY 6KJV-140160-8000-0BP00 | Skladem | 605,92 Kč | ||
| 16 | RUBBER ASSY, RH FOOTREST 6KMV-140142-M100 | Skladem | 124,29 Kč | ||
| 17 | RH REAR FOOTREST BRACKET 6KJV-140161-8000-0BP00 | Skladem | 403,95 Kč | ||
| 18 | Šroub (vrut) 30105-050014470 | Skladem | 15,54 Kč | ||
| 19 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 20 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 21 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 22 | CIRCLIP 6 30802-00603 | Skladem | 15,54 Kč | ||
| 23 | LH REAR FOOTREST ASSY 6KJV-140150-8000-0BP00 | Skladem | 605,92 Kč | ||
| 24 | LH FOOTREST RUBBER ASSY 6KMV-140132-M100 | Skladem | 124,29 Kč | ||
| 25 | LH REAR FOOTREST BRACKET 6KJV-140151-8000-0BP00 | Skladem | 403,95 Kč | ||
| 26 | Šroub (vrut) 30102-080030810 | Skladem | 15,54 Kč | ||
| 27 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 28 | INNER HEX SCREW M6x16 6WWV-046802-5000 | Skladem | 15,54 Kč | ||
| 29 | BALANCE BLOCK, FOOTREST 6KM#-140001-8001-0BP00 | Skladem | 348,19 Kč | ||
| 30 | BOLT M8x30 30006-080030810 | Skladem | 15,54 Kč | ||
