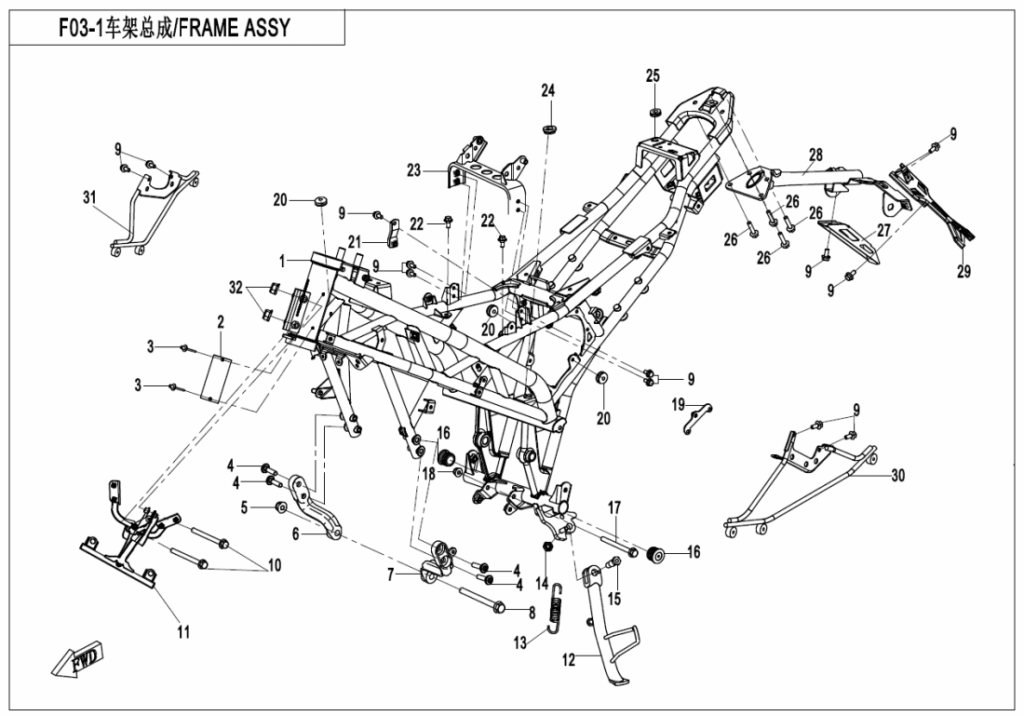

F03-1 FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRAME 6KM#-031000-8004-01-0BP00 | Skladem | |||
| 01 | FRAME 6KM#-031000-8004-01-0VG00 | Skladem | |||
| 01 | FRAME ASSY 6KM#-031000-8005-01-0BP00 | Skladem | |||
| 01 | FRAME ASSY 6KM#-031000-8005-01-0VG00 | Skladem | |||
| 02 | Štítek VIN 6KN#-190012-8000 | Skladem | |||
| 03 | BLIND RIVET 30902-0401320 | Skladem | 15,54 Kč | ||
| 04 | BOLT M8 6KM0-140107 | Skladem | 31,07 Kč | ||
| 05 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 06 | RH MOUNTING BRACKET, ENGINE MATTE BLACK 6KM0-030006-1B200 | Skladem | 683,60 Kč | ||
| 07 | LH MOUNTING BRACKET, ENGINE MATTE BLACK 6KM0-030005-1B200 | Skladem | 668,07 Kč | ||
| 08 | BOLT M10x1.25×110 30006-102110110 | Skladem | 58,03 Kč | ||
| 09 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 10 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 11 | FRONT BRACKET 6KM#-030400-8000-0B200 | Skladem | |||
| 12 | SIDE BRACKET ASSY 6KM0-030310-0B200 | Skladem | 248,58 Kč | ||
| 13 | SPRING, SIDE STAND 6090-030006 | Skladem | |||
| 14 | NUT M10x1.25 30208-102010 | Skladem | 15,54 Kč | ||
| 15 | BOLT, SIDE STAND A000-030006 | Skladem | 62,15 Kč | ||
| 16 | RUBBER PLUG 6KJ0-030503 | Skladem | 31,07 Kč | ||
| 17 | BOLT M8x90 30006-080090810 | Skladem | 31,07 Kč | ||
| 18 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 19 | BRACKET, CANISTER 6KM0-030030-0B200 | Skladem | 46,61 Kč | ||
| 20 | RUBBER DAMPER, OUTER GUARD A000-040302 | Skladem | 31,07 Kč | ||
| 21 | ABS BRACKET MATTE BLACK 6KM0-030050-0B200 | Skladem | 101,64 Kč | ||
| 22 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 23 | REAR MOUNTING ASSY,FUEL TANK MATTE BLACK 6KM0-030100-2B200 | Skladem | 217,51 Kč | ||
| 24 | DAMPER, FRONT FENDER 8080-040064 | Skladem | 15,54 Kč | ||
| 25 | RUBBER SLEEVE 5BY0-040010 | Skladem | 31,07 Kč | ||
| 26 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 27 | SUPPORT PLATE,REAR LICENCE 6KJ0-030601-0BB0 | Skladem | 217,51 Kč | ||
| 28 | BRACKET, REAR FENDER 6NT1-030100-0BB00 | Skladem | 714,67 Kč | ||
| 29 | BRAKCET, REAR LICENSE 6KM#-030110-8000-0BP00 | Skladem | 341,80 Kč | ||
| 30 | LH BRACKET, DEFLECTOR 6KM#-030040-8001-0B200 | Skladem | |||
| 30 | LH BRACKET, DEFLECTOR 6KM#-030040-8002-0B200 | Skladem | 497,16 Kč | ||
| 31 | RH BRACKET, DEFLECTOR 6KM#-030050-8000-0B200 | Skladem | |||
| 31 | RH BRACKET, DEFLECTOR 6KM#-030050-8002-0B200 | Skladem | 435,02 Kč | ||
| 32 | NUT M8 30206-080510 | Skladem | 15,54 Kč | ||
