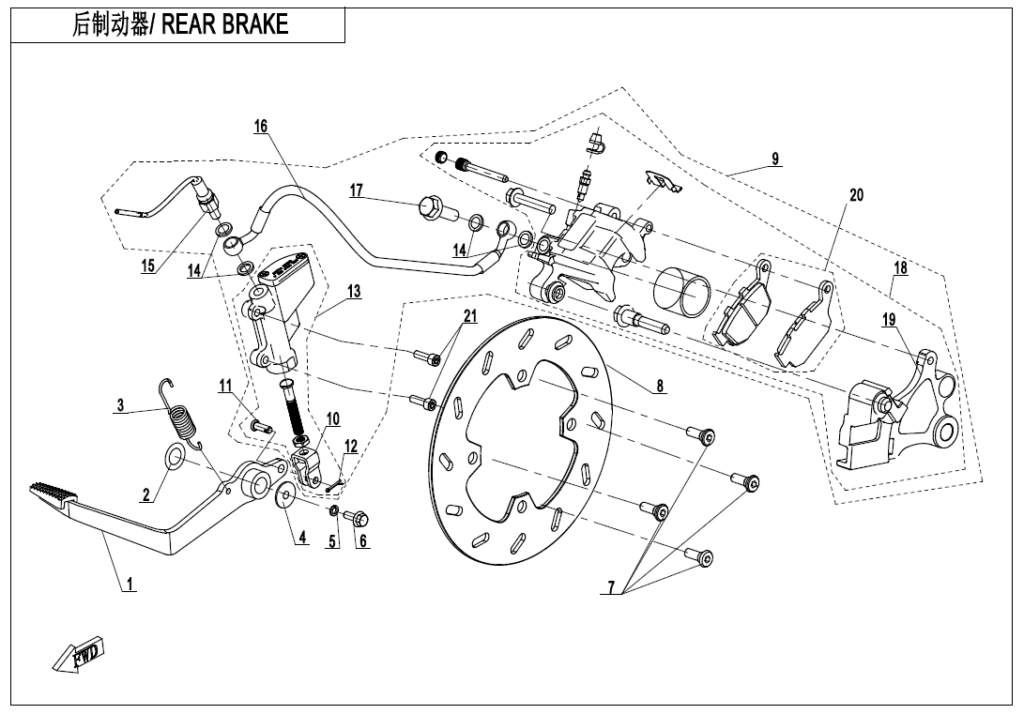

F08-A-2 REAR BRAKE(KAILING)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BRAKE PEDAL ASSY 6KM#-080300-8000-0BP00 | Skladem | 403,95 Kč | ||
| 02 | WASHER 2 A000-080007-10000 | Skladem | 31,07 Kč | ||
| 03 | RETURN SPRING 6100-080005 | Skladem | 72,60 Kč | ||
| 04 | WASHER 1 A000-080006-10000 | Skladem | 31,07 Kč | ||
| 05 | Podložka 30303-060112 | Skladem | 15,54 Kč | ||
| 06 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
| 07 | BOLT, FRONT BRAKE DISC 6KJ0-080005 | Skladem | 31,07 Kč | ||
| 08 | REAR BRAKE DISC 6KJ0-080002-10000 | Skladem | 826,95 Kč | ||
| 09 | REAR HYDRAULIC BRAKE 6KJ0-080200 | Skladem | |||
| 10 | BRACKET, PUSH ROD 6KJ0-080227 | Skladem | |||
| 11 | PIN SHAFT 30904-0802210 | Skladem | |||
| 12 | COTTER PIN 30903-0201610 | Skladem | 15,54 Kč | ||
| 13 | REAR BRAKE PUMP ASSY 6KJ0-080210 | Skladem | |||
| 14 | SEAL GASKET A000-080104 | Skladem | |||
| 15 | HYDRAULIC INDUCTION SWITCH 6KJ0-080270 | Skladem | |||
| 16 | REAR BRAKE FLUID HOSE ASSY 6KJ0-080240 | Skladem | |||
| 17 | BANJO BOLT A000-080103 | Skladem | |||
| 18 | CALIPER, REAR BRAKE 6KJ0-080250 | Skladem | |||
| 19 | MOUNTING BRACKET 6KJ0-080262 | Skladem | |||
| 20 | BRAKE PAD 6KJ0-0802A0 | Skladem | |||
| 21 | SCREW M6x22 30102-060022810 | Skladem | 15,54 Kč | ||
