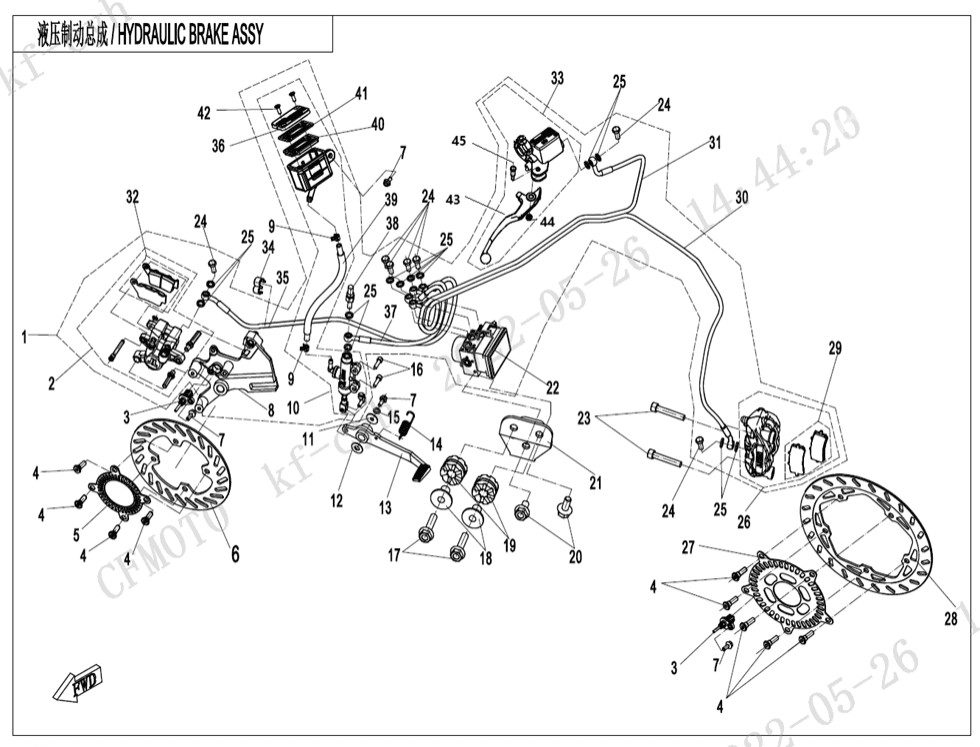

Brzdový systém
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAB HYDRAULIC BRAKE ASSY 6KMV-081000-8501 | Není skladem | |||
| 01 | MAB HYDRAULIC RRAKE ASSY 6KMV-081000-8500 | Není skladem | |||
| 02 | RAER BRAKE CALIPER ASSY 6KM#-091100-8001 | Skladem | 2 703,33 Kč | ||
| 03 | SPEED SENSOR 6KMV-080004-8500-M1 | Skladem | 1 273,98 Kč | ||
| 04 | BOLT, FRONT BRAKE DISC 6KJ0-080005 | Skladem | 31,07 Kč | ||
| 05 | REAR GEAR RING 6NTG-080009 | Skladem | 304,67 Kč | ||
| 06 | REAR BRAKE DISC 6KJ0-080002-10000 | Skladem | 826,95 Kč | ||
| 07 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
| 08 | MOUNTING PLATE 6KM#-091100-8000-20 | Skladem | 699,14 Kč | ||
| 09 | CLIP A000-080213-2000 | Skladem | 159,72 Kč | ||
| 10 | MASTER CYLINDER, REAR BRAKE 6KM0-091200-30000 | Skladem | 1 242,91 Kč | ||
| 11 | WASHER 1 A000-080006-10000 | Skladem | 31,07 Kč | ||
| 12 | WASHER 2 A000-080007-10000 | Skladem | 31,07 Kč | ||
| 13 | BRAKE PEDAL ASSY 6KM#-080300-8000-0BP00 | Skladem | 403,95 Kč | ||
| 14 | RETURN SPRING 6NTG-080005 | Skladem | 46,61 Kč | ||
| 15 | Podložka 30303-060112 | Skladem | 15,54 Kč | ||
| 16 | SCREW M6x22 30102-060022810 | Skladem | 15,54 Kč | ||
| 17 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 18 | RUBBER SLEEVE LINER, FRONT LICENSE BRACKET 5020-031002 | Skladem | 29,02 Kč | ||
| 19 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 20 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 21 | ABS BRACKET MATTE BLACK 6KM0-030040-0B200 | Skladem | 93,22 Kč | ||
| 22 | MBA EXECUTION UNIT 6KMV-081500-B000 | Skladem | 15 645,15 Kč | ||
| 23 | SCREW M10x1.25×60 30102-102060810 | Skladem | 31,07 Kč | ||
| 24 | BOLT, FUEL PIPE 6KM#-080103-8101 | Skladem | 101,56 Kč | ||
| 25 | REATAINER 6KM#-081000-8100-20 | Skladem | 46,61 Kč | ||
| 26 | FRONT BRAKE CALIPER ASSY 6KM#-081200-8100 | Skladem | 3 511,23 Kč | ||
| 27 | INDUCTION PLATE, COUNTER 6KJ0-080004 | Skladem | 279,66 Kč | ||
| 28 | FRONT BRAKE DISC 6KJ0-080001-20000 | Skladem | 1 040,94 Kč | ||
| 29 | FRONT BRAKE PAD ASSY 6KM0-0812B0 | Skladem | 652,53 Kč | ||
| 30 | OIL OUTLET HOSE, FRONT CALIPER 6KM#-081020-8100 | Skladem | 2 066,34 Kč | ||
| 31 | OIL INLET HOSE, FRONT CALIPER 6KM#-081010-8100 | Skladem | 1 538,10 Kč | ||
| 32 | REAR BRAKE PAD ASSY 6KM0-0911A0 | Skladem | 652,53 Kč | ||
| 33 | HAND BRAKE PUMP ASSY 6KMV-081100-B100-M1 | Skladem | 2 019,73 Kč | ||
| 33 | MASTER CYLINDER, HAND BRAKE 6KM#-081100-8100 | Skladem | 1 910,98 Kč | ||
| 34 | RUBBER OIL HOSE CLIP 6KM#-080002-8000 | Skladem | 31,07 Kč | ||
| 35 | OIL OUTLET HOSE, REAR CALIPER 6KM#-081040-8100 | Skladem | 1 118,62 Kč | ||
| 36 | CAP, FLUID RESERVOIR 6KM0-091201-20000 | Skladem | 77,68 Kč | ||
| 37 | OIL INLET HOSE, REAR CALIPER 6KM#-081030-8100 | Skladem | 559,31 Kč | ||
| 38 | HYDRAULIC SWITCH ASSY 6KMV-081700-8500-M1 | Skladem | 714,67 Kč | ||
| 39 | BRAKE FLUID RESERVOIR HOSE 6KM0-091220-30000 | Skladem | 188,76 Kč | ||
| 40 | SEALING GASKET, FLUID RESERVOIR 6KM0-091203-20000 | Skladem | 31,07 Kč | ||
| 41 | SEALING LINER, FLUID RESERVOIR 6KM0-091202-20000 | Skladem | 15,54 Kč | ||
| 42 | SCREW, FLUID RESERVOIR CAP A000-080229-2000 | Skladem | 188,76 Kč | ||
| 43 | BRAKE LEVER 6KM0-081101-20000 | Skladem | 248,00 Kč | ||
| 43 | BRAKE LEVER 6KMV-081100-B000-20 | Skladem | 264,12 Kč | ||
| 44 | NUT M6 30204-060870 | Skladem | 29,02 Kč | ||
| 45 | BOLT, HAND LEVER 6KM0-081116-20000 | Není skladem | |||
