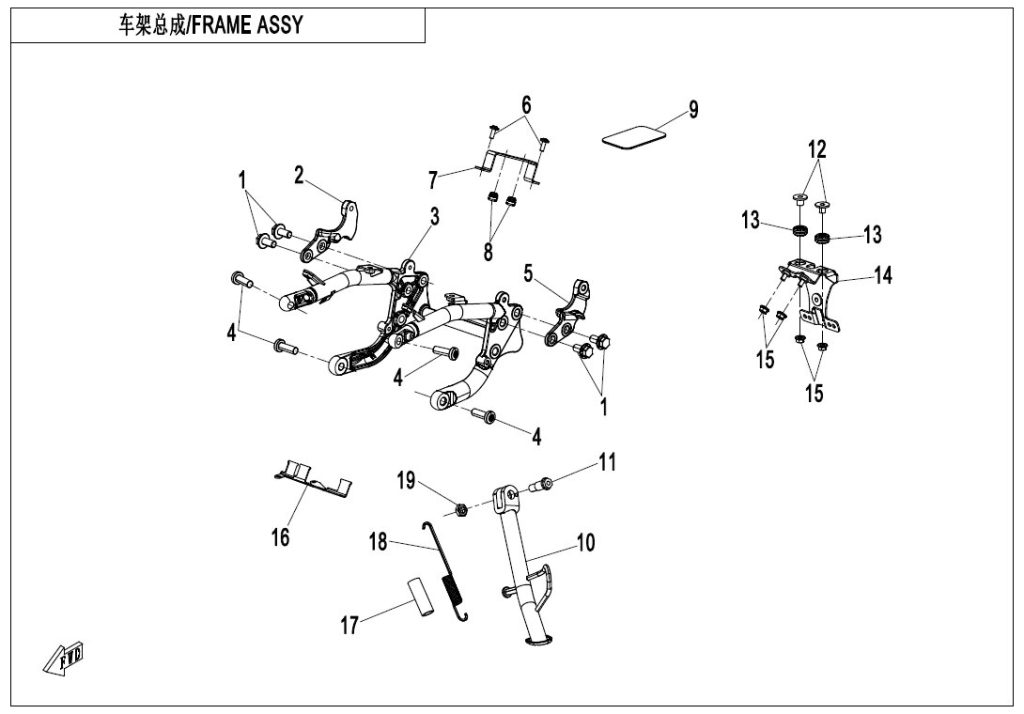

F03-2 FRAME2
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 02 | SEAT RH BRACKET 6AQV-030420-7200-0BP00 | Skladem | 497,16 Kč | ||
| 03 | REAR FRAME ASSY 6AQV-032000-7101-0BP00 | Skladem | |||
| 04 | INNER HEX SCREW M10x30 6WWV-030017-5000 | Skladem | 15,54 Kč | ||
| 05 | SEAT LH BRACKET 6AQV-030410-7200-0BP00 | Skladem | 497,16 Kč | ||
| 06 | INNER HEX SCREW M5x14 6WWV-047102-5000 | Skladem | 15,54 Kč | ||
| 07 | BATTERY PLATE 6AQV-030360-7100 | Skladem | 46,61 Kč | ||
| 08 | RUBBER 6WWV-045801-5000 | Skladem | 15,54 Kč | ||
| 09 | FRAME STICKER 6AQV-041116-1000 | Skladem | 62,15 Kč | ||
| 10 | SIDE STAND ASSY 6AQV-030600-7101-0BP00 | Skladem | 310,73 Kč | ||
| 12 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 13 | RUBBER BUSHING 6WWV-030019-5000 | Skladem | 15,54 Kč | ||
| 14 | TAIL LIGHT BRACKET 6AQV-030370-7100 | Skladem | 261,36 Kč | ||
| 15 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 16 | ECU BRACKET 6AQV-030260-7100 | Skladem | 77,68 Kč | ||
| 17 | SPRING COLLAR, SIDE STAND A000-030004 | Skladem | 46,61 Kč | ||
| 18 | SPRING, SIDE STAND A000-030210 | Skladem | 188,76 Kč | ||
| 19 | NUT M10x1.25 30208-102010 | Skladem | 15,54 Kč | ||
