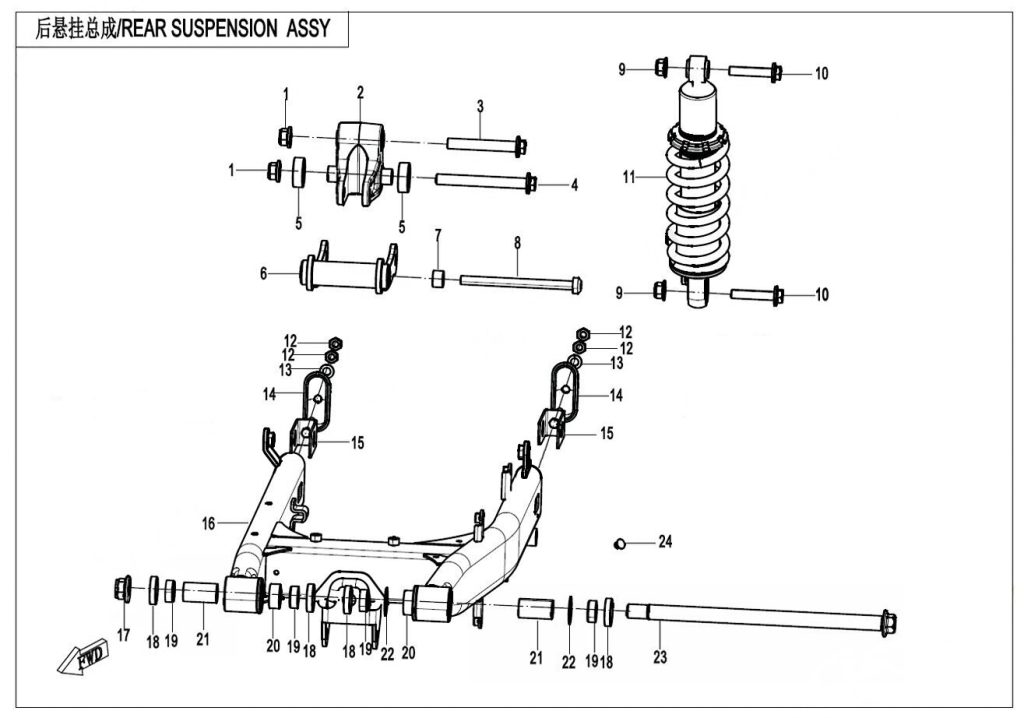

F06 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Matice 30204-122810 | Skladem | 15,54 Kč | ||
| 2 | SWING ARM ASSY 6AQV-060550-1001 | Skladem | |||
| 3 | BOLT M12x80, SWING ARM 6AQV-060008-1002 | Skladem | 101,64 Kč | ||
| 4 | Šroub 30024-122110110 | Skladem | 77,68 Kč | ||
| 5 | RETAINER 6AQV-060504-1000 | Skladem | 46,61 Kč | ||
| 6 | TIE ROD 6AQV-060600-1001 | Skladem | 1 165,23 Kč | ||
| 7 | SPACER, TIE ROD 6AQV-060005-1000 | Skladem | 87,12 Kč | ||
| 8 | BOLT M10x130, TIE ROD 6AQV-060009-1002 | Skladem | 101,64 Kč | ||
| 9 | Matice 30204-102110 | Skladem | 15,54 Kč | ||
| 10 | BOLT M10x50, REAR SHOCK ABSORBER 6AQV-060004-1002 | Skladem | 58,08 Kč | ||
| 11 | REAR SHOCK ABSORBER 6AQV-060100-7101-M2 | Skladem | |||
| 11 | Zadní tlumič 6AQV-060100-7100-M2 | Skladem | 6 401,00 Kč | ||
| 12 | NUT M8 30200-080810 | Skladem | 29,02 Kč | ||
| 13 | Podložka 30306-080112 | Skladem | 15,54 Kč | ||
| 14 | GUARD, CHAIN ADJUSTER 6AQV-060021-7100-0BP00 | Skladem | 203,28 Kč | ||
| 15 | CHAIN ADJUSTER ASSY 6AQV-060020-7100 | Skladem | 155,36 Kč | ||
| 16 | REAR FORK ASSY 6AQV-060300-7202-0BP00 | Skladem | |||
| 17 | NUT M16x1.5 6AQV-060006-1000-M1 | Skladem | 58,08 Kč | ||
| 18 | OIL SEAL 6WWV-060030-5000-10 | Skladem | 46,61 Kč | ||
| 19 | BUSHING, REAR SWING ARM 6WWV-060002-5000 | Skladem | 62,15 Kč | ||
| 20 | NEEDLE BEARING 30403-02280 | Skladem | 130,68 Kč | ||
| 21 | LINER, REAR SWING ARM 6WWV-060003-5000 | Skladem | 62,15 Kč | ||
| 22 | WASHER, REAR SWING ARM 6WWV-060004-5000 | Skladem | 46,61 Kč | ||
| 23 | REAR FORK SHAFT 6AQV-060001-7100 | Skladem | 357,34 Kč | ||
| 24 | RUBBER PLUG, CLUTCH LEVER 6KM#-100002-8000 | Skladem | 15,54 Kč | ||
