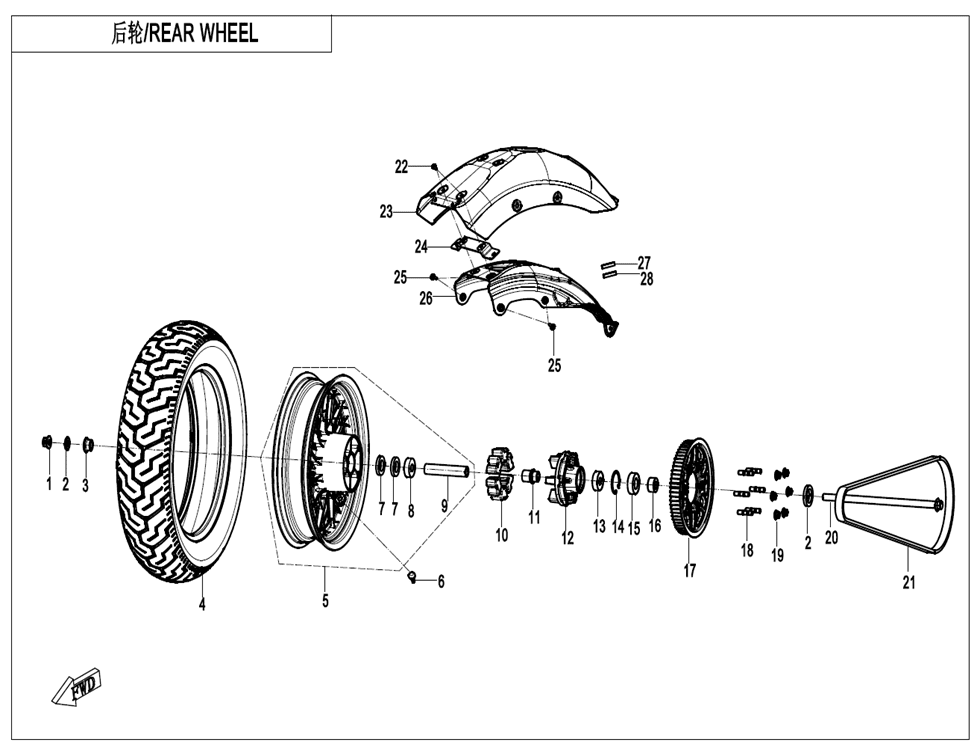

Zadní kolo
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | NUT M16x1.5 6AQV-060006-1000-M1 | Skladem | 58,08 Kč | ||
| 2 | BRAKE REAR WHEEL SHAFT PLAIN WASHER 6AQV-110033-7100 | Skladem | 15,54 Kč | ||
| 3 | RH SHAFT BUSHING, REAR WHEEL 6AQV-110004-1000 | Skladem | 130,68 Kč | ||
| 4 | Pneumatika 30705-1602 | Skladem | 3 462,05 Kč | ||
| 5 | REAR RIM ASSY 6AQV-110200-7100-0BV00 | Skladem | 6 711,72 Kč | ||
| 6 | VALVE, INFLATION 5190-070030-1000 | Skladem | 43,52 Kč | ||
| 7 | Ložisko 30400-01784 | Skladem | 217,80 Kč | ||
| 8 | OIL SEAL 30500-027800N | Skladem | 58,08 Kč | ||
| 9 | REAR RIM MIDDLE SPACER 6AQV-110202-7100 | Skladem | 139,83 Kč | ||
| 10 | DRIVEN PULLEY SEAT DAMPER 6AQV-110004-7100 | Skladem | 87,12 Kč | ||
| 11 | DRIVEN PULLEY SEAT SHAFT SLEEVE 6AQV-110003-7100 | Skladem | 116,16 Kč | ||
| 12 | DRIVEN PULLEY SEAT 6AQV-110501-7100 | Skladem | 6 618,51 Kč | ||
| 13 | BEARING, 6205-2RS 30400-02503 | Skladem | 186,44 Kč | ||
| 14 | CIRCLIP FOR HOLE 52 30800-05205 | Skladem | 31,07 Kč | ||
| 15 | OIL SEAL, FB35x52x8 30501-035800N | Skladem | 62,15 Kč | ||
| 16 | LH SHAFT BUSHING, REAR WHEEL 6AQV-110003-1000 | Skladem | 130,68 Kč | ||
| 17 | DRIVEN PULLEY 6AQV-110009-7101-M1-0BP00 | Skladem | 5 530,96 Kč | ||
| 18 | DRIVEN PULLEY SEAT STUD 6AQV-110034-7100 | Skladem | 43,56 Kč | ||
| 19 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 20 | REAR WHEEL SHAFT 6AQV-110001-7100 | Skladem | 388,41 Kč | ||
| 21 | SYNCHRONOUS BELT 6AQV-110008-7100-M1 | Skladem | 7 289,68 Kč | ||
| 22 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 23 | REAR FENDER OUTER PLATE 6AQV-110021-7101-0BM00 | Skladem | 4 427,87 Kč | ||
| 24 | SEAT SUPPORT 6AQV-030120-7100 | Skladem | 116,16 Kč | ||
| 25 | BOLT M8x20 5HY0-220113 | Skladem | 31,07 Kč | ||
| 26 | REAR FENDER INNER PLATE ASSY 6AQV-110010-7101 | Skladem | 2 874,23 Kč | ||
| 27 | FENDER RUBBER 1 6AQV-110031-7100 | Skladem | 15,54 Kč | ||
| 28 | FENDER RUBBER 2 6AQV-110032-7100 | Není skladem | |||
