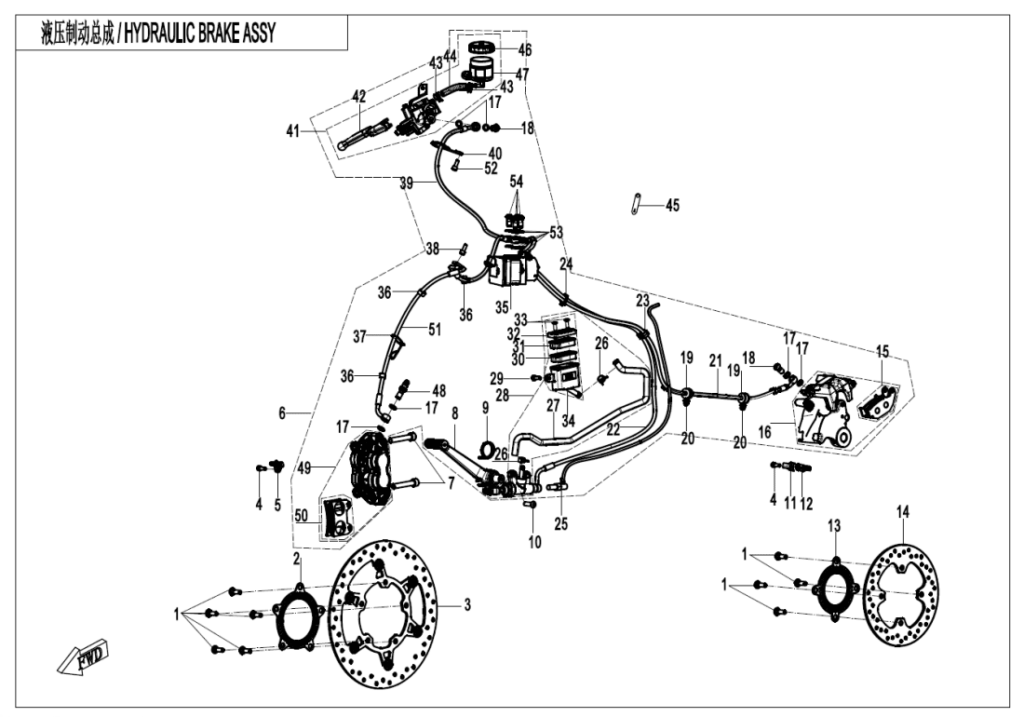

F08 MAB BRAKE ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | BOLT, FRONT BRAKE DISC 6KJ0-080005 | Skladem | 31,07 Kč | ||
| 2 | FRONT RACK 6AQV-080002-1000 | Skladem | 233,05 Kč | ||
| 3 | Přední brzdový kotouč 6AQV-080001-1000-M1 | Skladem | 3 247,11 Kč | ||
| 4 | SCREW M6x16 30102-060016870 | Skladem | 15,54 Kč | ||
| 5 | FRONT RPM SENSOR 6AQV-080004-1000-M2 | Skladem | 699,14 Kč | ||
| 6 | MAB HYDRAULIC BRAKE ASSY 6AQV-081000-7104 | Skladem | |||
| 6 | MAB HYDRAULIC BRAKE ASSY 6AQV-081000-7105 | Skladem | |||
| 7 | SCREW M10x1.25×60 30102-102060810 | Skladem | 31,07 Kč | ||
| 8 | REAR BRAKE PEDAL ASSY 6AQV-080300-7100 | Skladem | 1 134,16 Kč | ||
| 9 | SPRING 6AQV-080400-1000 | Skladem | 31,07 Kč | ||
| 10 | SCREW M8x25 30121-080025160 | Skladem | 31,07 Kč | ||
| 11 | WIRE CLIP, REAR SPEED SENSOR 6AQV-081003-1000 | Skladem | 101,64 Kč | ||
| 12 | REAR RPM SENSOR 6AQV-080005-1000-M2 | Skladem | 668,07 Kč | ||
| 13 | REAR GEAR RING 6NTG-080009 | Skladem | 304,67 Kč | ||
| 14 | REAR BRAKE DISC 6AQV-080006-1000 | Skladem | 854,50 Kč | ||
| 15 | REAR BRAKE PAD ASSY 6KM0-0911B0 | Skladem | 652,53 Kč | ||
| 16 | REAR BRAKE CALIPER 6AQV-081710-1001-M1 | Skladem | 3 122,82 Kč | ||
| 17 | WASHER 6AQV-081000-7100-20 | Skladem | 46,61 Kč | ||
| 18 | BANJO BOLT2 6GU#-081000-6000-23 | Skladem | 139,83 Kč | ||
| 19 | RUBBER OIL HOSE CLIP 6KM#-080002-8000 | Skladem | 31,07 Kč | ||
| 20 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 21 | REAR BRAKE FLUID INTAKE PIPE 6AQV-081900-7100 | Skladem | 1 491,49 Kč | ||
| 22 | REAR BRAKE FLUID OUTLET PIPE 6AQV-081800-7102 | Skladem | 1 848,83 Kč | ||
| 23 | WIRE CLIP 2, BRAKE FLUID HOSE 6L30-080006 | Skladem | 31,07 Kč | ||
| 24 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 25 | REAR BRAKE LIGHT SWITCH 6AQV-081070-7100-M1 | Skladem | 605,92 Kč | ||
| 26 | HOSE CLIP 1 6KM0-091215-20000 | Skladem | |||
| 27 | RESERVOIR PIPE 6AQV-081400-7100-24 | Skladem | 699,14 Kč | ||
| 28 | REAR BRAKE MASTER CYLINDER ASSY 6AQV-081400-7100-M1 | Skladem | 2 330,46 Kč | ||
| 29 | INNER HEX SCREW M6x16 6WWV-046802-5000 | Skladem | 15,54 Kč | ||
| 30 | BACKING PLATE, RESERVOIR TANK 6AQV-081410-1000-23 | Skladem | 31,07 Kč | ||
| 31 | GASKET, RESERVOIR TANK 6AQV-081410-1000-22 | Skladem | 31,07 Kč | ||
| 32 | RESERVOIR TANK COVER 6AQV-081410-1000-24 | Skladem | 145,20 Kč | ||
| 33 | SCREW, RESERVOIR TANK COVER 6AQV-081410-1000-25 | Skladem | 15,54 Kč | ||
| 34 | RESERVOIR TANK 6AQV-081410-1000-21 | Skladem | 450,56 Kč | ||
| 35 | ABS CONTROLLER 6AQV-081300-7100-M1 | Skladem | 14 402,24 Kč | ||
| 35 | ABS CONTROLLER 6AQV-081300-7101-M1 | Skladem | |||
| 36 | CLIP, BRAKE HOSE 6KJ0-080003-00001 | Skladem | 31,07 Kč | ||
| 37 | CLIP,FRONT BRAKE FLUID PIPE 6AQV-081603-7100 | Skladem | 31,07 Kč | ||
| 38 | SCREW M6x12 30102-060012810 | Skladem | 15,54 Kč | ||
| 39 | FRONT BRAKE FLUID OUTLET PIPE 6AQV-081500-7100 | Skladem | 963,26 Kč | ||
| 40 | WIRE CLIP, FLUID INLET HOSE 6AQV-081601-1002 | Skladem | 46,61 Kč | ||
| 41 | FRONT BRAKE MASTER CYLINDER ASSY 6AQV-081100-7100-M1 | Skladem | 4 163,76 Kč | ||
| 41 | FRONT BRAKE MASTER CYLINDER ASSY 6AQV-081100-7101-M1 | Skladem | |||
| 42 | BRAKE LEVER 6AQV-081110-1000-47 | Skladem | 1 289,52 Kč | ||
| 42 | BRAKE LEVER 6AQV-081100-1000-47 | Skladem | 357,34 Kč | ||
| 43 | CLAMP 6AQV-081110-1000-46 | Skladem | |||
| 44 | PIPE 6AQV-081100-4000-27 | Skladem | 699,14 Kč | ||
| 45 | TIE BAND, CLUTCH 6KJ0-100002 | Skladem | 29,02 Kč | ||
| 46 | RESERVOIR TANK 6AQV-081110-1000-53 | Skladem | 512,70 Kč | ||
| 47 | CAP, FLUID RESERVOIR 6AQV-081110-1001-54 | Skladem | 62,15 Kč | ||
| 48 | BANJO BOLT 1 6GU#-081000-6000-22 | Skladem | 261,36 Kč | ||
| 49 | FRONT RH BRAKE CALIPER ASSY 6AQV-081200-7100 | Skladem | 8 731,46 Kč | ||
| 50 | FRONT BRAKE PAD ASSY 6AQV-081200-71A0 | Skladem | 2 035,27 Kč | ||
| 51 | FRONT BRAKE FLUID INLET HOSE 6AQV-081600-7103 | Skladem | 1 833,30 Kč | ||
| 52 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 53 | REATAINER 6KM#-081000-8100-20 | Skladem | 46,61 Kč | ||
| 54 | BOLT, FUEL PIPE 6KM#-080103-8101 | Skladem | 101,56 Kč | ||
