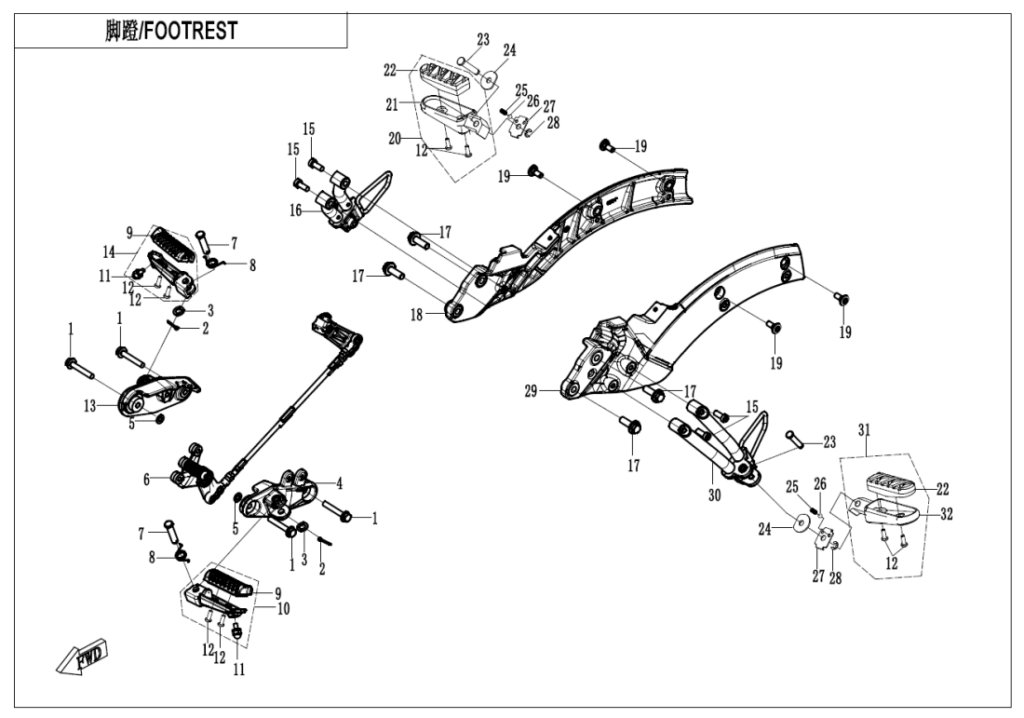

F14 FOOTREST
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Šroub 30006-080050870 | Skladem | 31,07 Kč | ||
| 2 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 3 | Podložka 30300-100112 | Skladem | 15,54 Kč | ||
| 4 | FRONT LH FOOTREST BRACKET 6AQV-140600-7101 | Skladem | 1 211,84 Kč | ||
| 5 | GASKET 0180-334004 | Skladem | 31,07 Kč | ||
| 6 | GEARSHIFT ROD CONNECTING ASSY 6AQV-141000-7100 | Skladem | 2 423,68 Kč | ||
| 7 | PIN SHAFT 6WWV-140141-5000 | Skladem | 31,07 Kč | ||
| 8 | SPRING A000-140103-20000 | Skladem | 31,07 Kč | ||
| 9 | FOOTREST RUBBER 6KMV-140170-8100 | Skladem | 116,16 Kč | ||
| 10 | LH FRONT FOOTREST SEAT ASSY 6KWV-140800-1000-0BP00 | Skladem | 403,95 Kč | ||
| 11 | LIMIT BOLT 6GU#-140202-6000 | Skladem | 31,07 Kč | ||
| 12 | Šroub (vrut) 30105-050014470 | Skladem | 15,54 Kč | ||
| 13 | RH FRONT FOOTREST BRACKET 6AQV-140700-7100 | Skladem | 1 258,45 Kč | ||
| 14 | RH FRONT FOOTREST SEAT ASSY 6KWV-140900-1000-0BP00 | Skladem | 403,95 Kč | ||
| 15 | SCREW M8x20 30102-080020870 | Skladem | 15,54 Kč | ||
| 16 | RH REAR FOOTREST BRACKET ASSY 6AQV-140040-7100-0BP00 | Skladem | 1 040,94 Kč | ||
| 17 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 18 | RH REAR FENDER BRACKET 6AQV-146000-7101-0BP00 | Skladem | 4 117,15 Kč | ||
| 19 | BOLT M8x20 5HY0-220113 | Skladem | 31,07 Kč | ||
| 20 | RUBBER, RH REAR FOOTREST BOARD 6GU#-1400B0-6000-0BP00 | Skladem | 543,77 Kč | ||
| 21 | RH REAR FOOTREST BOARD 6GU#-140051-6000-0BP00 | Skladem | 528,24 Kč | ||
| 22 | RUBBER, REAR FOOTREST BOARD 6GU#-140080-6000 | Skladem | 108,75 Kč | ||
| 23 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 24 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 25 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 26 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 27 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 28 | CIRCLIP 6 30802-00603 | Skladem | 15,54 Kč | ||
| 29 | LH REAR FENDER BRACKET 6AQV-145000-7101-0BP00 | Skladem | 4 117,15 Kč | ||
| 30 | LH REAR FOOTREST BRACKET ASSY 6AQV-140030-7100-0BP00 | Skladem | 1 040,94 Kč | ||
| 31 | RUBBER, LH REAR FOOTREST BOARD 6GU#-1400A0-6000-0BP00 | Skladem | 543,77 Kč | ||
| 32 | LH REAR FOOTREST BOARD 6GU#-140041-6000-0BP00 | Skladem | 497,16 Kč | ||
