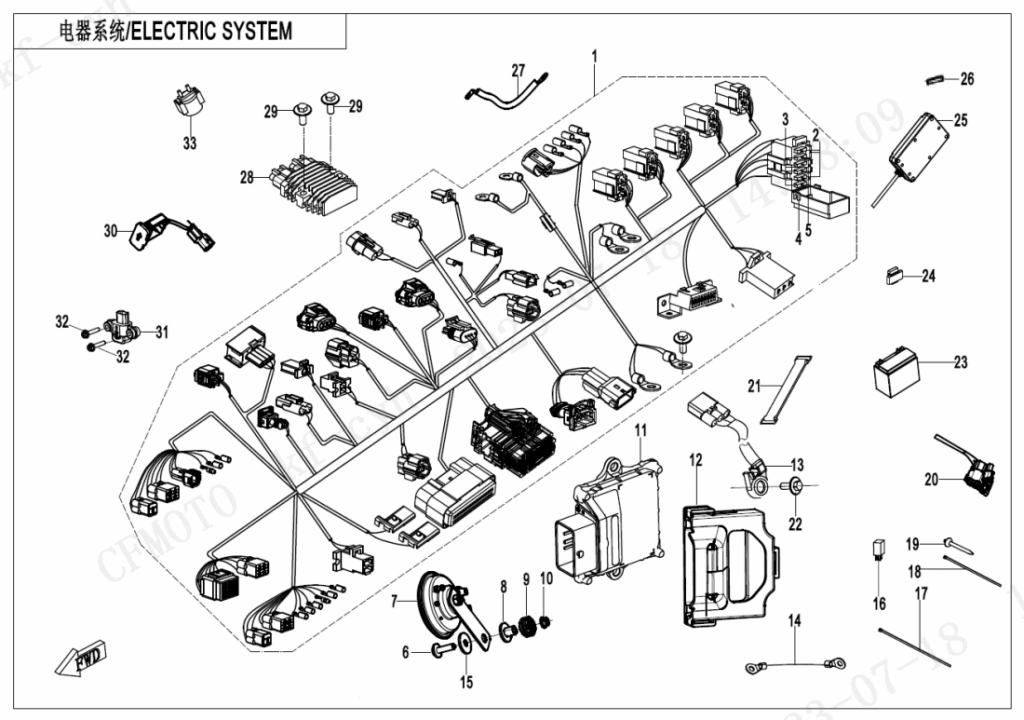

F15 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | MAIN HARNESS 6AQV-150100-7400 | Skladem | 14 402,24 Kč | ||
| 2 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 3 | 25A FUSE 806A-151307 | Skladem | 15,54 Kč | ||
| 4 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 5 | FUSE 5A 8010-151301 | Skladem | 15,54 Kč | ||
| 6 | INNER HEX SCREW M6x25 6WWV-047002-5000 | Skladem | 15,54 Kč | ||
| 7 | HORN 6KWV-150600-1000 | Skladem | 290,40 Kč | ||
| 8 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 9 | RUBBER BUSHING 6WWV-030019-5000 | Skladem | 15,54 Kč | ||
| 10 | NUT M6 30204-060870 | Skladem | 29,02 Kč | ||
| 11 | ECM ASSY 6AQV-001000-7400 | Skladem | 8 063,39 Kč | ||
| 12 | ECU RUBBER 6AQV-001300-7100 | Skladem | 116,16 Kč | ||
| 13 | SIDE STAND ASSY 6KMV-151500-3000 | Skladem | 466,09 Kč | ||
| 14 | STARTER MOTOR POSITIVE 6AQV-150310-7100 | Skladem | 522,72 Kč | ||
| 15 | RETAINER 30301-060470 | Skladem | 15,54 Kč | ||
| 16 | AUXILIARY RELAY 5BY4-150330 | Skladem | 203,11 Kč | ||
| 17 | TIE BAND 9010-150004 | Skladem | 15,54 Kč | ||
| 18 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 19 | TIE BAND 801F-100101 | Skladem | 31,07 Kč | ||
| 20 | LICENSE LIGHT ADAPTER CABLE 6AQV-150176-7100 | Skladem | 699,14 Kč | ||
| 21 | TIE BAND, BATTERY 9RHV-150700-1000 | Skladem | 77,68 Kč | ||
| 22 | BOLT M6x16 8010-090005 | Skladem | 15,54 Kč | ||
| 23 | BATTERY 31021100 | Skladem | 2 469,65 Kč | ||
| 23 | BATTERY 6KWV-151600-1200-M1 | Skladem | |||
| 24 | RUBBER SLEEVE, FLASHER 6100-150500 | Skladem | 15,54 Kč | ||
| 25 | Jednotka T-BOX SN1V-691100-1201-11 | Skladem | 6 943,23 Kč | ||
| 25 | Jednotka T-BOX SN1V-691100-1301-11 | Skladem | 6 943,23 Kč | ||
| 25 | Jednotka T-BOX SN1V-691100-1401-11 | Skladem | 6 943,23 Kč | ||
| 25 | Jednotka T-BOX SN1V-691100-1501-11 | Skladem | |||
| 25 | Jednotka T-BOX SN1V-691100-1601-11 | Skladem | 13 905,08 Kč | ||
| 26 | FENDER RUBBER 1 6AQV-110031-7100 | Skladem | 15,54 Kč | ||
| 27 | BATTERY NEGATIVE 6AQV-150420-7100 | Skladem | 559,31 Kč | ||
| 28 | REGULATOR 6AQV-151000-1000 | Skladem | 1 724,54 Kč | ||
| 29 | SCREW M6x25 30102-060025870 | Skladem | 15,54 Kč | ||
| 30 | USB OUTLET SOCKET FA8V-150600-1001-10 | Skladem | 1 134,16 Kč | ||
| 30 | USB OUTLET SOCKET ASSY FA8V-150600-1000-10 | Skladem | 1 134,16 Kč | ||
| 31 | SENSOR, ROLL-OVER 6KJ0-150600 | Skladem | 652,53 Kč | ||
| 32 | BOLT M5x20 30006-050020810 | Skladem | 15,54 Kč | ||
| 33 | STARTER RELAY 6AQV-150510-7100 | Skladem | 580,80 Kč | ||
