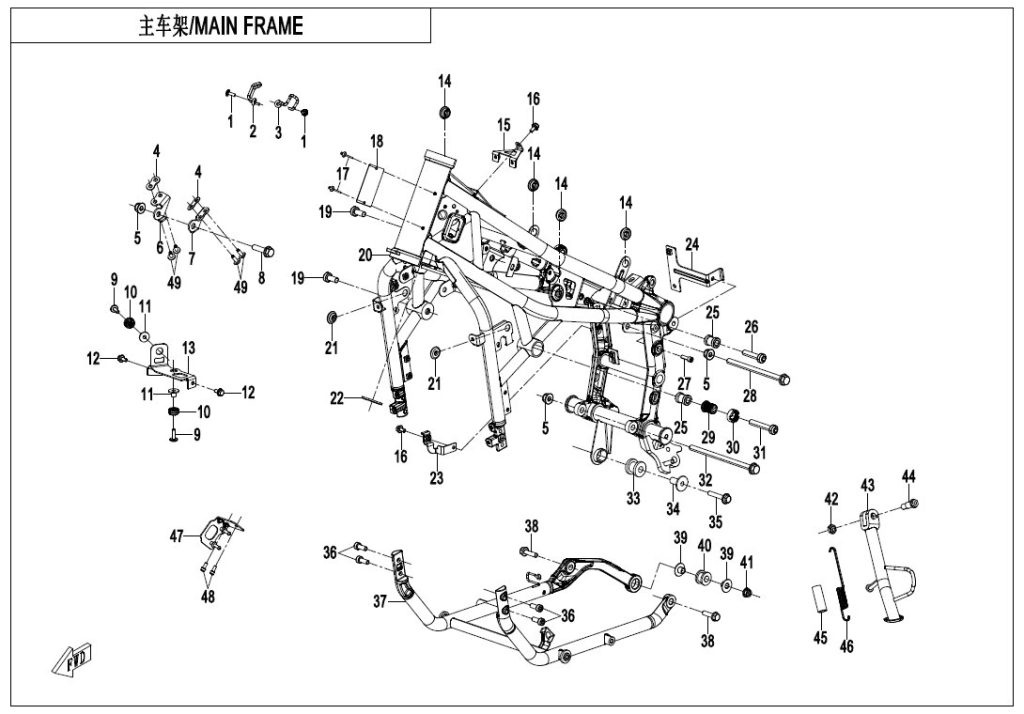

F03-1 MAIN FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | INNER HEX SCREW M5x14 6WWV-047102-5000 | Skladem | 15,54 Kč | ||
| 02 | THROTTLE CABLE CLIP 6AQV-030480-7100 | Skladem | 46,61 Kč | ||
| 03 | CABLE CLIP 6AQV-030470-7100 | Skladem | 46,61 Kč | ||
| 04 | HEADLIGHT RUBBER 6AQV-030460-7100 | Skladem | 31,07 Kč | ||
| 05 | Matice 30204-102110 | Skladem | 15,54 Kč | ||
| 06 | HEADLIGHT RH BRACKET 6KMV-030220-M300 | Skladem | 31,07 Kč | ||
| 07 | HEADLIGHT LH BRACKET 6KMV-030210-M300 | Skladem | 31,07 Kč | ||
| 08 | Šroub 30006-102040810 | Skladem | 31,07 Kč | ||
| 09 | INNER HEX SCREW M6x20 A000-040703 | Skladem | 31,07 Kč | ||
| 10 | RUBBER BUSHING 6WWV-030019-5000 | Skladem | 15,54 Kč | ||
| 11 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 12 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 13 | ABS BRACKET 6AQV-030250-7100 | Skladem | 130,68 Kč | ||
| 14 | RUBBER HEAD 6KWV-041114-1000 | Skladem | 31,07 Kč | ||
| 15 | BRACKET, ROLL-OVER SENSOR 6AQV-030290-7100 | Skladem | 46,61 Kč | ||
| 16 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 17 | BLIND RIVET 30902-0401320 | Skladem | 15,54 Kč | ||
| 18 | VIN PLATE 6AQV-190011-7400 | Skladem | |||
| 18 | VIN PLATE 6AQV-190011-7400-10 | Skladem | |||
| 19 | BOLT M10x22 6L30-030092 | Skladem | 31,07 Kč | ||
| 20 | FRONT FRAME ASSY 6AQV-033000-7104-0BP00 | Skladem | |||
| 21 | M6 RUBBER SLEEVE 6KMV-041112-3000 | Skladem | 15,54 Kč | ||
| 22 | DEAD BOLT PLATE 6AQV-033098-7100 | Skladem | 31,07 Kč | ||
| 23 | FLUID RESERVOIR BRACKET 6AQV-030003-4000 | Skladem | 62,15 Kč | ||
| 24 | REGULATOR BRACKET 6AQV-030350-7100 | Skladem | 130,68 Kč | ||
| 25 | BUSHING, ENGINE 6AQV-030004-1000 | Skladem | 87,12 Kč | ||
| 26 | INNER HEX SCREW M10x45 6WWV-030011-5000 | Skladem | 31,07 Kč | ||
| 27 | INNER HEX SCREW M6×20 30102-060020870 | Skladem | 15,54 Kč | ||
| 28 | BOLT M10x1.25×150 30001-102150110 | Skladem | 101,64 Kč | ||
| 29 | ADJUSTING SCREW, ENGINE 6AQV-030092-1000 | Skladem | 145,20 Kč | ||
| 30 | NUT M18 6NT1-000292 | Skladem | 130,68 Kč | ||
| 31 | INNER HEX SCREW 6AQV-030093-1000 | Skladem | 15,54 Kč | ||
| 32 | BOLT M10x1.25×170 30001-102170110 | Skladem | 108,75 Kč | ||
| 33 | BUSHING, MUFFLER 6KJ0-020003 | Skladem | 46,61 Kč | ||
| 34 | BUSHING, MUFFLER 6KJ0-020004 | Skladem | 46,61 Kč | ||
| 35 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 36 | SCREW M8x20 30102-080020870 | Skladem | 15,54 Kč | ||
| 37 | BOTTOM BRACKET 6AQV-030700-7100-0BP00 | Není skladem | 3 231,57 Kč | ||
| 37 | LOWER BRACKET 6AQV-030700-7101-0BP00 | Skladem | |||
| 38 | BOLT M8x30 30006-080030870 | Skladem | 29,04 Kč | ||
| 39 | Pouzdro 6GU#-020002-6001 | Skladem | 31,07 Kč | ||
| 40 | DAMPER, MUFFLER A000-020004 | Skladem | 46,61 Kč | ||
| 41 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 42 | NUT M10x1.25 30208-102010 | Skladem | 15,54 Kč | ||
| 43 | SIDE STAND ASSY 6AQV-030600-7101-0BP00 | Skladem | 310,73 Kč | ||
| 45 | SPRING COLLAR, SIDE STAND A000-030004 | Skladem | 46,61 Kč | ||
| 46 | SPRING, SIDE STAND A000-030210 | Skladem | 188,76 Kč | ||
| 47 | BRACKET, SECONDARY GULP VALVE 0SQV-140001-1000 | Skladem | 186,44 Kč | ||
| 48 | SCREW M5x12 30102-050012810 | Skladem | 15,54 Kč | ||
| 49 | INNER HEX SCREW M6x16 6WWV-046802-5000 | Skladem | 15,54 Kč | ||
