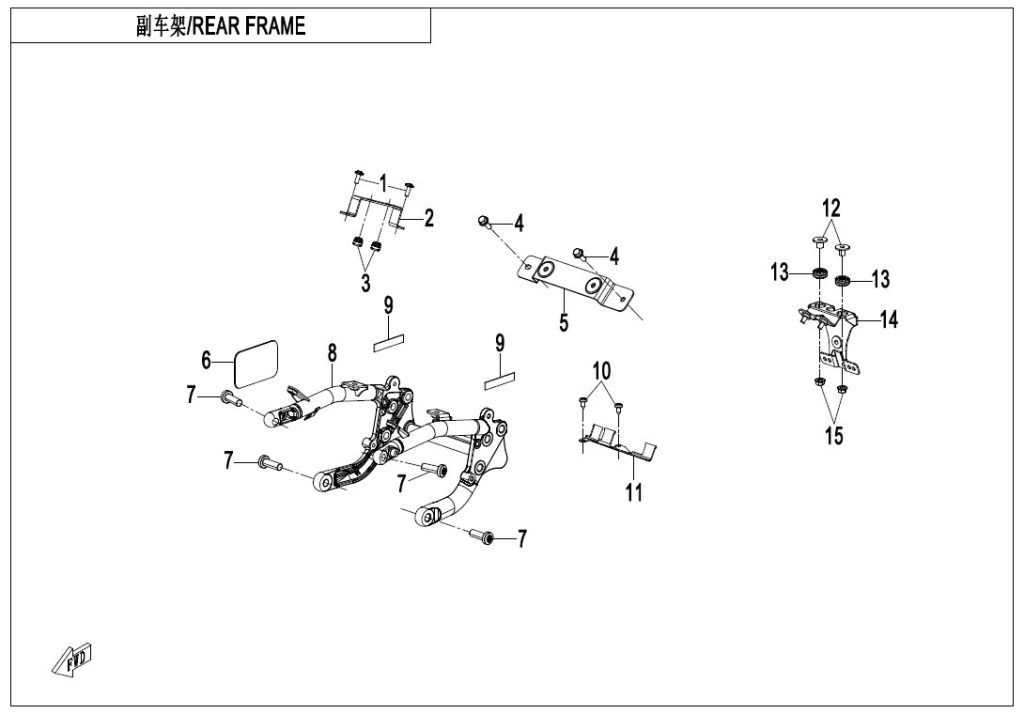

F03-2 REAR FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | INNER HEX SCREW M5x14 6WWV-047102-5000 | Skladem | 15,54 Kč | ||
| 02 | BATTERY PLATE 6AQV-030360-7100 | Skladem | 46,61 Kč | ||
| 03 | RUBBER 6WWV-045801-5000 | Skladem | 15,54 Kč | ||
| 04 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 05 | SEAT SUPPORT 6AQV-030120-7100 | Skladem | 116,16 Kč | ||
| 06 | FRAME STICKER 6AQV-041116-1000 | Skladem | 62,15 Kč | ||
| 07 | INNER HEX SCREW M10x30 6WWV-030017-5000 | Skladem | 15,54 Kč | ||
| 08 | REAR FRAME ASSY 6AQV-032000-7101-0BP00 | Skladem | |||
| 09 | FENDER RUBBER 1 6AQV-110031-7100 | Skladem | 15,54 Kč | ||
| 10 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 11 | ECU BRACKET 6AQV-030260-7100 | Skladem | 77,68 Kč | ||
| 12 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 13 | RUBBER BUSHING 6WWV-030019-5000 | Skladem | 15,54 Kč | ||
| 14 | TAIL LIGHT BRACKET 6AQV-030370-7100 | Skladem | 261,36 Kč | ||
| 15 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
