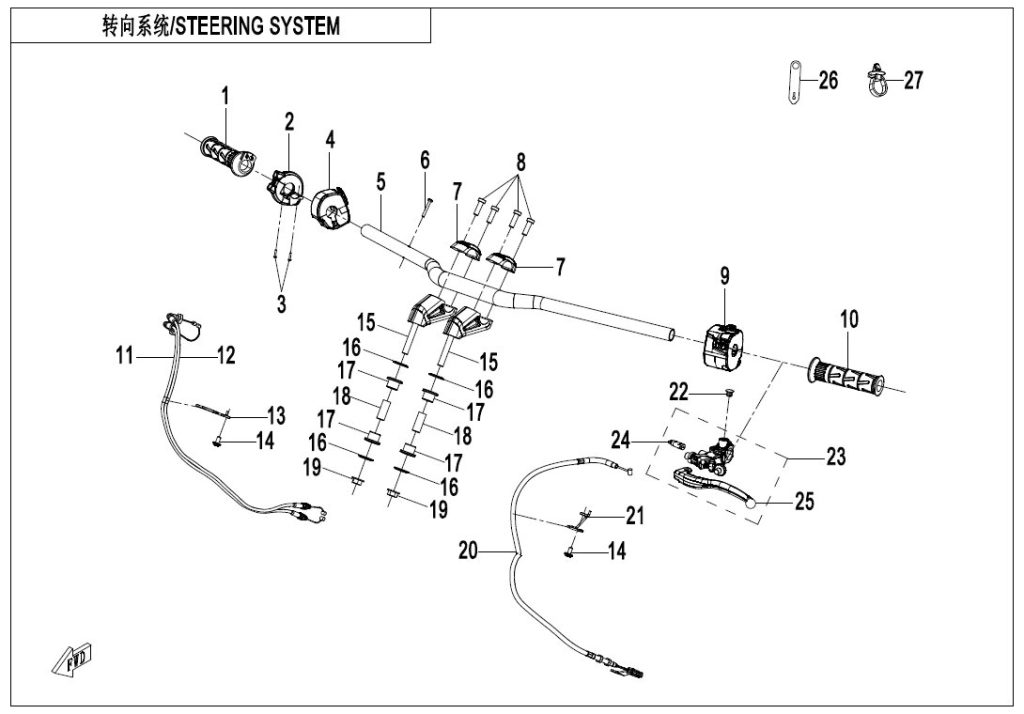

F10 STEERING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RH HAND GRIP ASSY A000-100010-20000 | Skladem | 217,51 Kč | ||
| 02 | Ovladač plynu 6AQV-100700-1003 | Není skladem | 93,22 Kč | ||
| 03 | Šroub (vrut) 30137-250120010 | Skladem | 15,54 Kč | ||
| 04 | RH HANDLEBAR SWITCH ASSY 6AQV-167000-7100 | Skladem | 2 019,73 Kč | ||
| 05 | HANDLEBAR PIPE 6AQV-100100-7100 | Skladem | 1 646,86 Kč | ||
| 06 | SCREW M4x30 30105-040030410 | Skladem | 15,54 Kč | ||
| 07 | HANDLEBAR PRESS COVER 6AQV-100003-7101 | Skladem | 372,87 Kč | ||
| 08 | INNER HEX SCREW M8×25 30102-080025870 | Skladem | 43,52 Kč | ||
| 09 | LH HANDLEBAR SWITCH ASSY 6AQV-166000-7102 | Skladem | |||
| 10 | HAND GRIP, LH A000-100001-10000 | Skladem | 170,90 Kč | ||
| 11 | ADJUSTABLE THROTTLE CABLE 6AQV-100500-7101 | Skladem | |||
| 12 | THROTTLE CABLE 6AQV-100400-7101 | Skladem | |||
| 13 | HANDLEBAR RH CABLE HOOK 6AQV-100602-7101 | Skladem | 46,61 Kč | ||
| 14 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 15 | HANDLEBAR BRACKET ASSY 6AQV-100031-7101 | Není skladem | 885,57 Kč | ||
| 16 | Podložka 6KJ0-050005 | Skladem | 31,07 Kč | ||
| 17 | DAMPER RUBBER, UPPER TRIPLE CLAMP 6KJ0-050004 | Skladem | 31,07 Kč | ||
| 18 | LINER, UPPER CONNECTING PLATE 6KJ0-050006-00001 | Skladem | 31,07 Kč | ||
| 19 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 20 | CLUTCH CABLE 6AQV-100600-7101 | Skladem | |||
| 21 | HANDLEBAR LH CABLE HOOK 6AQV-100601-7101 | Skladem | 46,61 Kč | ||
| 22 | RUBBER PLUG, CLUTCH LEVER 6KM#-100002-8000 | Skladem | 15,54 Kč | ||
| 23 | CLUTCH LEVER ASSY 6WWV-100200-5003 | Skladem | 2 610,12 Kč | ||
| 24 | SWITCH KIT 6GUV-100200-7002-20 | Skladem | 77,68 Kč | ||
| 25 | CLUTCH LEVER 6WWV-100201-5000 | Skladem | 621,46 Kč | ||
| 26 | TIE BAND, CLUTCH 6KJ0-100002 | Skladem | 29,02 Kč | ||
| 27 | TIE BAND 801F-100101 | Skladem | 31,07 Kč | ||
