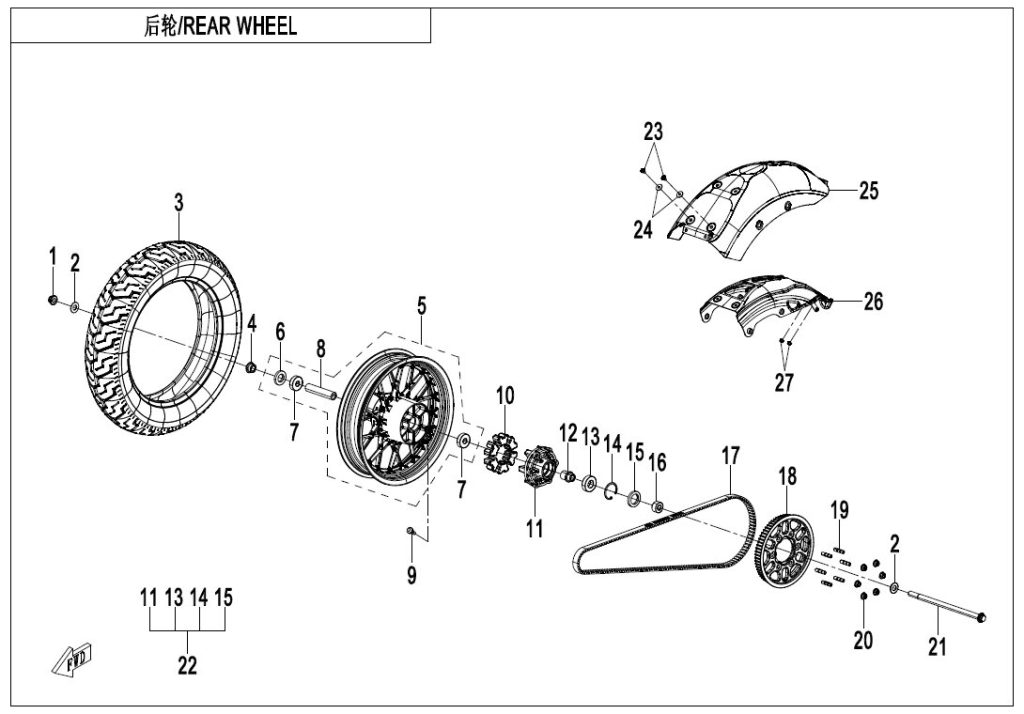

F11 REAR WHEEL
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | NUT M16x1.5 6AQV-060006-1000-M1 | Skladem | 58,08 Kč | ||
| 02 | BRAKE REAR WHEEL SHAFT PLAIN WASHER 6AQV-110033-7100 | Skladem | 15,54 Kč | ||
| 03 | REAR TIRE 30705SH-160200 | Skladem | |||
| 04 | RH SHAFT BUSHING, REAR WHEEL 6AQV-110004-1000 | Skladem | 130,68 Kč | ||
| 05 | REAR RIM ASSY 6AQV-110200-3700-0YH00 | Skladem | |||
| 05 | REAR RIM ASSY 6AQV-110200-3700-0BV00 | Skladem | |||
| 06 | OIL SEAL 30500-027800N | Skladem | 58,08 Kč | ||
| 07 | Ložisko 30400-01784 | Skladem | 217,80 Kč | ||
| 08 | REAR RIM MIDDLE SPACER 6AQV-110202-7100 | Skladem | 139,83 Kč | ||
| 09 | VALVE, INFLATION 5190-070030-1000 | Skladem | 43,52 Kč | ||
| 10 | DRIVEN PULLEY SEAT DAMPER 6AQV-110004-7100 | Skladem | 87,12 Kč | ||
| 11 | DRIVEN PULLEY SEAT 6AQV-110501-7100 | Skladem | 6 618,51 Kč | ||
| 12 | DRIVEN PULLEY SEAT SHAFT SLEEVE 6AQV-110003-7100 | Skladem | 116,16 Kč | ||
| 13 | BEARING, 6205-2RS 30400-02503 | Skladem | 186,44 Kč | ||
| 14 | CIRCLIP FOR HOLE 52 30800-05205 | Skladem | 31,07 Kč | ||
| 15 | OIL SEAL, FB35x52x8 30501-035800N | Skladem | 62,15 Kč | ||
| 16 | LH SHAFT BUSHING, REAR WHEEL 6AQV-110003-1000 | Skladem | 130,68 Kč | ||
| 17 | SYNCHRONOUS BELT 6AQV-110008-7100-M1 | Skladem | 7 289,68 Kč | ||
| 18 | DRIVEN PULLEY 6AQV-110009-7101-M1-0BP00 | Skladem | 5 530,96 Kč | ||
| 19 | DRIVEN PULLEY SEAT STUD 6AQV-110034-7100 | Skladem | 43,56 Kč | ||
| 20 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 21 | REAR WHEEL SHAFT 6AQV-110001-7100 | Skladem | 388,41 Kč | ||
| 22 | DRIVEN PULLEY SEAT ASSEMBLY 6AQV-110500-7100 | Skladem | 2 998,53 Kč | ||
| 23 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 24 | Podložka 30301-060412 | Skladem | 15,54 Kč | ||
| 25 | REAR FENDER OUTER PLATE 6AQV-110021-3700-0BM00 | Skladem | |||
| 25 | REAR FENDER OUTER PLATE 6AQV-110021-3700-0GM00 | Skladem | |||
| 25 | REAR FENDER OUTER PLATE 6AQV-110021-3701-0GM00 | Skladem | |||
| 25 | REAR FENDER OUTER PLATE 6AQV-110021-3701-0BM00 | Skladem | |||
| 26 | REAR FENDER INNER PLATE ASSY 6AQV-110010-3700 | Skladem | |||
| 26 | REAR FENDER INNER PLATE ASSY 6AQV-110010-3701 | Skladem | |||
| 27 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
