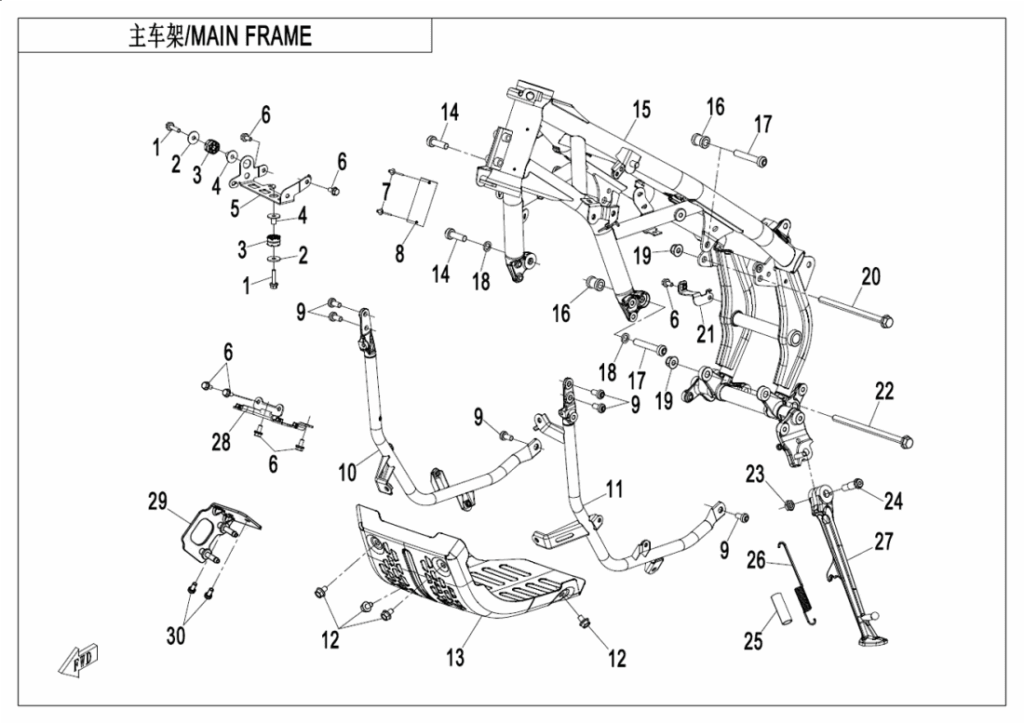

F03-2-B MAIN FRAME(HIGH FENDER)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 02 | Podložka 30301-060412 | Skladem | 15,54 Kč | ||
| 03 | HEADLIGHT BRACKET SLEEVE 6KWV-030003-1000 | Skladem | 29,04 Kč | ||
| 04 | RUBBER SLEEVE LINER, FRONT LICENSE BRACKET 5020-031002 | Skladem | 29,02 Kč | ||
| 05 | ABS BRACKET 6AQV-030002-6000 | Skladem | 116,16 Kč | ||
| 06 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 07 | BLIND RIVET 30902-0401320 | Skladem | 15,54 Kč | ||
| 08 | VIN PLATE 6AQV-190011-6400 | Skladem | 31,07 Kč | ||
| 08 | VIN PLATE 6AQV-190011-6400-10 | Skladem | 31,07 Kč | ||
| 09 | INNER HEX SCREW M8x16 6WWV-030013-5000 | Skladem | 31,07 Kč | ||
| 10 | ENGINE RH BUMPER ASSY 6AQV-030600-6000-0BP00 | Skladem | 1 132,56 Kč | ||
| 11 | ENGINE LH BUMPER ASSY 6AQV-030500-6000-0BP00 | Skladem | 1 132,56 Kč | ||
| 12 | Šroub 30006-080012810 | Skladem | 15,54 Kč | ||
| 13 | LOWER PANEL, ENGINE 6AQV-030003-6000 | Skladem | 3 666,59 Kč | ||
| 14 | Šroub (vrut) 6AQV-030007-6000 | Skladem | 46,61 Kč | ||
| 15 | FRONT FRAME ASSY 6AQV-033000-6000-0BP00 | Skladem | 15 179,06 Kč | ||
| 16 | BUSHING, ENGINE 6AQV-030004-1000 | Skladem | 87,12 Kč | ||
| 17 | BOLT M10x60 6L30-030091 | Skladem | 62,15 Kč | ||
| 18 | NORDLOCK_WASHER_M10 6WWV-030023-5000 | Skladem | 145,20 Kč | ||
| 19 | Matice 30204-102110 | Skladem | 15,54 Kč | ||
| 20 | Šroub 30006-102155110 | Skladem | 101,64 Kč | ||
| 21 | BRAKE FLUID RESERVOIR BRACKET 6AQV-030020-6001 | Skladem | 62,15 Kč | ||
| 22 | BOLT M10x1.25×170 30001-102170110 | Skladem | 108,75 Kč | ||
| 23 | Matice 30208-102810 | Skladem | 15,54 Kč | ||
| 24 | BOLT, SIDE BRACKET 6GU#-030008-6000 | Skladem | 77,68 Kč | ||
| 25 | SPRING COLLAR, SIDE STAND A000-030004 | Skladem | 46,61 Kč | ||
| 26 | SPRING, SIDE STAND A000-030210 | Skladem | 188,76 Kč | ||
| 27 | SIDE STAND 6AQV-030006-6000 | Skladem | 1 382,74 Kč | ||
| 28 | FENDER BRACKET 6AQV-030010-6100 | Skladem | 145,20 Kč | ||
| 29 | BRACKET, SECONDARY GULP VALVE 0SQV-140001-1000 | Skladem | 186,44 Kč | ||
| 30 | SCREW M5x12 30102-050012810 | Skladem | 15,54 Kč | ||
