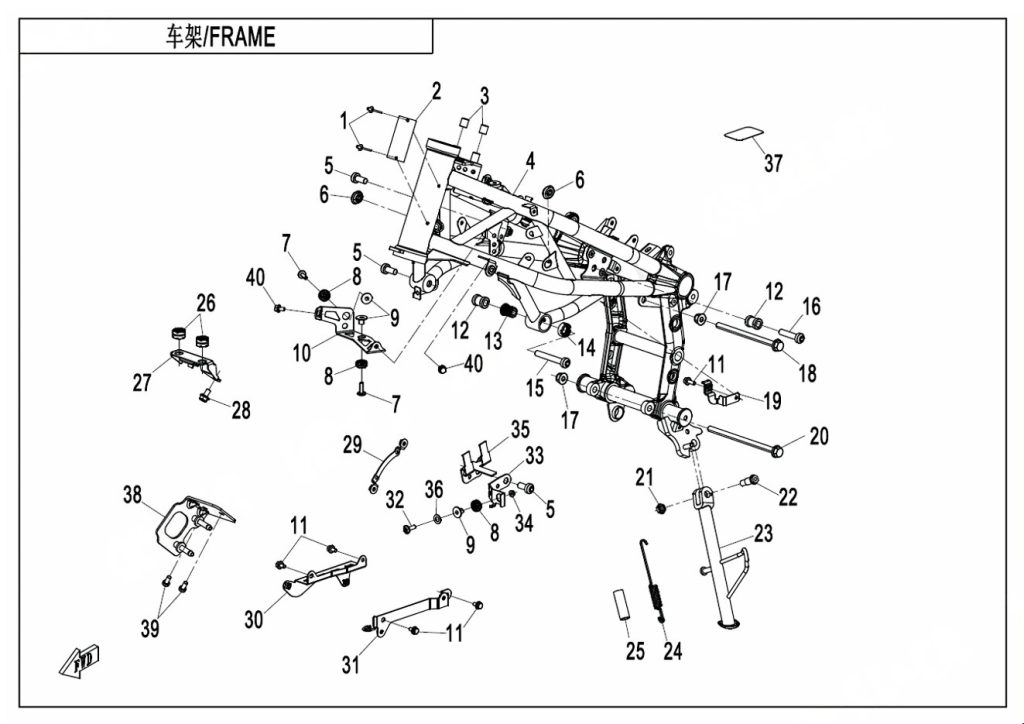

F03-1 FRAME-1
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | SELF-PLUGGING RIVET 4.2X 8 30902-0420820 | Není skladem | 15,54 Kč | ||
| 02 | VIN PLATE 6AQV-190011-5300-10 | Skladem | |||
| 02 | VIN PLATE 6AQV-190011-5300 | Skladem | |||
| 03 | POWER LOCK BUSHING 6KWV-030004-1000 | Není skladem | |||
| 04 | FRONT FRAME ASSY 6AQV-031000-4001-0BP00 | Skladem | 38 607,95 Kč | ||
| 05 | BOLT M10x22 6L30-030092 | Skladem | 31,07 Kč | ||
| 06 | RUBBER HEAD 6KWV-041114-1000 | Skladem | 31,07 Kč | ||
| 07 | INNER HEX SCREW M6x20 6WWV-046902-5000 | Skladem | 15,54 Kč | ||
| 08 | RUBBER BUSHING 6WWV-030019-5000 | Skladem | 15,54 Kč | ||
| 09 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 10 | BRACKET, ABS 6AQV-030010-1000 | Není skladem | |||
| 11 | Šroub 30006-060010810 | Skladem | 43,52 Kč | ||
| 12 | BUSHING, ENGINE 6AQV-030004-1000 | Skladem | 87,12 Kč | ||
| 13 | ADJUSTING SCREW, ENGINE 6AQV-030092-1000 | Skladem | 145,20 Kč | ||
| 14 | NUT M18 6NT1-000292 | Skladem | 130,68 Kč | ||
| 15 | INNER HEX SCREW 6AQV-030093-1000 | Skladem | 15,54 Kč | ||
| 16 | INNER HEX SCREW M10x45 6WWV-030011-5000 | Skladem | 31,07 Kč | ||
| 17 | Matice 30204-102110 | Skladem | 15,54 Kč | ||
| 18 | BOLT M10x1.25×150 30001-102150110 | Skladem | 101,64 Kč | ||
| 19 | FLUID RESERVOIR BRACKET 6AQV-030003-4000 | Skladem | 62,15 Kč | ||
| 20 | BOLT M10x1.25×170 30001-102170110 | Skladem | 108,75 Kč | ||
| 21 | NUT M10x1.25 30208-102010 | Skladem | 15,54 Kč | ||
| 23 | SIDE STAND ASSY 6AQV-030600-4001-0BP00 | Není skladem | 326,26 Kč | ||
| 24 | SPRING, SIDE STAND A000-030210 | Skladem | 188,76 Kč | ||
| 25 | SPRING COLLAR, SIDE STAND A000-030004 | Skladem | 46,61 Kč | ||
| 26 | HEADLIGHT BRACKET SLEEVE 6KWV-030003-1000 | Skladem | 29,04 Kč | ||
| 27 | HEADLIGHT LOWER BRACKET 6AQV-030001-4000 | Není skladem | |||
| 28 | Šroub 30006-080016870 | Skladem | 15,54 Kč | ||
| 29 | RESERVOIR BRACKET 6AQV-030060-4000 | Není skladem | |||
| 30 | RH LOWER PANEL BRACKET, ENGINE 6AQV-030040-4000 | Není skladem | |||
| 31 | LH LOWER PANEL BRACKET, ENGINE 6AQV-030030-4000 | Není skladem | |||
| 32 | INNER HEX SCREW M6x25 6WWV-047002-5000 | Skladem | 15,54 Kč | ||
| 33 | HORN BRACKET 6AQV-030002-4001 | Skladem | |||
| 34 | NUT M6 30204-060870 | Skladem | 29,02 Kč | ||
| 35 | CANISTER ADAPTER PLATE 6AQV-030050-4001 | Skladem | |||
| 36 | RETAINER 30301-060470 | Skladem | 15,54 Kč | ||
| 37 | FRAME STICKER 6AQV-041116-1000 | Skladem | 62,15 Kč | ||
| 38 | BRACKET, SECONDARY GULP VALVE 0SQV-140001-1000 | Skladem | 186,44 Kč | ||
| 39 | SCREW M5x12 30102-050012810 | Skladem | 15,54 Kč | ||
| 40 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
