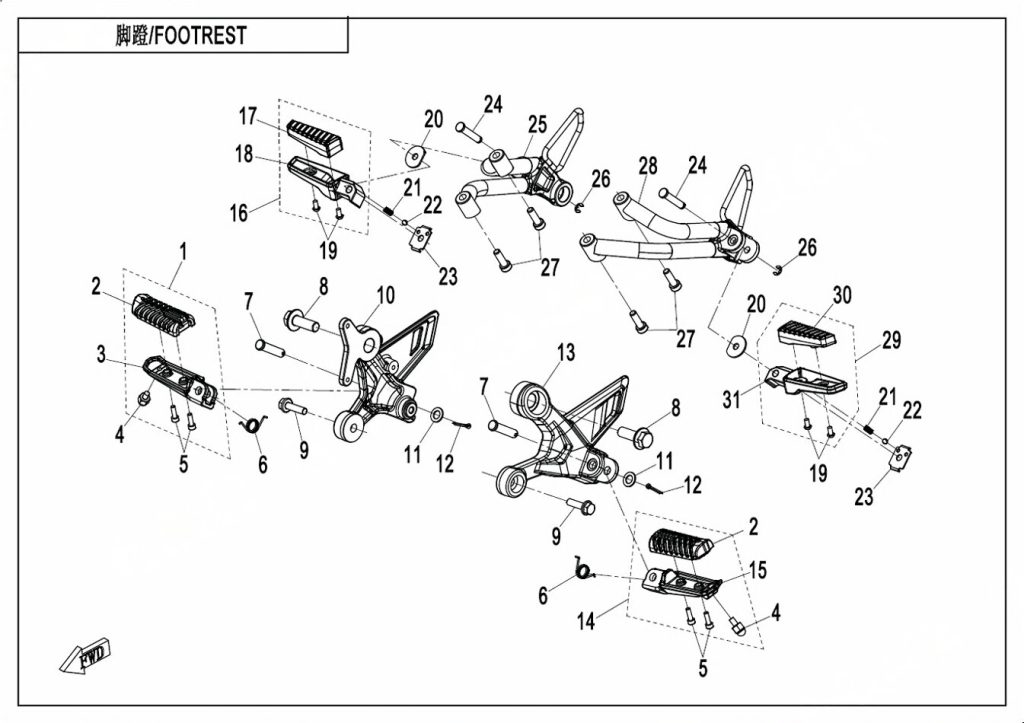

F14 FOOTREST
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BRACKET ASSY, RH FRONT FOOTREST 6KWV-140500-1000-0VR00 | Skladem | 403,95 Kč | ||
| 02 | FOOTREST RUBBER 6KMV-140170-8100 | Skladem | 116,16 Kč | ||
| 03 | RH FRONT FOOTREST SEAT 6KWV-140141-1000-0VR00 | Skladem | 326,26 Kč | ||
| 04 | LIMIT BOLT 6KM0-130123 | Skladem | 58,03 Kč | ||
| 05 | SCREW M5x14 30105-050014410 | Skladem | 15,54 Kč | ||
| 06 | SPRING A000-140103-20000 | Skladem | 31,07 Kč | ||
| 07 | PIN SHAFT 6WWV-140141-5000 | Skladem | 31,07 Kč | ||
| 08 | Šroub 0800-014009-00002 | Skladem | 46,61 Kč | ||
| 09 | BOLT M8x30 30006-080030810 | Skladem | 15,54 Kč | ||
| 10 | BRACKET, RH FRONT FOOTREST 6AQV-140700-4001-0VR00 | Není skladem | |||
| 11 | Podložka 30300-100112 | Skladem | 15,54 Kč | ||
| 12 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 13 | LH FRONT FOOTREST BRACKET 6AQV-140600-4000-0VR00 | Není skladem | |||
| 14 | BRACKET ASSY, LH FRONT FOOTREST 6KWV-140400-1000-0VR00 | Skladem | 403,95 Kč | ||
| 15 | LH FRONT FOOTREST SEAT 6KWV-140131-1000-0VR00 | Skladem | 326,26 Kč | ||
| 16 | REAR RH FOOTREST ASSY 6KJV-1401B0 | Skladem | |||
| 16 | RH REAR FOOTREST ASSY 6KJV-140160-8000-0BP00 | Skladem | 605,92 Kč | ||
| 17 | RUBBER ASSY, RH FOOTREST 6KJ0-140142 | Skladem | 232,13 Kč | ||
| 17 | RUBBER ASSY, RH FOOTREST 6KMV-140142-M100 | Skladem | 124,29 Kč | ||
| 18 | RH REAR FOOTREST BRACKET 6KJV-140161-8000-0BP00 | Skladem | 403,95 Kč | ||
| 19 | Šroub (vrut) 30105-050014470 | Skladem | 15,54 Kč | ||
| 20 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 21 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 22 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 23 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 24 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 25 | RH REAR FOOTREST BRACKET ASSY 6AQV-140040-4000-0BP00 | Není skladem | |||
| 26 | CIRCLIP 6 30802-00603 | Skladem | 15,54 Kč | ||
| 27 | Šroub (vrut) 30102-080025810 | Skladem | 15,54 Kč | ||
| 28 | LH REAR FOOTREST BRACKET ASSY 6AQV-140030-4000-0BP00 | Není skladem | |||
| 29 | LH REAR FOOTREST ASSY 6KJV-140150-8000-0BP00 | Skladem | 605,92 Kč | ||
| 29 | REAR LH FOOTREST ASSY 6KJV-1401A0 | Skladem | |||
| 30 | LH FOOTREST RUBBER ASSY 6KMV-140132-M100 | Skladem | 124,29 Kč | ||
| 30 | RUBBER, LH FOOT PEDAL 6KJ0-140132 | Skladem | 186,44 Kč | ||
| 31 | LH REAR FOOTREST BRACKET 6KJV-140151-8000-0BP00 | Skladem | 403,95 Kč | ||
