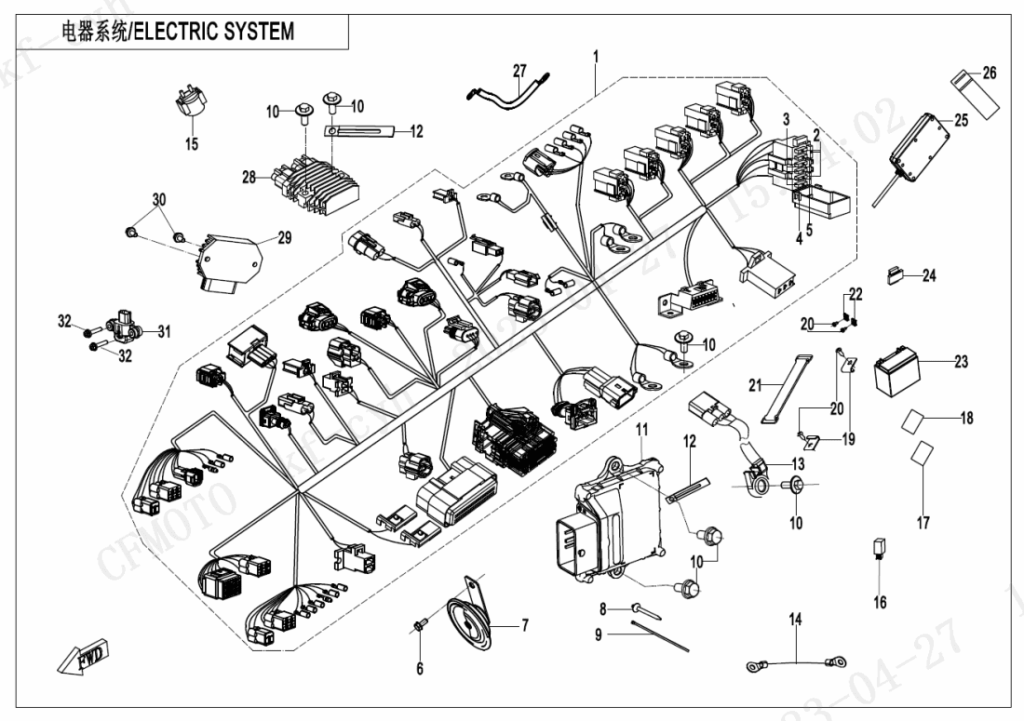

F15 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | MAIN CABLE 6AQV-150100-3200-10 | Skladem | |||
| 1 | MAIN CABLE 6AQV-150100-3200 | Skladem | |||
| 1 | MAIN CABLE 6AQV-150100-3201 | Skladem | |||
| 2 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 3 | 25A FUSE 806A-151307 | Skladem | 15,54 Kč | ||
| 4 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 5 | FUSE 5A 8010-151301 | Skladem | 15,54 Kč | ||
| 6 | Šroub 30006-080016870 | Skladem | 15,54 Kč | ||
| 7 | HORN 6NT1-150600 | Skladem | 232,13 Kč | ||
| 8 | TIE BAND 801F-100101 | Skladem | 31,07 Kč | ||
| 9 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 10 | BOLT M6x16 8010-090005 | Skladem | 15,54 Kč | ||
| 11 | ECU ASSY 6AQV-001000-3200 | Skladem | |||
| 12 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 13 | SIDE STAND ASSY 6KMV-151500-3000 | Skladem | 466,09 Kč | ||
| 14 | POSITIVE CABLE, STARTER MOTOR 6AQV-150310-1000 | Skladem | 481,63 Kč | ||
| 15 | STARTER RELAY 9CR6-150310 | Skladem | 450,56 Kč | ||
| 16 | AUXILIARY RELAY 5BY4-150330 | Skladem | 203,11 Kč | ||
| 17 | FOAM (LH &RH), BATTERY 5270-150001 | Skladem | 15,54 Kč | ||
| 18 | FOAM (FR &RR), BATTERY 5270-150002 | Skladem | 15,54 Kč | ||
| 19 | TIE BAND BRACKET, TOOLS KIT A000-030005 | Skladem | 46,61 Kč | ||
| 20 | SELF-TAPPING SCREW ST4.8×13 30110-481130010 | Skladem | 29,02 Kč | ||
| 21 | TIE BAND,BATTERY 6060-150700 | Skladem | 145,20 Kč | ||
| 22 | CLIP NUT ST4.8 8080-000002 | Skladem | 15,54 Kč | ||
| 23 | BATTERY 31021200 | Skladem | 3 340,33 Kč | ||
| 24 | RUBBER SLEEVE, FLASHER 6100-150500 | Skladem | 15,54 Kč | ||
| 25 | Jednotka T-BOX SN1V-691100-1201-11 | Skladem | 6 943,23 Kč | ||
| 25 | Jednotka T-BOX SN1V-691100-1301-11 | Skladem | 6 943,23 Kč | ||
| 25 | Jednotka T-BOX SN1V-691100-1401-11 | Skladem | 6 943,23 Kč | ||
| 25 | Jednotka T-BOX SN1V-691100-1501-11 | Skladem | |||
| 25 | Jednotka T-BOX SN1V-691100-1601-11 | Skladem | 13 905,08 Kč | ||
| 26 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 27 | NEGATIVE CABLE, BATTERY 6AQV-150420-1001 | Skladem | 668,07 Kč | ||
| 28 | REGULATOR 6NTV-151000-3000 | Skladem | 1 553,64 Kč | ||
| 29 | VEHICLE CONTROL UNIT 6WWV-150410-5000-10 | Skladem | 6 649,58 Kč | ||
| 30 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
| 31 | SENSOR, ROLL-OVER 6KJ0-150600 | Skladem | 652,53 Kč | ||
| 32 | BOLT M5x20 30006-050020810 | Skladem | 15,54 Kč | ||
