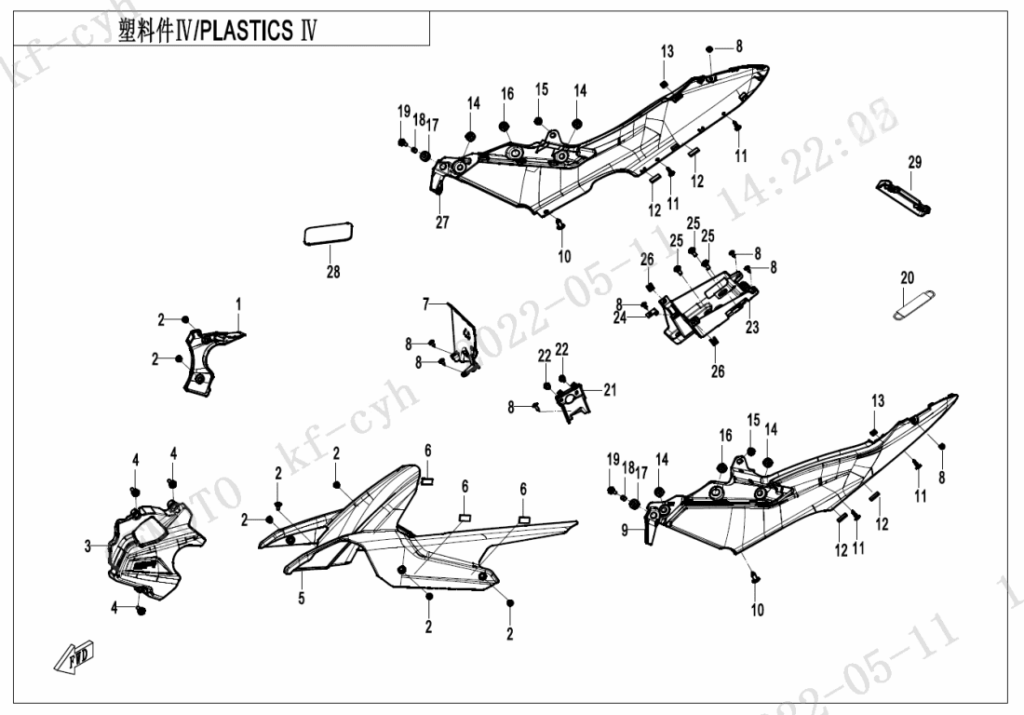

F04-4-V2 PLASTICS 4
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RH DECO COVER, FRAME 6AQV-041103-1000 | Skladem | |||
| 02 | STEPPED SCREW M5 6WWV-046502-5000 | Skladem | 15,54 Kč | ||
| 03 | SMALL SPROCKET GUARD 6AQV-000102-1001 | Skladem | |||
| 03 | SMALL SPROCKET GUARD 6AQV-000102-1002 | Skladem | 248,58 Kč | ||
| 04 | INNER HEX SCREW M6x25 6WWV-047002-5000 | Skladem | 15,54 Kč | ||
| 05 | PANEL, REAR FORK 6AQV-060401-1000 | Skladem | 714,67 Kč | ||
| 07 | HEAT INSULATOR, BATTERY 6AQV-041118-1002 | Není skladem | |||
| 08 | SELF-TAPPING SCREW 30110-481130070 | Skladem | 15,54 Kč | ||
| 09 | LH VEHICLE BODY COVER 6AQV-040701-1001 | Skladem | |||
| 10 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 11 | PLASTIC SCREW 8080-041130 | Skladem | 15,54 Kč | ||
| 12 | SPONGE MAT 6KM#-160420-8001 | Skladem | 15,54 Kč | ||
| 13 | CLIP NUT ST4.8 8080-000002 | Skladem | 15,54 Kč | ||
| 14 | RUBBER DAMPER, OUTER GUARD A000-040302 | Skladem | 31,07 Kč | ||
| 15 | INNER HEX SCREW M6x12 6WWV-046701-5000 | Skladem | 15,54 Kč | ||
| 16 | DAMPER, FRONT FENDER 8080-040064 | Skladem | 15,54 Kč | ||
| 17 | DAMPER RUBBER 6090-040302 | Skladem | 15,54 Kč | ||
| 18 | Pouzdro 6090-040303 | Skladem | 15,54 Kč | ||
| 19 | INNER HEX SCREW M6x20 6WWV-046902-5000 | Skladem | 15,54 Kč | ||
| 20 | TIE BAND,BATTERY 6060-150700 | Skladem | 145,20 Kč | ||
| 21 | SEAT LOCK GUARD 6AQV-041102-1000 | Není skladem | |||
| 22 | INNER HEX SCREW M5x14 6WWV-047102-5000 | Skladem | 15,54 Kč | ||
| 23 | BATTERY BOX 6AQV-041101-1001 | Není skladem | |||
| 24 | TIE BAND BRACKET, TOOLS KIT A000-030005 | Skladem | 46,61 Kč | ||
| 25 | INNER HEX STEPPED SCREW M6x14 6WWV-046602-5000 | Skladem | 15,54 Kč | ||
| 26 | NUT CLIP M5 6KM#-040081-8000-M1 | Skladem | 15,54 Kč | ||
| 27 | RH VEHICLE COVER 6AQV-040702-1001 | Skladem | |||
| 28 | FRAME STICKER 6AQV-041116-1000 | Skladem | 62,15 Kč | ||
| 29 | LIMIT BRACKET, BATTERY 6AQV-041119-1000 | Skladem | |||
