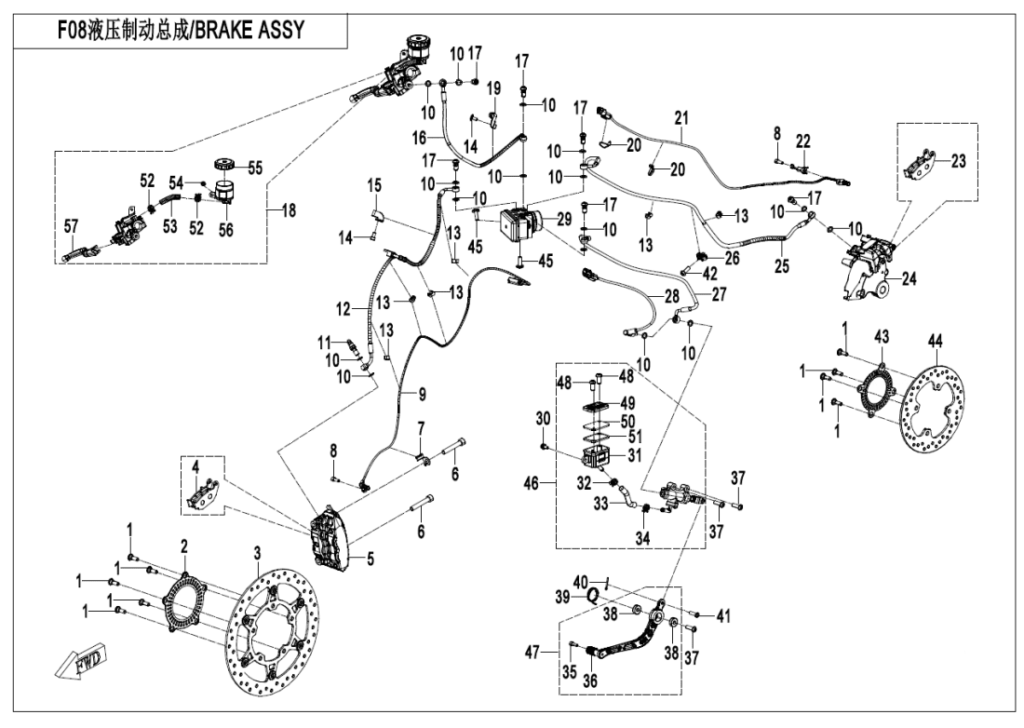

F08-A-2 BRAKE SYSTEM(BOSCH ABS)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT, FRONT BRAKE DISC 6KJ0-080005 | Skladem | 31,07 Kč | ||
| 02 | FRONT RACK 6AQV-080002-1000 | Skladem | 233,05 Kč | ||
| 03 | Přední brzdový kotouč 6AQV-080001-1000-M1 | Skladem | 3 247,11 Kč | ||
| 04 | FRONT BRAKE PAD 6AQV-0812A1 | Skladem | 3 153,89 Kč | ||
| 05 | FRONT BRAKE CALIPER, RH 6AQV-081210-1001-M1 | Skladem | 14 930,48 Kč | ||
| 06 | SCREW M10x1.25×60 30102-102060810 | Skladem | 31,07 Kč | ||
| 07 | WIRE CLIP, FRONT SPEED SENSOR 6AQV-081002-1000 | Skladem | 31,07 Kč | ||
| 08 | SCREW M6x16 30102-060016870 | Skladem | 15,54 Kč | ||
| 09 | FRONT SPEED SENSOR 6AQV-080004-1000-M1 | Není skladem | 1 149,69 Kč | ||
| 10 | Podložka A000-080102-2000 | Skladem | 15,54 Kč | ||
| 11 | BANJO BOLT 1 6GU#-081000-6000-22 | Skladem | 261,36 Kč | ||
| 12 | FRONT BRAKE FLUID INLET HOSE 6AQV-081600-1001 | Skladem | |||
| 13 | CLIP, BRAKE HOSE 6KJ0-080003-00001 | Skladem | 31,07 Kč | ||
| 14 | INNER HEX SCREW M6x12 A000-040702 | Skladem | 15,54 Kč | ||
| 15 | WIRE CLIP, FLUID INLET HOSE 6AQV-081601-1002 | Skladem | 46,61 Kč | ||
| 16 | FLUID OUTLET HOSE, FRONT BRAKE 6AQV-081500-1000 | Skladem | |||
| 17 | BANJO BOLT2 6GU#-081000-6000-23 | Skladem | 139,83 Kč | ||
| 18 | HAND BRAKE MASTER CYLINDER 6AQV-081110-1003-M1 | Skladem | 4 163,76 Kč | ||
| 19 | WIRE CLIP, FLUID OUTLET HOSE 6AQV-081501-1002 | Skladem | |||
| 20 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 21 | SPEED SENSOR, FRONT WHEEL 6L30-080020 | Skladem | 1 149,69 Kč | ||
| 22 | WIRE CLIP, REAR SPEED SENSOR 6AQV-081003-1000 | Skladem | 101,64 Kč | ||
| 23 | REAR BRAKE PAD ASSY 6KM0-0911A0 | Skladem | 652,53 Kč | ||
| 24 | REAR BRAKE CALIPER 6AQV-081710-1001-M1 | Skladem | 3 122,82 Kč | ||
| 25 | FLUID INLET HOSE, REAR BRAKE 6AQV-081900-1000 | Není skladem | |||
| 26 | WIRE CLIP 2, BRAKE FLUID HOSE 6L30-080006 | Skladem | 31,07 Kč | ||
| 27 | REAR BRAKE FLUID OUTLET HOSE 6AQV-081800-1001 | Skladem | |||
| 28 | REAR BRAKE LIGHT SWITCH 6NTV-081070-9300-M1 | Skladem | 1 227,38 Kč | ||
| 29 | ABS CONTROLLER 6AQV-081300-1000-M1 | Skladem | |||
| 29 | ABS CONTROLLER 6AQV-081300-3001-M1 | Skladem | |||
| 30 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 31 | RESERVOIR TANK 6AQV-081410-1000-21 | Skladem | 450,56 Kč | ||
| 32 | HOSE CLIP 1 6KM0-091215-20000 | Skladem | |||
| 33 | RESERVOIR TANK HOSE 6AQV-081410-1000-20 | Skladem | |||
| 34 | CLIP A000-080213-2000 | Skladem | 159,72 Kč | ||
| 35 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 36 | SUPPORTER 6AQV-080301-1000 | Skladem | 279,66 Kč | ||
| 37 | SCREW M8x25 30121-080025160 | Skladem | 31,07 Kč | ||
| 38 | BEARING 8x22x7 30400-00880 | Skladem | 93,22 Kč | ||
| 39 | SPRING 6AQV-080400-1000 | Skladem | 31,07 Kč | ||
| 40 | COTTER PIN 30903-0201640 | Skladem | 15,54 Kč | ||
| 40 | COTTER PIN 6AQV-081410-1000-27 | Skladem | 77,68 Kč | ||
| 41 | PIN SHAFT 30904-0602240 | Skladem | |||
| 41 | PIN SHAFT 6AQV-081410-1000-28 | Skladem | 46,61 Kč | ||
| 42 | INNER HEX SCREW M6x8 6100-120005 | Skladem | 15,54 Kč | ||
| 43 | REAR GEAR RING 6NTG-080009 | Skladem | 304,67 Kč | ||
| 44 | REAR BRAKE DISC 6AQV-080006-1000 | Skladem | 854,50 Kč | ||
| 45 | INNER HEX SCREW M6x20 A000-040703 | Skladem | 31,07 Kč | ||
| 46 | MASTER CYLINDER, REAR BRAKE 6AQV-081410-1001-M1 | Není skladem | 1 584,71 Kč | ||
| 47 | REAR BRAKE FOOT PEDAL ASSY 6AQV-080300-1000-0VR00 | Skladem | 1 382,74 Kč | ||
| 48 | SCREW, RESERVOIR TANK COVER 6AQV-081410-1000-25 | Skladem | 15,54 Kč | ||
| 49 | RESERVOIR TANK COVER 6AQV-081410-1000-24 | Skladem | 145,20 Kč | ||
| 50 | BACKING PLATE, RESERVOIR TANK 6AQV-081410-1000-23 | Skladem | 31,07 Kč | ||
| 51 | GASKET, RESERVOIR TANK 6AQV-081410-1000-22 | Skladem | 31,07 Kč | ||
| 52 | CLAMP 6AQV-081110-1000-46 | Skladem | |||
| 53 | FLUID HOSE 6AQV-081110-1000-45 | Skladem | |||
| 54 | BOLT, RESERVOIR TANK 6AQV-081110-1000-35 | Skladem | |||
| 55 | CAP, FLUID RESERVOIR 6AQV-081110-1001-54 | Skladem | 62,15 Kč | ||
| 56 | RESERVOIR TANK 6AQV-081110-1000-53 | Skladem | 512,70 Kč | ||
| 57 | BRAKE LEVER 6AQV-081110-1000-47 | Skladem | 1 289,52 Kč | ||
