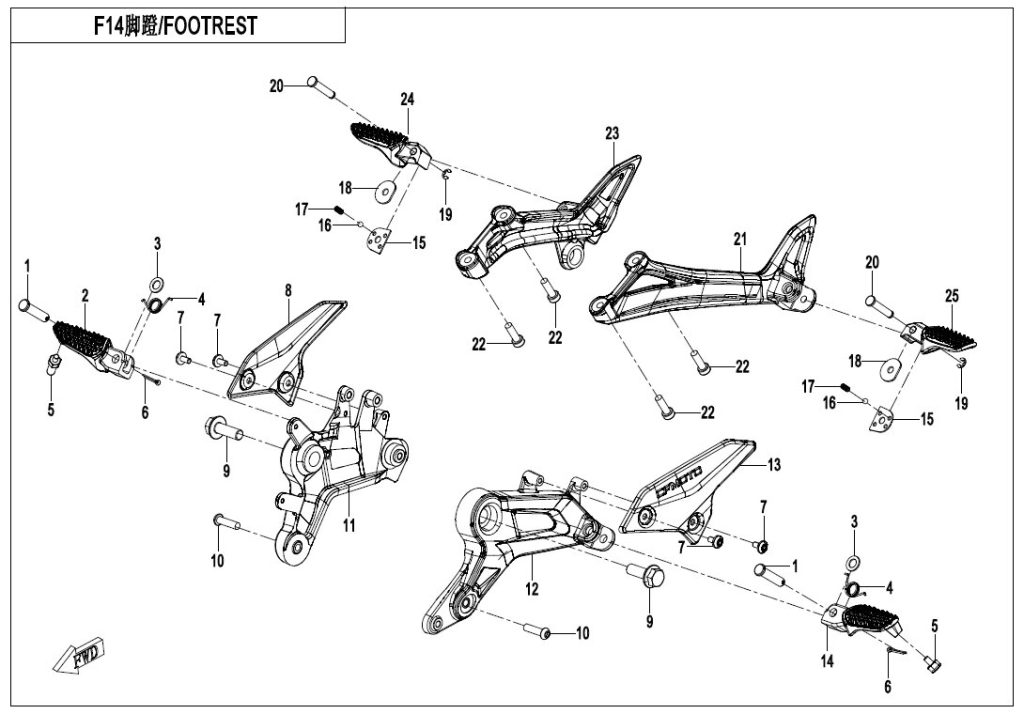

F14 FOOTREST
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | PIN SHAFT 6WWV-140141-5000 | Skladem | 31,07 Kč | ||
| 02 | FRONT RH FOOTREST SEAT 6AQV-140900-1002-0VR00 | Skladem | 590,38 Kč | ||
| 03 | Podložka 30300-100112 | Skladem | 15,54 Kč | ||
| 04 | SPRING A000-140103-20000 | Skladem | 31,07 Kč | ||
| 05 | LIMIT SCREW 6AQV-140620-1000 | Skladem | 116,16 Kč | ||
| 06 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 07 | INNER HEX SCREW M6x12 6WWV-046703-5000 | Skladem | 15,54 Kč | ||
| 08 | PANEL, RH FRONT FOOTREST BRACKET 6AQV-140710-1000-0VR00 | Skladem | 574,85 Kč | ||
| 09 | Šroub 0800-014009-00002 | Skladem | 46,61 Kč | ||
| 10 | BOLT M8x30 30006-080030810 | Skladem | 15,54 Kč | ||
| 11 | BRACKET, RH FRONT FOOTREST 6AQV-142700-1000 | Skladem | 2 933,04 Kč | ||
| 11 | FRONT RH FOOTREST BRACKET ASSY 6AQV-142700-1001 | Skladem | |||
| 12 | FRONT LH FOOTREST BRACKET ASSY 6AQV-142600-1002 | Skladem | |||
| 12 | LH FRONT FOOTREST BRACKET ASSY 6AQV-142600-1001 | Skladem | 5 189,16 Kč | ||
| 13 | PANEL, LH FRONT FOOTREST BRACKET 6AQV-140610-1000-0VR00 | Skladem | 574,85 Kč | ||
| 14 | FRONT LH FOOTREST SEAT 6AQV-140800-1002-0VR00 | Skladem | 590,38 Kč | ||
| 15 | LOCATING GASKETⅠ 6HVV-140006-1000 | Skladem | |||
| 16 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 17 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 18 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 19 | CIRCLIP 6 30802-00603 | Skladem | 15,54 Kč | ||
| 20 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 21 | LH REAR FOOTREST BRACKET 6AQV-140200-1001-0D300 | Skladem | 1 988,66 Kč | ||
| 21 | REAR LH FOOTREST BRACKET 6AQV-140200-1002-0D300 | Skladem | |||
| 22 | SCREW 8AJV-140004-1000 | Skladem | |||
| 23 | RH REAR FOOTREST BRACKET 6AQV-140300-1002-0D300 | Skladem | 1 165,23 Kč | ||
| 23 | RH REAR FOOTREST BRACKET 6AQV-140300-1001-0D300 | Není skladem | 1 988,66 Kč | ||
| 24 | REAR RH FOOTREST SEAT 6AQV-140500-1002-0VR00 | Skladem | 590,38 Kč | ||
| 25 | REAR LH FOOTREST SEAT 6AQV-140400-1002-0VR00 | Skladem | 590,38 Kč | ||
