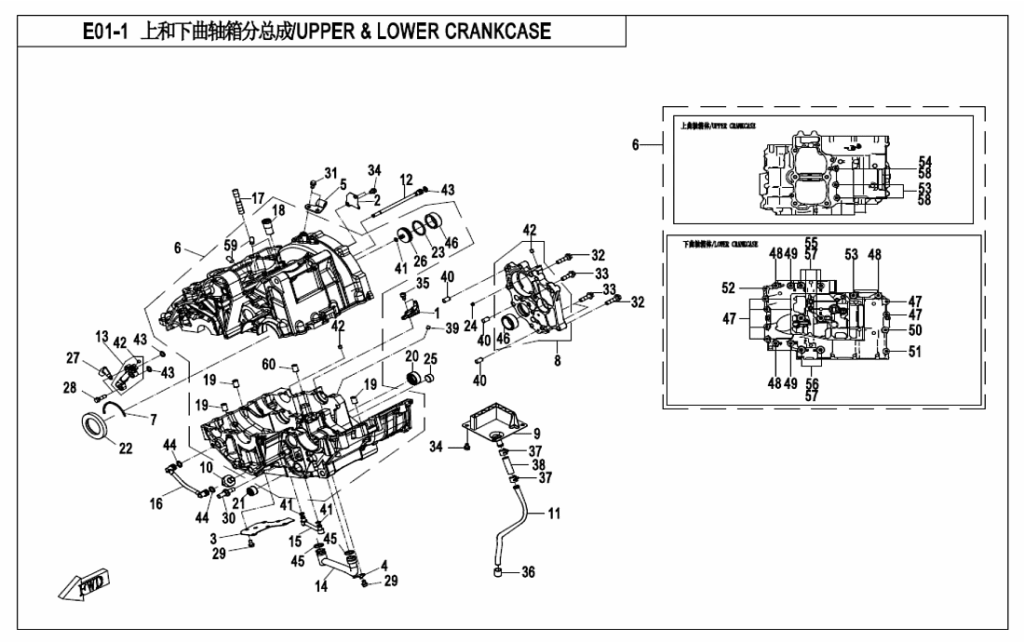

Horní a spodní kliková skříň
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | PLATE, OIL SHIELDING 0700-012300 | Skladem | 62,15 Kč | ||
| 02 | GUARD, BREATHER 0700-011104 | Skladem | 31,07 Kč | ||
| 03 | PLATE, LOWER CRANKCASE 0700-012006 | Skladem | 46,61 Kč | ||
| 04 | PLATE, OIL PIPE1 0700-070001 | Skladem | 15,54 Kč | ||
| 05 | HOLDER, CLUTCH CABLE 0700-010002 | Skladem | 31,07 Kč | ||
| 06 | CRANKCASE ASSY 0700-0100A0-1B20 | Skladem | 19 669,08 Kč | ||
| 07 | RING 62, BEARING 0700-010001 | Skladem | 31,07 Kč | ||
| 08 | GEAR CASE 0700-0660A0 | Skladem | 1 382,74 Kč | ||
| 09 | BREATHER ASSY 0700-011410 | Skladem | 232,13 Kč | ||
| 10 | SWITCH, OIL PRESSURE 0700-012500 | Skladem | 304,67 Kč | ||
| 11 | OIL RETURN HOSE 0700-011402-1000 | Skladem | 188,60 Kč | ||
| 12 | OIL PIPE 5 0700-011310 | Skladem | 261,14 Kč | ||
| 13 | OIL PIPE 4 0700-0112A0-0B20 | Skladem | 186,44 Kč | ||
| 14 | OIL PIPE 1 0700-070300 | Skladem | 357,34 Kč | ||
| 15 | OIL PIPE 3 0700-012210 | Skladem | 304,67 Kč | ||
| 16 | OIL PIPE 2 0700-012710 | Skladem | 232,13 Kč | ||
| 17 | STUD M10x57 0700-011102-00001 | Skladem | 46,61 Kč | ||
| 18 | PIPE BREATHER 0700-011103 | Skladem | 46,61 Kč | ||
| 19 | ROLLER 10×14 30410-01000 | Skladem | 31,07 Kč | ||
| 20 | NEEDLE BEARING HK2212 30403-02200 | Skladem | 101,56 Kč | ||
| 21 | NEEDLE BEARING HK1312 30403-01300 | Skladem | 87,05 Kč | ||
| 22 | OIL SEAL 40x62x8, COUNTERSHAFT 0700-010200 | Skladem | 217,62 Kč | ||
| 23 | O-SEAL RING 29×2.5 0700-011112 | Skladem | 62,15 Kč | ||
| 24 | OIL LIMIT PLUG 0700-066006 | Není skladem | |||
| 24 | OIL LIMIT PLUG 0700-066006-00001 | Skladem | 15,54 Kč | ||
| 25 | PLUG, MAIN OIL RAIL 0700-012105-00001 | Skladem | 15,54 Kč | ||
| 26 | PLUG, UPPER CRANKCASE 0700-011106 | Skladem | 87,05 Kč | ||
| 27 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 28 | BOLT M6x22 0010-080013-0010 | Skladem | 15,54 Kč | ||
| 29 | BOLT M6x10 0010-080010-0010 | Skladem | 15,54 Kč | ||
| 30 | DOWEL PIN, TRANSMISSION SPRING 0700-012107-00001 | Skladem | 31,07 Kč | ||
| 31 | BOLT M6x12 0010-021019-0010 | Skladem | 15,54 Kč | ||
| 32 | BOLT M7x30 0700-066004-00001 | Skladem | 15,54 Kč | ||
| 33 | BOLT M7x26 0700-066007 | Není skladem | |||
| 34 | BOLT M6x8 0700-011105-00001 | Skladem | 15,54 Kč | ||
| 35 | SCREW M6x8 0700-012012-00001 | Skladem | 15,54 Kč | ||
| 36 | DAMPER, OIL RETURN HOSE 0700-011403 | Skladem | 188,60 Kč | ||
| 37 | STEEL BAND CLAMP B11.5 30601-211550 | Skladem | 31,07 Kč | ||
| 38 | CONNECTING PIPE BREATHER 0700-011401 | Skladem | 232,13 Kč | ||
| 39 | SCREW PLUG M6, OIL PASSAGE 0700-012104 | Není skladem | |||
| 40 | SOLID PIN 8×14 0700-022018 | Skladem | 15,54 Kč | ||
| 41 | O-SEAL RING 5×2 0700-012201 | Skladem | 15,54 Kč | ||
| 42 | PLUG 6 0700-066005 | Skladem | 31,07 Kč | ||
| 43 | O-SEAL RING 8.2×1.90 0700-011202 | Skladem | 31,07 Kč | ||
| 44 | O-SEAL RING 10×2 0700-012701 | Skladem | 31,07 Kč | ||
| 45 | O-SEAL RING 14×2.5 0700-070003 | Skladem | 46,61 Kč | ||
| 46 | SHAFT SLEEVE 0700-011107 | Skladem | 304,67 Kč | ||
| 47 | BOLT M7x40 0700-012007-00001 | Skladem | 15,54 Kč | ||
| 48 | BOLT M8x60 0700-012004-00001 | Skladem | 15,54 Kč | ||
| 49 | BOLT M8x73 0700-012003-00001 | Skladem | 31,07 Kč | ||
| 50 | BOLT M8x50 0700-012011-00001 | Skladem | 31,07 Kč | ||
| 51 | BOLT M7x34 0700-012009-00001 | Skladem | 15,54 Kč | ||
| 52 | BOLT M7x47 0700-012005-00001 | Skladem | 31,07 Kč | ||
| 53 | BOLT M8x110 0700-011001-00001 | Skladem | 62,15 Kč | ||
| 54 | BOLT M8x120 0700-011002-00001 | Skladem | 46,61 Kč | ||
| 55 | BOLT M9x113 0700-012001 | Skladem | 62,15 Kč | ||
| 56 | BOLT M9x83 0700-012008-00001 | Skladem | 62,15 Kč | ||
| 57 | WASHER 9.2x19x2.3 0700-012002 | Skladem | 15,54 Kč | ||
| 58 | WASHER 8 0010-022012 | Skladem | 15,54 Kč | ||
| 59 | NOZZLE VALVE ASSY. 0800-011400 | Skladem | 186,44 Kč | ||
| 60 | DOWEL PIN Dia 6×12 01A0-056004 | Skladem | 15,54 Kč | ||
