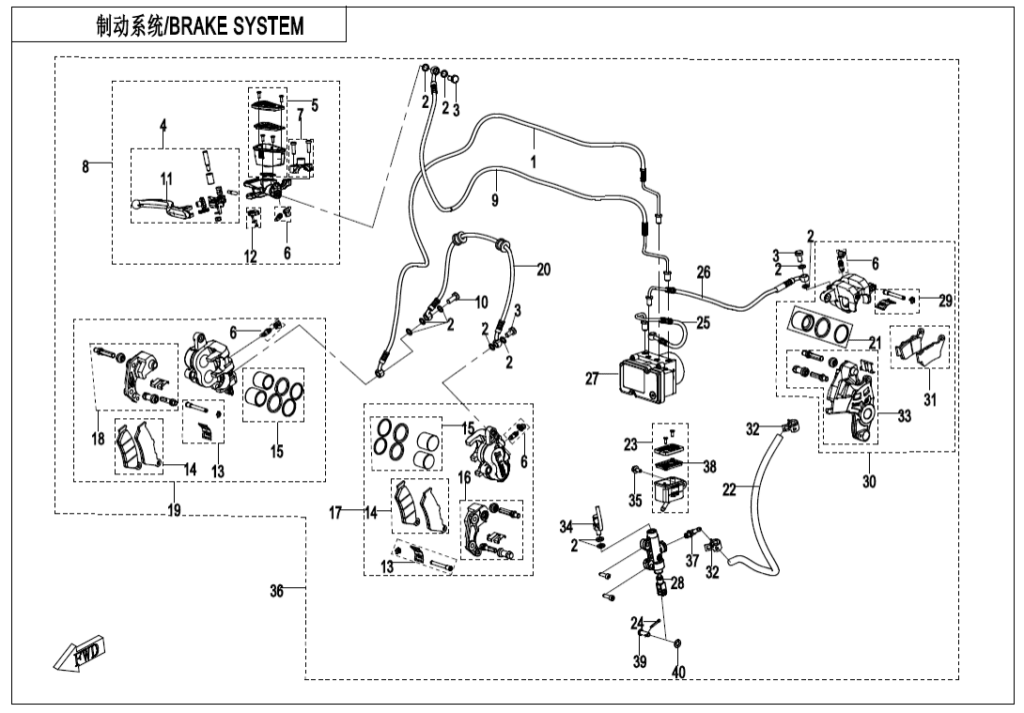

F08-1 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | OIL OUTLET PIPE ，FRONT BRAKE 6NQ0-081010-10000 | Skladem | 2 252,78 Kč | ||
| 02 | Podložka A000-080102-2000 | Skladem | 15,54 Kč | ||
| 03 | BANJO BOLT A000-080101-2000 | Skladem | 188,60 Kč | ||
| 04 | FRONT BRAKE LEVER A000-0801J0 | Skladem | 2 920,84 Kč | ||
| 05 | FLUID RESERVOIR,FRONT BRAKE A000-0801N0 | Skladem | 1 817,76 Kč | ||
| 06 | BOLT PLUG, OIL DRAIN A000-0801W0 | Skladem | 497,16 Kč | ||
| 07 | HALF-COVER, FRONT BRAKE PUMP A000-0801M0 | Skladem | 1 165,23 Kč | ||
| 08 | MASTER CYLINDER, FRONT BRAKE A000-080110-2000 | Skladem | 7 457,47 Kč | ||
| 09 | FLUID INLET PIPE，FRONT BRAKE 6NQ0-081020-10000 | Skladem | 2 252,78 Kč | ||
| 10 | BANJO BOLT 2 A000-080103-2000 | Skladem | 188,60 Kč | ||
| 11 | LEVER A000-080131-2000 | Skladem | 916,65 Kč | ||
| 12 | SWITCH, FRONT BRAKE A000-0801L0 | Skladem | 753,19 Kč | ||
| 13 | GUIDE ROD,FRONT BRAKE CALIPER A000-0801H0 | Skladem | 1 475,96 Kč | ||
| 14 | FRONT BRAKE PAD 6NQ#-0811A0-6000 | Skladem | 1 491,49 Kč | ||
| 15 | PISTON, FRONT BRAKE CALIPER A000-0801F0 | Skladem | 730,21 Kč | ||
| 16 | BRACKET,FRONT BRAKE CALIPER(LH) A000-0801E0 | Skladem | 2 330,46 Kč | ||
| 17 | FRONT BRAKE CALIPER ASSY., LH 6NQ#-081100-6000 | Skladem | |||
| 17 | FRONT BRAKE CALIPER, LH A000-080150-2000 | Skladem | 9 415,06 Kč | ||
| 18 | BRACKET,FRONT BRAKE CALIPER(RH) A000-0801G0 | Skladem | 2 081,88 Kč | ||
| 19 | FRONT BRAKE CALIPER ASSY., RH 6NQ#-081200-6000 | Skladem | 8 995,58 Kč | ||
| 19 | FRONT BRAKE CALIPER, RH A000-080170-2000 | Skladem | 9 415,06 Kč | ||
| 20 | LOWER FLUID HOSE, FRONT BRAKE 6NQ#-081040-6000 | Skladem | 1 305,06 Kč | ||
| 20 | LOWER FULID HOSE ASSY, FRONT BRAKE 6NQ#-081040-6001 | Skladem | 1 305,06 Kč | ||
| 21 | PISTON,REAR BRAKE CALIPER A000-0802E0 | Skladem | 1 475,96 Kč | ||
| 22 | FLUID RESERVOIR HOSE ASSY, REAR BRAKE MASTER CYLINDER 6NQ#-0810A0-6000-30 | Skladem | 497,16 Kč | ||
| 23 | FLUID RESERVOIR,REAR BRAKE PUMP A000-0802C0 | Skladem | 1 724,54 Kč | ||
| 24 | PIN A000-080233-2000 | Skladem | 31,07 Kč | ||
| 25 | OUTLET PIPE, REAR BRAKE A000-081020 | Skladem | 1 180,77 Kč | ||
| 26 | INLET PIPE, REAR BRAKE 6NQ0-081040-10000 | Skladem | 2 485,82 Kč | ||
| 27 | MAB A000-081400 | Skladem | 16 903,60 Kč | ||
| 28 | REAR BRAKE MASTER CYLINDER ASSY 6NQ#-0810A0-6000-20 | Skladem | 5 095,94 Kč | ||
| 29 | GUIDE ROD,REAR BRAKE CALIPER A000-0802H0 | Skladem | 1 475,96 Kč | ||
| 30 | REAR BRAKE CALIPER 6NTG-081060 | Skladem | 11 032,51 Kč | ||
| 30 | REAR BRAKE CALIPER ASSY 6NQ#-081300-6000 | Skladem | 10 968,70 Kč | ||
| 31 | REAR BRAKE PAD A000-0801D0 | Skladem | 1 926,51 Kč | ||
| 31 | REAR BRAKE PAD ASSY 6NQ#-0813A0-6000 | Skladem | |||
| 32 | CLIP A000-080213-2000 | Skladem | 159,72 Kč | ||
| 33 | BRACKET, REAR BRAKE CALIPER 6NTJ-0802D0 | Skladem | 2 718,87 Kč | ||
| 34 | REAR BRAKE LIGHT SWITCH 6NQ#-081070-6000-M1 | Skladem | 994,33 Kč | ||
| 35 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 36 | ABS BRAKE ASSY. 6NQ#-081000-6001-M1 | Skladem | |||
| 37 | FLUID NOZZLE A000-080224-2000 | Skladem | |||
| 38 | SEAL RING, FLUID RESERVOIR A000-080232-2000 | Skladem | 186,44 Kč | ||
| 39 | PIN SHAFT A000-080216-2000 | Skladem | 101,64 Kč | ||
| 40 | WASHER 8 A000-080234-2000 | Skladem | 62,15 Kč | ||
