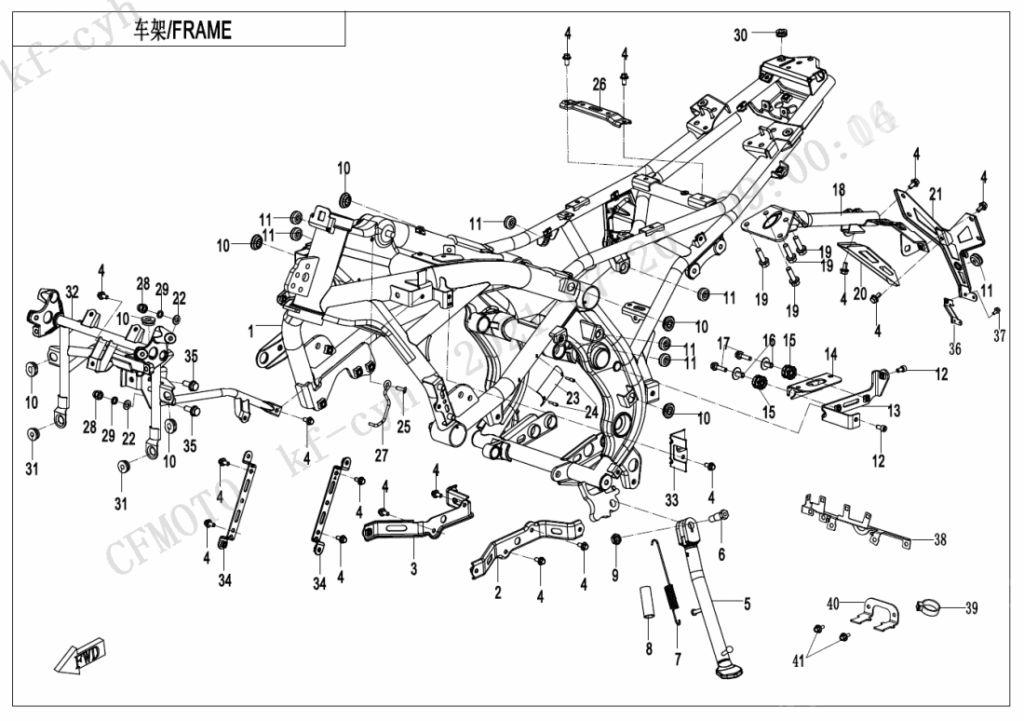

F03 FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRAME ASSY 6NTV-031000-D201-01-0BP00 | Skladem | 26 287,59 Kč | ||
| 02 | LH BRACKET, LOWER DEFLECTOR 6NQ#-030030-6000 | Skladem | 170,90 Kč | ||
| 03 | BRACKET, RH LOWER DEFLECTOR 6NQ#-030040-6001 | Skladem | 170,90 Kč | ||
| 04 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 05 | SIDE STAND 6NQ#-030190-6000 | Skladem | 1 305,06 Kč | ||
| 06 | BOLT, SIDE STAND A000-030006 | Skladem | 62,15 Kč | ||
| 07 | SPRING, SIDE STAND A000-030210 | Skladem | 188,76 Kč | ||
| 08 | SPRING COLLAR, SIDE STAND A000-030004 | Skladem | 46,61 Kč | ||
| 09 | Matice 30208-102810 | Skladem | 15,54 Kč | ||
| 10 | DAMPER, FRONT FENDER 8080-040064 | Skladem | 15,54 Kč | ||
| 11 | RUBBER DAMPER, OUTER GUARD A000-040302 | Skladem | 31,07 Kč | ||
| 12 | SCREW M6x12 30102-060012810 | Skladem | 15,54 Kč | ||
| 13 | MOUNTING SEAT, REGULATOR 6NQ#-030080-6000 | Skladem | 201,97 Kč | ||
| 14 | BRACKETⅡ, REGULATOR A000-030130 | Skladem | 93,22 Kč | ||
| 15 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 16 | RUBBER SLEEVE LINER, FRONT LICENSE BRACKET 5020-031002 | Skladem | 29,02 Kč | ||
| 17 | BOLT M6x25 30006-060025870 | Skladem | 15,54 Kč | ||
| 18 | REAR FENDER BRACKET ASSY 6NT1-030100 | Skladem | |||
| 19 | BOLT M8x28 30006-080028810 | Skladem | 15,54 Kč | ||
| 20 | SUPPORT PLATE, REAR LICENCE 6KJ0-030601 | Skladem | |||
| 21 | BRACKET,REAR LICENCE 6KJ0-030200-0BB0 | Skladem | 264,12 Kč | ||
| 22 | Podložka 30306-080112 | Skladem | 15,54 Kč | ||
| 23 | Štítek VIN A000-191004 | Skladem | |||
| 23 | VEHICLE PLATE 6NTV-190011-D001 | Skladem | |||
| 23 | VIN PLATE 6NTV-190011-D200 | Skladem | |||
| 23 | VIN PLATE 6NTV-190011-D002 | Skladem | |||
| 24 | SELF-PLUGGING RIVET 4.2X 8 30902-0420820 | Není skladem | |||
| 25 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 26 | MOUNTING SEAT, FUEL TANK 6NQ#-030060-6000 | Skladem | |||
| 27 | LH CLAMP, MAIN CABLE A000-030001 | Skladem | 62,15 Kč | ||
| 28 | NUT M8 30206-080510 | Skladem | 15,54 Kč | ||
| 29 | Podložka 30303-080112 | Skladem | 15,54 Kč | ||
| 30 | RUBBER SLEEVE 5BY0-040010 | Skladem | 31,07 Kč | ||
| 31 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
| 32 | FRONT BRACKET ASSY 6NQ#-030400-6002 | Skladem | 2 206,17 Kč | ||
| 33 | BRACKET, CANISTER 6NT1-030001 | Skladem | |||
| 34 | MOUNTING SEAT, FRONT FENDER 6NQ#-030050-6000 | Skladem | 116,06 Kč | ||
| 35 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 36 | MOUNTING SEAT, REFLECTOR(RH) 6KJ0-030920 | Skladem | |||
| 37 | BOLT M5x20 30006-050020810 | Skladem | 15,54 Kč | ||
| 38 | BRACKET, HANDLEBAR CONNECTOR 6NTV-030010-2700 | Skladem | 93,22 Kč | ||
| 39 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 40 | BRACKET, T-BOX 6NQV-030300-6200 | Skladem | |||
| 41 | Šroub 30006-050014810 | Skladem | 15,54 Kč | ||
