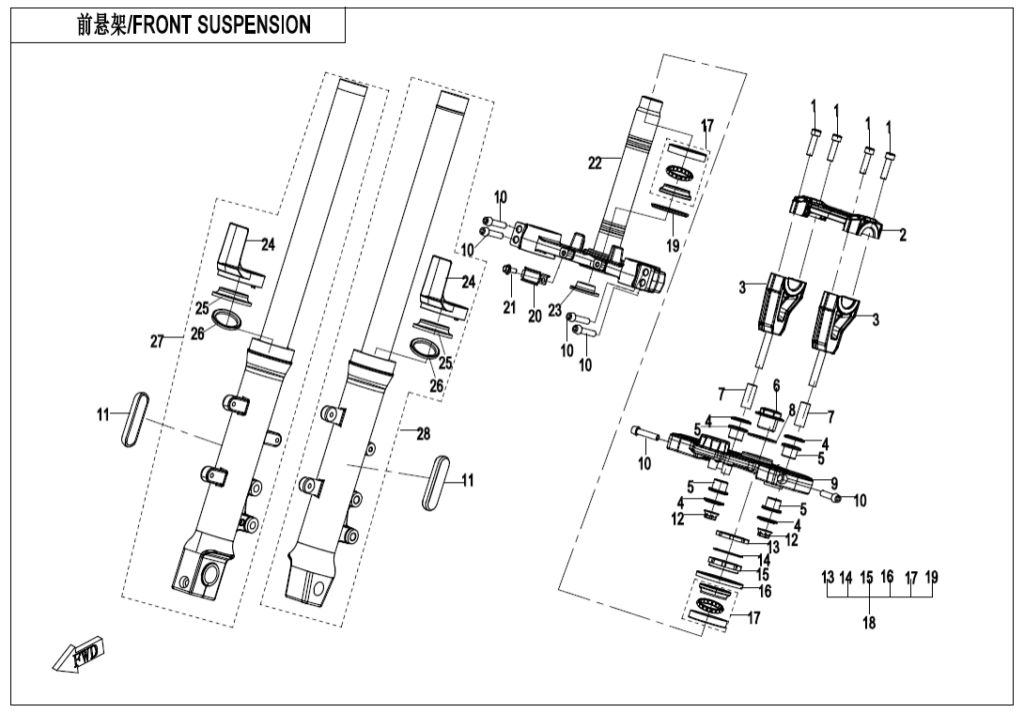

F05 FRONT SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | INNER HEX SCREW M8x30 30102-080030860 | Skladem | 31,07 Kč | ||
| 02 | PRESS COVER, HANDLEBAR 6NQV-050002-6001-0BP00 | Skladem | 1 336,13 Kč | ||
| 03 | HOLDER, HANDLEBAR 6NQV-050010-6001-0BP00 | Skladem | 1 460,42 Kč | ||
| 04 | Podložka 6KJ0-050005 | Skladem | 31,07 Kč | ||
| 05 | DAMPER RUBBER, UPPER TRIPLE CLAMP 6KJ0-050004 | Skladem | 31,07 Kč | ||
| 06 | FIXING SCREW, UPPER TRIPLE CLAMP 6NTA-050003 | Skladem | 232,13 Kč | ||
| 07 | LINER, UPPER CONNECTING PLATE 6KJ0-050006-00001 | Skladem | 31,07 Kč | ||
| 08 | Podložka A000-050004 | Skladem | 15,54 Kč | ||
| 09 | UPPER TRIPLE CLAMP 6NQV-050001-B001 | Skladem | |||
| 10 | INNER HEX SCREW A000-050018 | Skladem | 46,61 Kč | ||
| 11 | FRONT SIDE REFLECTOR 6KJV-160920-8001-M1 | Skladem | 87,05 Kč | ||
| 12 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 13 | LOCK NUT 1 A000-050006 | Skladem | 93,22 Kč | ||
| 14 | Podložka A000-050008 | Skladem | 15,54 Kč | ||
| 15 | LOCK NUT 2 A000-050007 | Skladem | 108,75 Kč | ||
| 16 | DUST CAP, UPPER RETAINER A000-050009 | Skladem | 31,07 Kč | ||
| 17 | STEERING BEARING ASSY A000-050100-10000 | Skladem | 419,48 Kč | ||
| 18 | STEERING BEARING ASSY. A000-0501A0 | Skladem | 1 134,16 Kč | ||
| 19 | ANTI-DUST CAP, LOWER RETAINING RING A000-050400 | Skladem | 62,15 Kč | ||
| 20 | WIRE CLIP, FRONT BRAKE FLUID HOSE 6NTV-080005-1000 | Skladem | |||
| 21 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 22 | LOWER TRIPLE CLAMP ASSY A000-050300-0BP00 | Skladem | |||
| 23 | RUBBER PLUG 2 A000-050011 | Skladem | 46,61 Kč | ||
| 24 | GUARD A000-050501 | Skladem | 145,08 Kč | ||
| 25 | DUST COVER, FRONT SHOCK ABSORBER A000-050510 | Skladem | 124,29 Kč | ||
| 26 | OIL SEAL, FRONT SHOCK ABSORBER A000-050520 | Skladem | 188,60 Kč | ||
| 27 | FRONT RH SHOCK ABSORBER 6NT#-050600-9001 | Skladem | 8 545,02 Kč | ||
| 28 | FRONT LH SHOCK ABSORBER 6NT#-050500-9001 | Skladem | 8 545,02 Kč | ||
