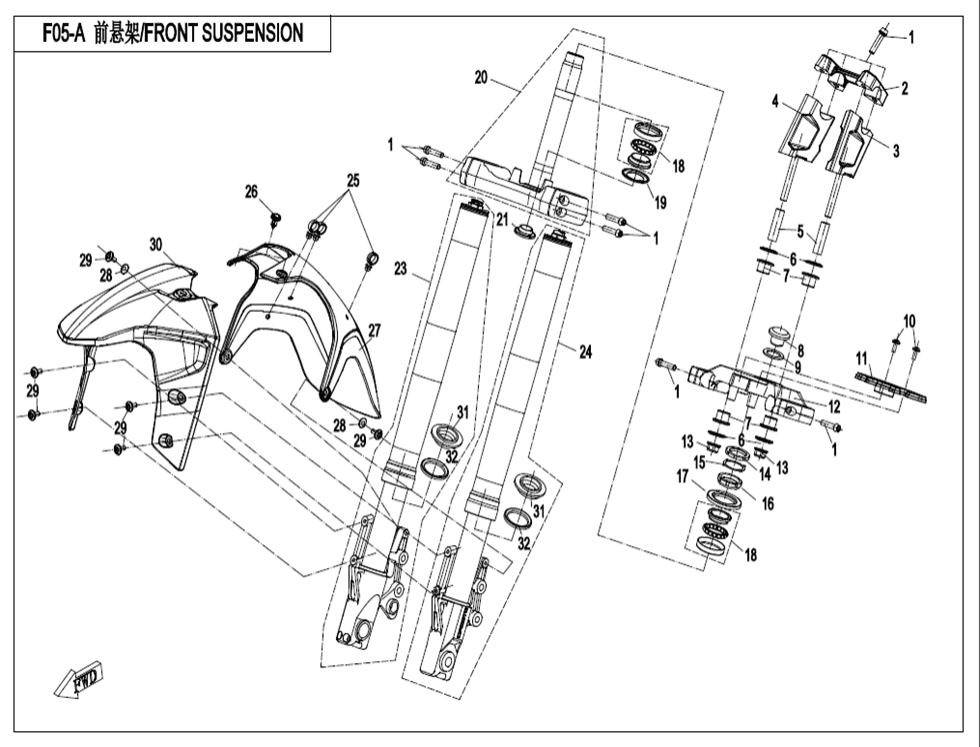

Přední zavěšení
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | INNER HEX SCREW A000-050018 | Skladem | 46,61 Kč | ||
| 02 | PRESS COVER, HANDLEBAR 6NTV-050002-2400-0B200 | Není skladem | 419,48 Kč | ||
| 03 | HANDLEBAR LH SUPPORT ASSY 6NTV-100040-2400-0B200 | Skladem | 652,53 Kč | ||
| 03 | SUPPROT SEAT(LH), HANDLEBAR 6NT1-050010-0B200 | Skladem | 776,82 Kč | ||
| 04 | HANDLEBAR RH SUPPORT ASSY 6NTV-100050-2400-0B200 | Skladem | 652,53 Kč | ||
| 04 | SUPPROT SEAT(RH), HANDLEBAR 6NT1-050020-0B200 | Skladem | 776,82 Kč | ||
| 05 | LINER, UPPER JOINT PLATE 6NT1-050005 | Skladem | 62,15 Kč | ||
| 06 | Podložka 6KJ0-050005 | Skladem | 31,07 Kč | ||
| 07 | DAMPER RUBBER, UPPER TRIPLE CLAMP 6KJ0-050004 | Skladem | 31,07 Kč | ||
| 08 | FIXING SCREW, UPPER TRIPLE CLAMP 6NTA-050003 | Skladem | 232,13 Kč | ||
| 09 | Podložka A000-050004 | Skladem | 15,54 Kč | ||
| 10 | SCREW M5×14 A000-040202 | Skladem | 15,54 Kč | ||
| 11 | CLIP 6NTA-100118-0B200 | Skladem | 124,29 Kč | ||
| 12 | UPPER CONNECTING PLATE 6NT1-050001-0B200 | Skladem | 5 422,20 Kč | ||
| 12 | UPPER TRIPLE CLAMP 6NTV-050001-B100 | Skladem | 3 697,66 Kč | ||
| 13 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 14 | LOCK NUT 1 A000-050006 | Skladem | 93,22 Kč | ||
| 15 | Podložka A000-050008 | Skladem | 15,54 Kč | ||
| 16 | LOCK NUT 2 A000-050007 | Skladem | 108,75 Kč | ||
| 17 | DUST CAP, UPPER RETAINER A000-050009 | Skladem | 31,07 Kč | ||
| 18 | STEERING BEARING ASSY A000-050100-10000 | Skladem | 419,48 Kč | ||
| 19 | ANTI-DUST CAP, LOWER RETAINING RING A000-050400 | Skladem | 62,15 Kč | ||
| 20 | LOWER HOLDER, FRONT FORK? 6NTG-050300-0B200 | Skladem | 6 267,41 Kč | ||
| 21 | RUBBER PLUG 2 A000-050011 | Skladem | 46,61 Kč | ||
| 23 | FRONT RH SHOCK ABSORBER 6NTC-050600 | Skladem | 17 695,96 Kč | ||
| 24 | FRONT LH SHOCK ABSORBER 6NTC-050500 | Skladem | 17 695,96 Kč | ||
| 25 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 26 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 27 | REAR PART, FRONT FENDER 6NT1-050004-0B800 | Skladem | 978,79 Kč | ||
| 28 | NYLON GASKET Φ8 6NTG-050002 | Skladem | 15,54 Kč | ||
| 29 | MOUNTING SCREW, CHAIN GUARD 6NQ#-000205-6001 | Skladem | 29,02 Kč | ||
| 30 | FRONT PART, FENDER 6NT1-050003-0EC00 | Skladem | 978,79 Kč | ||
| 30 | FRONT PART, FRONT FENDER 6NT1-050003-0V200 | Skladem | 978,79 Kč | ||
| 30 | FRONT PART, FRONT FENDER 6NT1-050003-0BA00 | Skladem | 978,79 Kč | ||
| 30 | FRONT PART, FRONT FENDER 6NT1-050003-0EK00 | Skladem | 978,79 Kč | ||
| 30 | FRONT PART, FRONT FENDER 6NT1-050003-0BM00 | Skladem | 978,79 Kč | ||
| 30 | FRONT PORTION, FRONT FENDER 6NT1-050003-0VE00 | Skladem | 978,79 Kč | ||
| 31 | DUST BOOTS, FRONT SHOCK ABSORBER 6NT1-050510 | Skladem | 201,97 Kč | ||
| 32 | OIL SEAL, FRONT SHOCK ABSORBER 6NT1-050520 | Skladem | 435,02 Kč | ||
