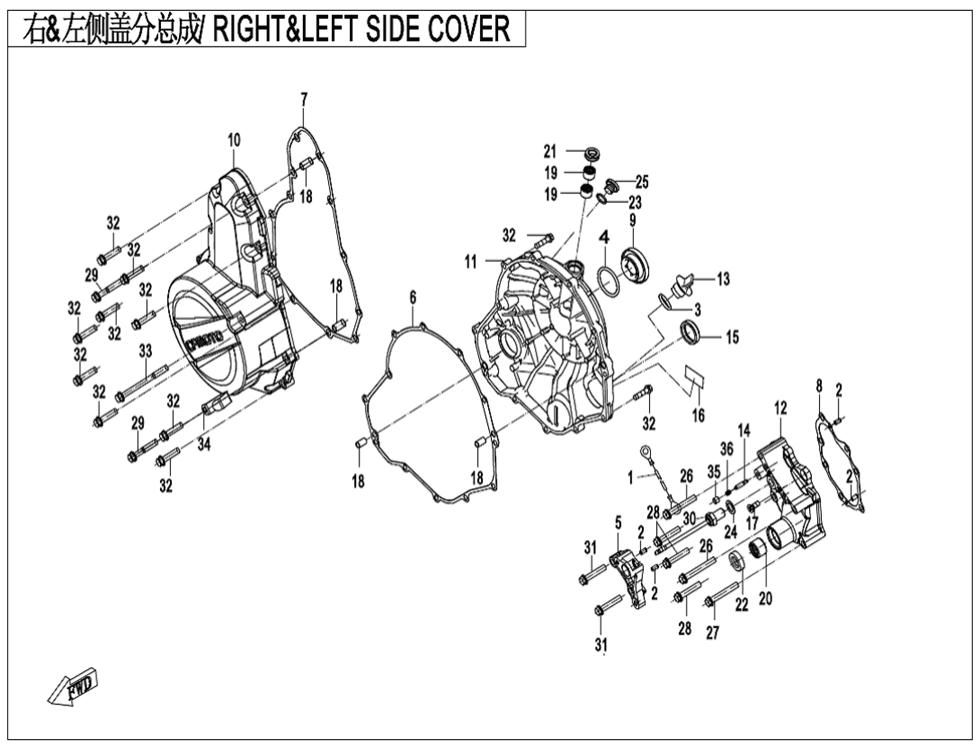

Kryt motoru III
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | GROUND CABLE, AUXILIARY 0700-065205 | Skladem | 31,07 Kč | ||
| 02 | ROLLER NEEDLE P4x7.8 30406-00401 | Skladem | 31,07 Kč | ||
| 03 | O-SEAL RING 18×3.55 0110-013030 | Skladem | 15,54 Kč | ||
| 04 | O-SEAL RING 35×3.5 01A0-012003 | Skladem | 62,15 Kč | ||
| 05 | HOLDER 0700-065301 | Skladem | 174,09 Kč | ||
| 06 | GASKET, RH SIDE COVER 0700-013002-0001 | Není skladem | |||
| 06 | GASKET, RH SIDE COVER 0700-013002-10000 | Skladem | 419,48 Kč | ||
| 07 | GASKET, LH SIDE COVER 0700-014002-10000 | Skladem | 295,19 Kč | ||
| 07 | SEAL GASKET,LH SIDE COVER 0700-014002-0001 | Není skladem | |||
| 08 | GASKET, TRANSMISSION COVER 0700-065202-10000 | Skladem | 87,05 Kč | ||
| 08 | GASKET, TRANSMISSION COVER 0700-065202-0001 | Není skladem | |||
| 09 | COVER, OIL STRAINER 01A0-012002-0B20 | Skladem | 248,58 Kč | ||
| 09 | COVER, OIL STRAINER SILVER GREY 01A0-012002-0H700 | Není skladem | |||
| 10 | LH SIDE COVER 0700-014001-2H700 | Není skladem | |||
| 10 | LH SIDE COVER 0700-014001-2B200 | Není skladem | |||
| 11 | RH SIDE COVER 0700-013001-1H700 | Není skladem | |||
| 11 | RH SIDE COVER 0700-013001-1B200 | Není skladem | |||
| 11 | RH SIDE COVER 0700-013001-2B200 | Není skladem | |||
| 11 | RH SIDE COVER 0700-013001-1H701 | Není skladem | |||
| 11 | RH SIDE COVER 0700-013001-1B201 | Skladem | 3 029,60 Kč | ||
| 11 | SIDE COVER, RH 0700-013001-2V500 | Není skladem | |||
| 12 | TRANSMISSION COVER 0700-065201-2B200 | Není skladem | |||
| 13 | PLUG, OIL FILLING 0700-013008 | Skladem | 58,03 Kč | ||
| 14 | CONTACTOR 0700-065204 | Skladem | 31,07 Kč | ||
| 15 | VIEWER, OIL LEVEL 0700-013100 | Není skladem | |||
| 15 | VIEWER, OIL LEVEL 0700-013100-00001 | Skladem | 124,29 Kč | ||
| 16 | LABEL, OIL CAPACITY 0700-013005-30000 | Skladem | 15,54 Kč | ||
| 16 | LABEL, OIL CAPACITY 0700-013005-20000 | Skladem | 15,54 Kč | ||
| 17 | SCREW M6x16 30128-060016830 | Skladem | 43,52 Kč | ||
| 18 | DOWEL PIN φ8×14 0010-080008 | Skladem | 15,54 Kč | ||
| 19 | NEEDLE BEARING HK1210 30403-01200 | Skladem | 87,05 Kč | ||
| 20 | NEEDLE BEARING HK1312 30403-01300 | Skladem | 87,05 Kč | ||
| 21 | OIL SEAL 12x20x5 0010-080009 | Skladem | 31,07 Kč | ||
| 22 | OIL SEAL 13x22x5.5 0700-065220 | Skladem | 31,07 Kč | ||
| 23 | O-SEAL RING 13×2 01A0-013005 | Skladem | 15,54 Kč | ||
| 24 | WASHER 10 0010-060010 | Skladem | 31,07 Kč | ||
| 25 | HOLE CAP, TIMING INSPECTION 0700-013003-10000 | Skladem | 186,44 Kč | ||
| 26 | BOLT M6x45 0180-013208-0010 | Skladem | 15,54 Kč | ||
| 27 | BOLT M6x40 0010-013009-0010 | Skladem | 15,54 Kč | ||
| 28 | BOLT M6x30 0010-060012-0010 | Skladem | 15,54 Kč | ||
| 29 | BOLT M6×35 0010-013008-0010 | Skladem | 15,54 Kč | ||
| 30 | REVERSE SENSOR ASSY 0700-065210 | Skladem | 341,80 Kč | ||
| 31 | BOLT M6x20 0010-023010-0010 | Skladem | 15,54 Kč | ||
| 32 | BOLT M6x25 0010-021017-0010 | Skladem | 15,54 Kč | ||
| 33 | BOLT M6x70 0020-011018-0010 | Skladem | 15,54 Kč | ||
| 34 | CABLE CLIP 0700-014003 | Skladem | 31,07 Kč | ||
| 35 | PLUG 6 0700-066005 | Skladem | 31,07 Kč | ||
| 36 | SPRING 0700-065203 | Skladem | 31,07 Kč | ||
