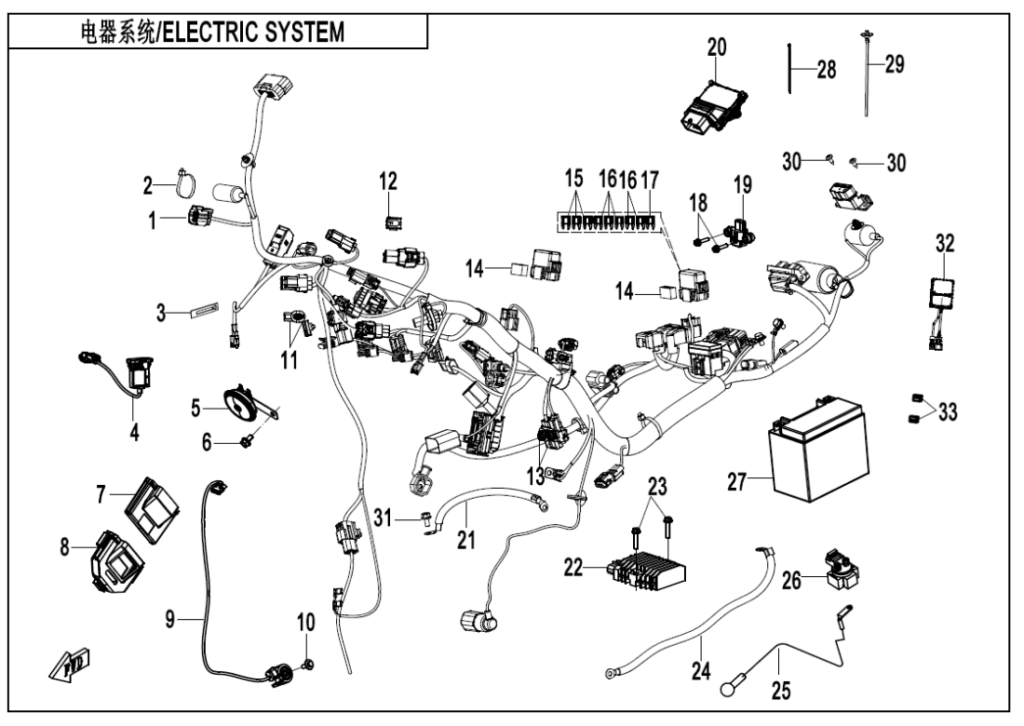

F15 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAIN CABLE 6GUV-150100-3400 | Skladem | 14 666,36 Kč | ||
| 01 | MAIN CABLE 6GUV-150100-3401 | Skladem | 15 396,57 Kč | ||
| 02 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 03 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 04 | TYPE-C USB SOCKET 6KWV-151500-1000 | Skladem | 1 242,91 Kč | ||
| 05 | HORN 6FIV-150600-7000 | Skladem | 290,40 Kč | ||
| 06 | Šroub 30006-060010810 | Skladem | 43,52 Kč | ||
| 07 | BCM 6GUV-151900-5600 | Skladem | 5 701,86 Kč | ||
| 08 | BUSHING, VEHICLE CONTROL UNIT 6WWV-150420-5000-10 | Skladem | 174,24 Kč | ||
| 09 | SIDE STAND ASSY 6KMV-151500-3000 | Skladem | 466,09 Kč | ||
| 10 | BOLT M6x16 8010-090005 | Skladem | 15,54 Kč | ||
| 11 | CLIP CFCV-CAC002-2000-M1 | Skladem | 31,07 Kč | ||
| 12 | CLIP CFCV-CBC005-2000-M1 | Skladem | 15,54 Kč | ||
| 13 | CLIP 6AQV-150001-1000-M1 | Skladem | 15,54 Kč | ||
| 14 | RUBBER SLEEVE, FLASHER 6100-150500 | Skladem | 15,54 Kč | ||
| 15 | FUSE 5A 8010-151301 | Skladem | 15,54 Kč | ||
| 16 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 17 | 25A FUSE 806A-151307 | Skladem | 15,54 Kč | ||
| 18 | BOLT M5x20 30006-050020810 | Skladem | 15,54 Kč | ||
| 19 | SENSOR, ROLL-OVER 6KJ0-150600 | Skladem | 652,53 Kč | ||
| 20 | ECM ASSY 6GUV-001000-5700 | Skladem | 13 796,32 Kč | ||
| 21 | ENGINE GROUND WIRE 6GUV-150320-5600 | Skladem | 264,12 Kč | ||
| 22 | REGULATOR 6NTV-151000-3000 | Skladem | 1 553,64 Kč | ||
| 23 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 24 | BATTERY NEGATIVE CABLE 6GUV-150420-5600 | Skladem | 668,07 Kč | ||
| 25 | STARTER MOTOR POSITIVE CABLE 6GUV-150310-5600 | Skladem | 528,24 Kč | ||
| 26 | STARTER RELAY 6GUV-150510-5600 | Skladem | 466,09 Kč | ||
| 27 | BATTERY 31021100 | Skladem | 2 469,65 Kč | ||
| 28 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 29 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 30 | SELF-TAPPING SCREW ST4.2×13-C-H 30110-420130070 | Skladem | 29,02 Kč | ||
| 31 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 32 | Jednotka T-BOX SN1V-691100-1201-11 | Skladem | 6 943,23 Kč | ||
| 32 | Jednotka T-BOX SN1V-691100-1301-11 | Skladem | 6 943,23 Kč | ||
| 32 | Jednotka T-BOX SN1V-691100-1401-11 | Skladem | 6 943,23 Kč | ||
| 32 | Jednotka T-BOX SN1V-691100-1501-11 | Skladem | |||
| 32 | Jednotka T-BOX SN1V-691100-1601-11 | Skladem | 13 905,08 Kč | ||
| 33 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
