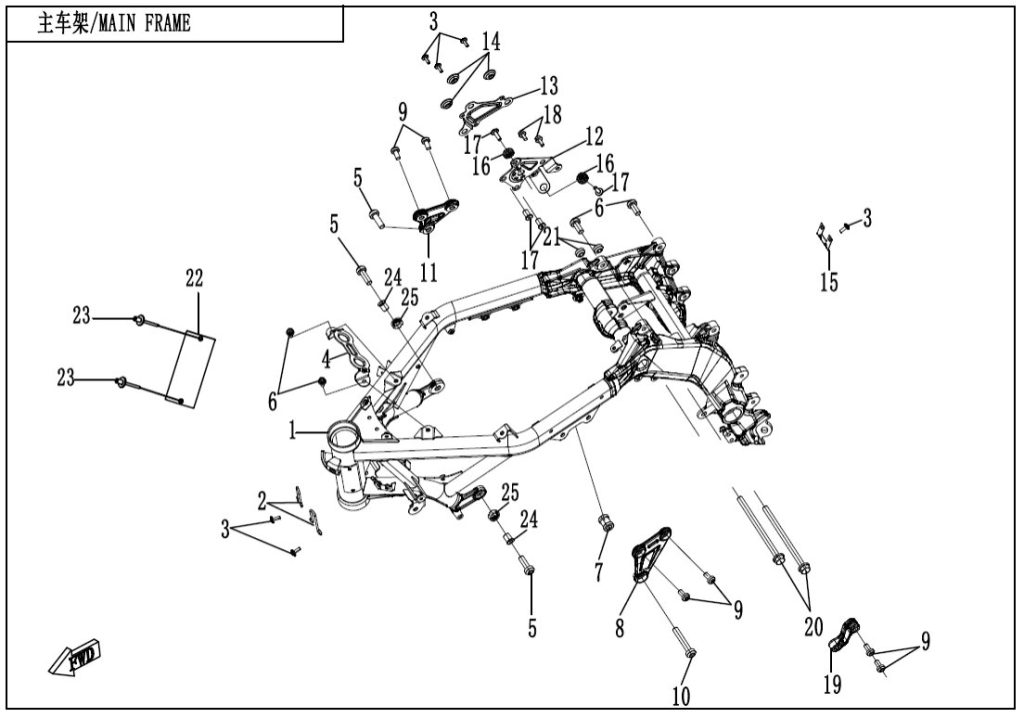

F03-1 MAIN FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | MAIN FRAME ASSY 6GUV-033000-5606-0BP00 | Skladem | 27 810,16 Kč | ||
| 2 | BRAKE LH CABLE HOOK 6GUV-030011-5600 | Skladem | 31,07 Kč | ||
| 3 | INNER HEX SCREW M5x14 6WWV-047102-5000 | Skladem | 15,54 Kč | ||
| 4 | FUEL TANK BRACKET 6GUV-030006-5600 | Skladem | 108,75 Kč | ||
| 5 | Šroub (vrut) 6AQV-030007-6000 | Skladem | 46,61 Kč | ||
| 6 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 7 | BUSHING, ENGINE 6AQV-030004-1000 | Skladem | 87,12 Kč | ||
| 8 | ENGINE UPPER LH BRACKET 6GUV-030021-5600 | Skladem | 652,53 Kč | ||
| 9 | INNER HEX SCREW M8x16 6WWV-030013-5000 | Skladem | 31,07 Kč | ||
| 10 | BOLT M10x60 6L30-030091 | Skladem | 62,15 Kč | ||
| 11 | ENGINE UPPER RH BRACKET 6GUV-030022-5600 | Skladem | 652,53 Kč | ||
| 12 | ABS BRACKET 6GUV-030720-5600 | Skladem | 295,19 Kč | ||
| 13 | ABS DECO GUARD BRACKET 6GUV-030007-5600 | Skladem | 62,15 Kč | ||
| 14 | M6 RUBBER SLEEVE 6KMV-041112-3000 | Skladem | 15,54 Kč | ||
| 15 | CONNECTOR ADAPTER BRACKET 6GUV-030015-5600 | Skladem | 15,54 Kč | ||
| 16 | RUBBER BUSHING 6WWV-030019-5000 | Skladem | 15,54 Kč | ||
| 17 | INNER HEX SCREW M6x20 6WWV-046902-5000 | Skladem | 15,54 Kč | ||
| 18 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 19 | GEARSHIFT LEVER BRACKET 6GUV-030710-5600 | Skladem | 419,48 Kč | ||
| 20 | Šroub 30006-102155110 | Skladem | 101,64 Kč | ||
| 21 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 22 | VIN PLATE 6GUV-190011-5B00 | Skladem | 31,07 Kč | ||
| 23 | BLIND RIVET 30902-0401320 | Skladem | 15,54 Kč | ||
| 24 | ADJUSTING SCREW, ENGINE 6AQV-030092-1000 | Skladem | 145,20 Kč | ||
| 25 | NUT M18 6NT1-000292 | Skladem | 130,68 Kč | ||
