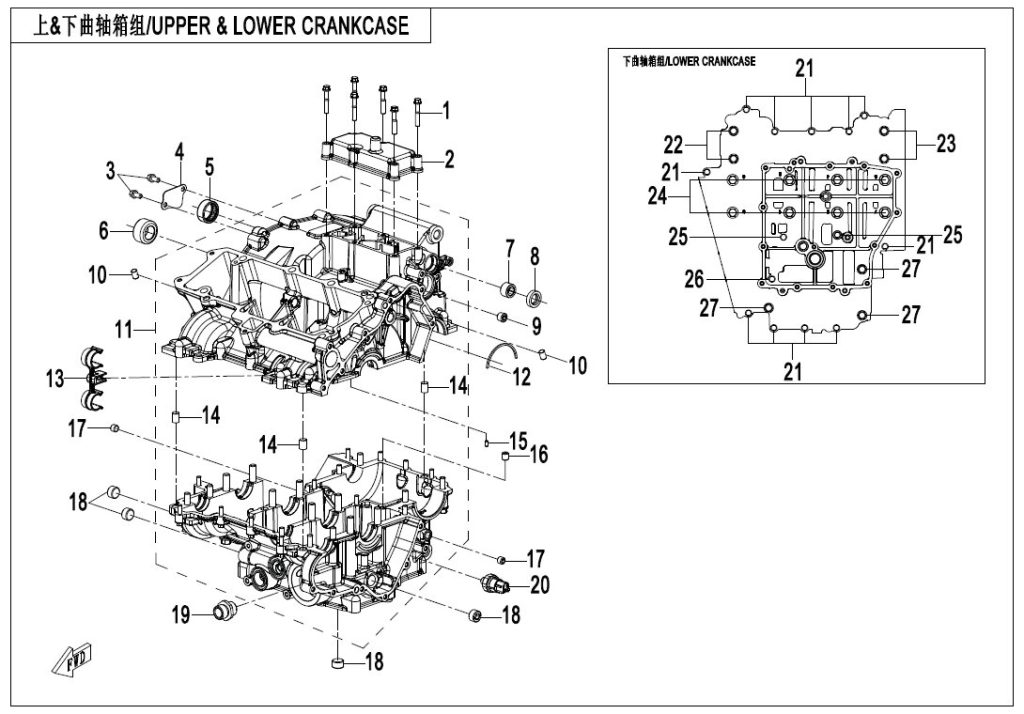

E01-1 UPPER @^ LOWER CRANKCASE ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT M6×35 0010-013008-0010 | Skladem | 15,54 Kč | ||
| 02 | MAZE COVER 0HTV-011105-7000-0C200 | Skladem | 838,97 Kč | ||
| 03 | BOLT M6x12 0010-021019-0010 | Skladem | 15,54 Kč | ||
| 04 | MAZE RETAINER 0HTV-011103-7000 | Skladem | 15,54 Kč | ||
| 05 | NEEDLE BEARING 0SQV-011106-4000 | Skladem | 139,83 Kč | ||
| 06 | BEARING SLEEVE 0SQV-060011-1000 | Skladem | 264,12 Kč | ||
| 07 | NEEDLE BEARING 30403-01400 | Skladem | 46,61 Kč | ||
| 08 | OIL SEAL 1F30-011600-10000 | Skladem | 46,61 Kč | ||
| 09 | PLUG 0HTV-011104-7000 | Skladem | 31,07 Kč | ||
| 10 | ROLLER 30410-00800 | Skladem | 15,54 Kč | ||
| 11 | CRANKCASE ASSY 0HTV-01FZ01-7001 | Skladem | 29 674,52 Kč | ||
| 12 | RETAINER, BEARING 0SQV-011004-1000 | Skladem | 31,07 Kč | ||
| 13 | CLIP 0HTV-072004-7000 | Skladem | 46,61 Kč | ||
| 14 | ROLLER 10×14 30410-01000 | Skladem | 31,07 Kč | ||
| 15 | ROLLER NEEDLE P4x7.8 30406-00401 | Skladem | 31,07 Kč | ||
| 16 | RESTRICTION PLUG 0SQV-011103-1000 | Skladem | 46,61 Kč | ||
| 17 | Šroub (vrut) 01A0-012010-00001 | Skladem | 15,54 Kč | ||
| 18 | PLUG, MAIN OIL RAIL 0700-012105-00001 | Skladem | 15,54 Kč | ||
| 19 | BOLT, OIL FILTER 0700-012106-00002 | Skladem | 87,12 Kč | ||
| 20 | OIL PRESSURE SWITCH 0HTV-012400-7000 | Skladem | 341,80 Kč | ||
| 21 | BOLT M6x25 0010-021017-0010 | Skladem | 15,54 Kč | ||
| 22 | BOLT ASSY 0SQV-012600-1001 | Skladem | 31,07 Kč | ||
| 23 | BOLT 0HTV-012700-7000 | Skladem | 46,61 Kč | ||
| 24 | BOLT 0HTV-012200-7000 | Skladem | 62,15 Kč | ||
| 25 | BOLT M6x85 0060-013021-00002 | Skladem | 31,07 Kč | ||
| 26 | BOLT M6x42 0HTB-065202 | Skladem | 15,54 Kč | ||
| 27 | BOLT M8x45 0SQV-012003-1000 | Skladem | 31,07 Kč | ||
