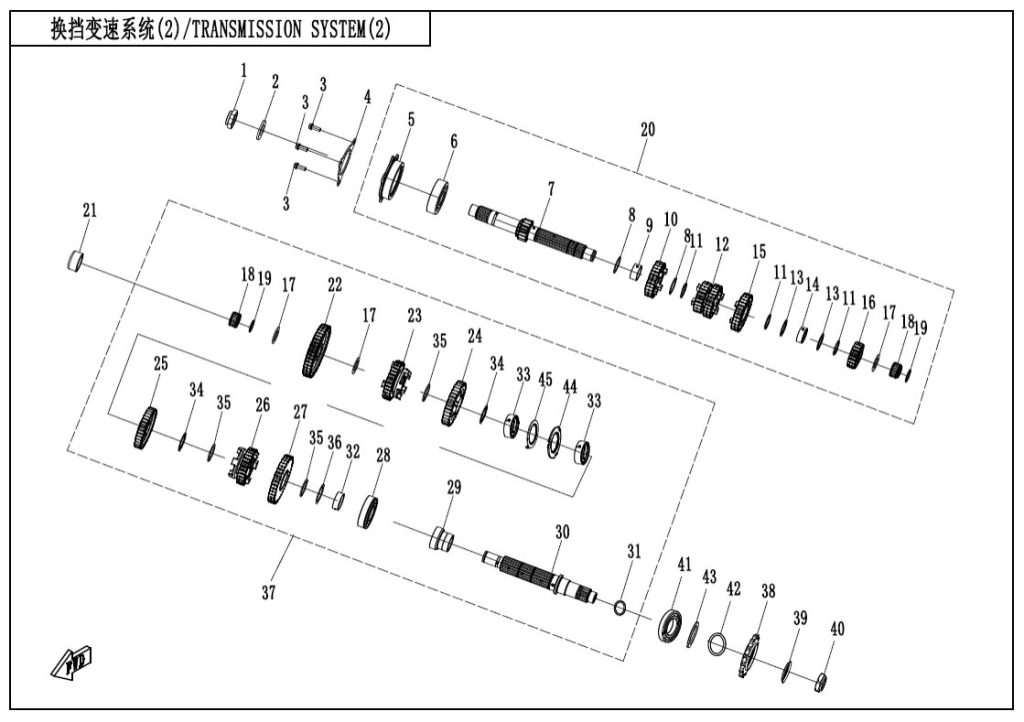

E06-2-V2 TRAINSMISION SYSTEM(2)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Matice 0700-061002-00002 | Skladem | 77,68 Kč | ||
| 2 | CIRCLIP 20 0700-061003 | Skladem | 46,61 Kč | ||
| 3 | BOLT M6x16 0010-090005-0010 | Skladem | 15,54 Kč | ||
| 4 | BEARING SEAT RETAINER 0HTV-060005-7000 | Skladem | 46,61 Kč | ||
| 5 | BEARING SEAT 0HTV-061010-7000 | Skladem | 1 040,94 Kč | ||
| 6 | BEARING 25x62x17 0700-066002 | Skladem | 1 460,42 Kč | ||
| 7 | MAIN SHAFT 0HTV-061001-7000 | Skladem | 1 460,42 Kč | ||
| 8 | Podložka 0SQV-061008-1000 | Skladem | 15,54 Kč | ||
| 9 | Pouzdro 0SQV-061011-1000 | Skladem | 116,16 Kč | ||
| 10 | MAIN SHAFT 5TH GEAR 0HTV-061009-7000 | Skladem | 761,28 Kč | ||
| 11 | CIRCLIPS FOR SHAFT 25 0DM0-062017 | Skladem | 15,54 Kč | ||
| 12 | MAIN SHAFT 3,4TH GEAR 0HTV-061007-7000 | Skladem | 1 413,81 Kč | ||
| 13 | SPLINE WASHER 25x31x1 0DM0-062016 | Skladem | 31,07 Kč | ||
| 14 | SPLINE SLEEVE 25×10 0DM0-062015 | Skladem | 170,90 Kč | ||
| 15 | MAIN SHAFT 6TH GEAR 0HTV-061005-7000 | Skladem | 761,28 Kč | ||
| 16 | MAIN SHAFT 2TH GEAR 0HTV-061003-7000 | Skladem | 419,48 Kč | ||
| 17 | Podložka 0SQV-061002-1000 | Skladem | 15,54 Kč | ||
| 18 | NEEDLE BEARING 30499-02004 | Skladem | 391,71 Kč | ||
| 19 | CIRCLIPS FOR SHAFT20 0700-061016 | Skladem | 15,54 Kč | ||
| 20 | MAIN SHAFT ASSY 0HTV-061000-7000 | Skladem | 9 927,76 Kč | ||
| 21 | BEARING SLEEVE 0SQV-060011-1000 | Skladem | 264,12 Kč | ||
| 22 | COUNTERSHAFT 1ST GEAR ASSY 0HTV-062100-7000 | Skladem | 1 009,87 Kč | ||
| 23 | COUNTERSHAFT 5TH GEAR 0HTV-062013-7000 | Skladem | 1 258,45 Kč | ||
| 24 | COUNTERSHAFT 3ND GEAR 0HTV-062012-7001 | Skladem | 1 072,01 Kč | ||
| 25 | COUNTERSHAFT 4TH GEAR 0HTV-062009-7001 | Skladem | 916,65 Kč | ||
| 26 | COUNTERSHAFT 6TH GEAR 0HTV-062007-7000 | Skladem | 1 258,45 Kč | ||
| 27 | COUNTERSHAFT 2ND GEAR 0HTV-062004-7000 | Skladem | 838,97 Kč | ||
| 28 | 62×28 0SQV-062003-1000 | Skladem | 1 211,84 Kč | ||
| 29 | COUNTERSHAFT SLEEVE 0HTV-062002-7000 | Skladem | 170,90 Kč | ||
| 30 | COUNTERSHAFT 0HTV-062001-7000 | Skladem | 1 584,71 Kč | ||
| 31 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 32 | 28×10.5 0SQV-062005-1000 | Skladem | 116,16 Kč | ||
| 33 | SPLINE SLEEVE 0HTV-062011-7000 | Skladem | 155,36 Kč | ||
| 34 | SPLINE WASHER 0HTV-062008-7000 | Skladem | 31,07 Kč | ||
| 35 | CIRCLIPS FOR SHAFT 25.5 0RVV-062018-1000 | Skladem | 31,07 Kč | ||
| 36 | 28.2x36x1 0SQV-062006-1000 | Skladem | 15,54 Kč | ||
| 37 | COUNTERSHAFT ASSY 0HTV-062000-7001 | Skladem | 9 259,69 Kč | ||
| 38 | OUTPUT SPROCKET ASSY 0700-062030-00001 | Skladem | 714,67 Kč | ||
| 39 | Podložka 0700-062015 | Skladem | 15,54 Kč | ||
| 40 | NUT M20×1.5 0SQV-060014-1001 | Skladem | 72,60 Kč | ||
| 41 | COUNTERSHAFT OIL SEAL 0SQV-010001-1000-M1 | Skladem | 201,97 Kč | ||
| 42 | O-Kroužek 0SQV-060012-1000 | Skladem | 15,54 Kč | ||
| 43 | Podložka 0SQV-060013-1000 | Skladem | 15,54 Kč | ||
| 44 | SPLINE WASHER 0RVV-062015-1000 | Skladem | 31,07 Kč | ||
| 45 | LOCK HOOK SPLINE WASHER 0RVV-062016-1000 | Skladem | 46,61 Kč | ||
