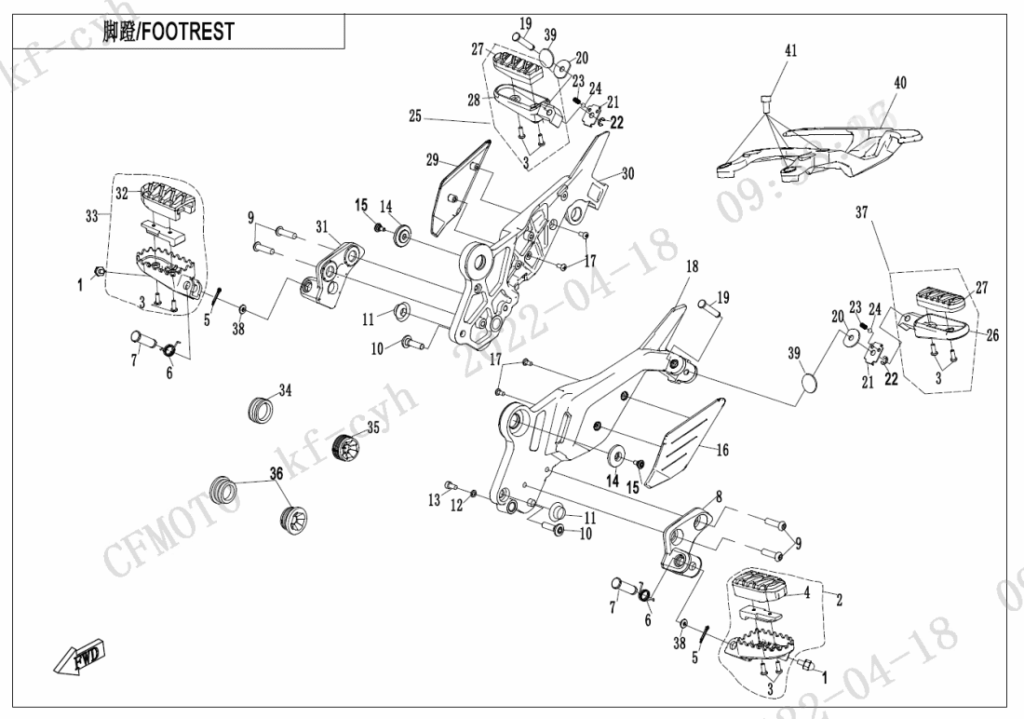

F14 FOOTREST
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | LIMIT BOLT 6GU#-140202-6000 | Skladem | 31,07 Kč | ||
| 02 | FRONT FOOTREST SEAT, LH 6GUV-140220-6003-0BY00 | Skladem | 699,14 Kč | ||
| 03 | Šroub (vrut) 30105-050014470 | Skladem | 15,54 Kč | ||
| 04 | LH FRONT FOOTREST RUBBER 6GU#-140205-6000 | Skladem | 159,59 Kč | ||
| 05 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 06 | SPRING A000-140103-20000 | Skladem | 31,07 Kč | ||
| 07 | PIN SHAFT 6WWV-140141-5000 | Skladem | 31,07 Kč | ||
| 08 | BRACKET, LH FRONT FOOTREST 6GUV-140600-6002 | Skladem | 1 211,84 Kč | ||
| 09 | SCREW M8x30 30121-080030170 | Skladem | 31,07 Kč | ||
| 10 | FLANGE BOLT, M8x25 6KM0-140103 | Skladem | 31,07 Kč | ||
| 11 | LIMIT RUBBER, FOOTREST BOARD 6GU#-140092-6000 | Skladem | 43,52 Kč | ||
| 12 | SPRING WASHER 30303-060152 | Skladem | 15,54 Kč | ||
| 13 | SCREW M6x12 30102-060012810 | Skladem | 15,54 Kč | ||
| 14 | DECO BUCKLE, REAR FOOTREST 6GUV-140005-8000 | Skladem | |||
| 15 | SCREW KIT M5 6KM#-040082-8000 | Skladem | 31,07 Kč | ||
| 16 | DECO PLATE, LH FOOTREST BRACKET 6GUV-140060-6400 | Skladem | 838,97 Kč | ||
| 17 | SCREW M5x10 30105-050010410 | Skladem | 15,54 Kč | ||
| 18 | BRACKET, LH FOOTREST 6GUV-140810-8000 | Skladem | 3 464,62 Kč | ||
| 19 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 20 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 21 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 22 | CIRCLIP 6 30802-00603 | Skladem | 15,54 Kč | ||
| 23 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 24 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 25 | REAR FOOTREST, RH PC MERCURY SILVER 6GUV-1400B0-6000-0VX00 | Skladem | 559,31 Kč | ||
| 26 | REAR FOOTREST SEAT, LH PC MERCURY SILVER 6GU#-140041-6000-0VX00 | Skladem | |||
| 27 | RUBBER, REAR FOOTREST BOARD 6GU#-140080-6000 | Skladem | 108,75 Kč | ||
| 28 | REAR FOOTREST SEAT, RH PC MERCURY SILVER 6GU#-140051-6000-0VX00 | Skladem | |||
| 29 | DECO PLATE, RH FOOTREST BRACKET 6GUV-140070-6400 | Skladem | 838,97 Kč | ||
| 30 | BRACKET, RH FOOTREST 6GUV-140010-8000 | Skladem | 3 449,08 Kč | ||
| 31 | BRACKET, RH FRONT FOOTREST 6GUV-140700-6002 | Skladem | 1 211,84 Kč | ||
| 32 | RH FRONT FOOTREST RUBBER 6GU#-140206-6000 | Skladem | 159,59 Kč | ||
| 33 | FRONT FOOTREST SEAT, RH 6GUV-140230-6003-0BY00 | Skladem | 699,14 Kč | ||
| 34 | RH DECO CLASP, FRAME 6GU#-140096-6000 | Skladem | 62,15 Kč | ||
| 35 | LH DECO CLASP, FRAME 6GU#-140095-6000 | Skladem | 62,15 Kč | ||
| 36 | FRONT DECO CLASP, FRAME 6GU#-140097-6000 | Skladem | 62,15 Kč | ||
| 37 | REAR FOOTREST, LH PC MERCURY SILVER 6GUV-1400A0-6000-0VX00 | Skladem | 559,31 Kč | ||
| 38 | Podložka 30300-100112 | Skladem | 15,54 Kč | ||
| 39 | O-Kroužek 6GUV-140030-8000 | Skladem | |||
| 40 | REAR ARMREST MERCURY SILVER 6GUV-140100-8000-0VX00 | Skladem | 2 532,43 Kč | ||
| 41 | INNER HEX BOLT 30102-080016810 | Skladem | 15,54 Kč | ||
