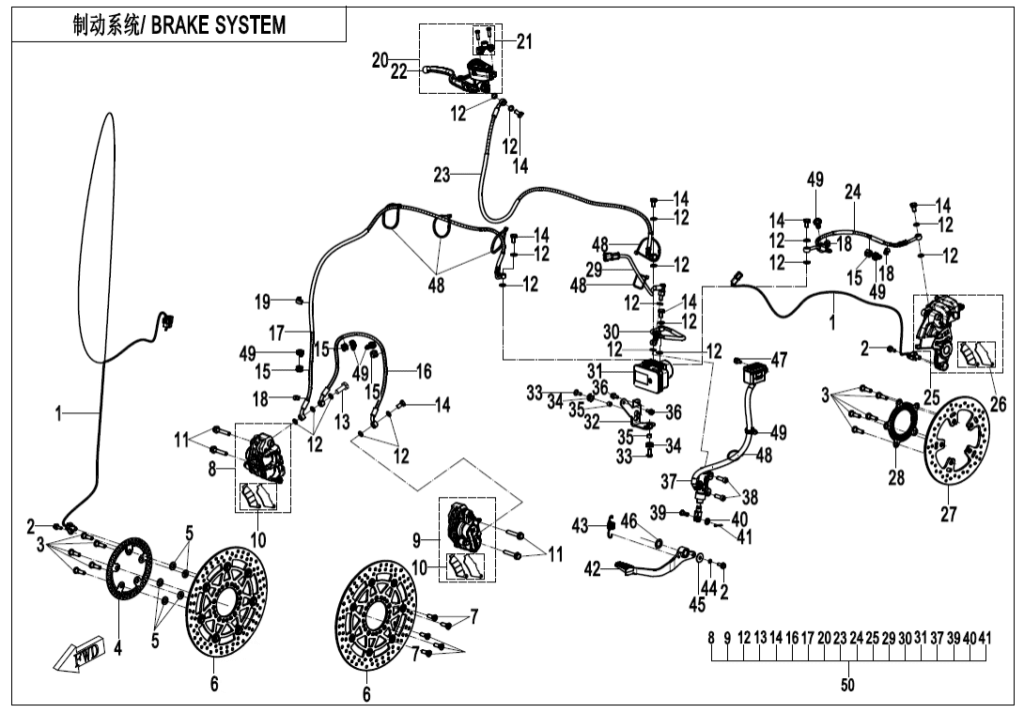

F08 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | SPEED SENSOR 6NTV-080004-4101-M1 | Skladem | 668,07 Kč | ||
| 1 | SPEED SENSOR 6KMV-080004-8500-M1 | Skladem | 1 273,98 Kč | ||
| 2 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 3 | BOLT, BRAKE DISC A000-080003-10000 | Skladem | 31,07 Kč | ||
| 4 | RING,FRONT GEAR 6NTG-080008-10000 | Skladem | 333,68 Kč | ||
| 5 | WASHER,FRONT RING A000-080008-10000 | Skladem | 15,54 Kč | ||
| 6 | FRONT BRAKE DISC ASSY 6NTV-080010-1900 | Není skladem | 3 231,57 Kč | ||
| 7 | Šroub (vrut) A000-080001 | Skladem | 43,52 Kč | ||
| 8 | FRONT BRAKE CALIPER, RH A000-080170-2000 | Skladem | 9 415,06 Kč | ||
| 9 | FRONT BRAKE CALIPER, LH A000-080150-2000 | Skladem | 9 415,06 Kč | ||
| 10 | PAD, FRONT BRAKE A000-0801C0 | Skladem | 1 670,16 Kč | ||
| 11 | BOLT M10x1.25×45 30006-102045810 | Skladem | 46,61 Kč | ||
| 12 | Podložka A000-080102-2000 | Skladem | 15,54 Kč | ||
| 13 | BANJO BOLT 2 A000-080103-2000 | Skladem | 188,60 Kč | ||
| 14 | BANJO BOLT A000-080101-2000 | Skladem | 188,60 Kč | ||
| 15 | RUBBER OIL HOSE CLIP 6KM#-080002-8000 | Skladem | 31,07 Kč | ||
| 16 | LOWER OIL HOSE ASSY, FRONT BRAKE A000-080140-30000 | Skladem | 1 196,30 Kč | ||
| 17 | FRONT BRAKE FLUID INTAKE PIPE 6NTV-081020-4101-M1 | Skladem | 2 035,27 Kč | ||
| 18 | CLIP, BRAKE HOSE 6KJ0-080003-00001 | Skladem | 31,07 Kč | ||
| 19 | WIRE CLIP, BRAKE FLUID HOSE EAEV-080006-1000 | Skladem | 43,56 Kč | ||
| 20 | FRONT BRAKE CALIPER ASSY 6NTV-081100-6200-M1 | Skladem | 7 457,47 Kč | ||
| 21 | HALF-COVER, FRONT BRAKE PUMP A000-0801M0 | Skladem | 1 165,23 Kč | ||
| 22 | LEVER A000-080131-2000 | Skladem | 916,65 Kč | ||
| 23 | FRONT BRAKE FLUID OUTLET HOSE 6NTV-081010-4100-M1 | Skladem | 2 330,46 Kč | ||
| 24 | FRONT BRAKE FLUID INTAKE HOSE 6NTV-081040-4102-M1 | Skladem | |||
| 25 | REAR BRAKE CAPLIER ASSY 6GUV-081060-5000 | Skladem | 15 365,50 Kč | ||
| 26 | BRAKE PAD ASSY 6GUV-0810A0 | Skladem | 1 816,46 Kč | ||
| 27 | REAR BRAKE DISC 6NQV-080006-2600 | Skladem | 1 087,55 Kč | ||
| 28 | REAR GEAR RING 6GU#-090002-6001 | Skladem | 261,14 Kč | ||
| 29 | REAR BRAKE LIGHT SWITCH 6GUV-081070-5000-M1 | Skladem | 1 118,62 Kč | ||
| 30 | REAR BRAKE FLUID OUTLET HOSE 6NTV-081030-4102-M1 | Skladem | |||
| 31 | MAB EXECUTION UNIT 6GUV-081300-5000-M1 | Skladem | |||
| 31 | MAB EXECUTION UNIT 6GUV-081300-5000-M2 | Skladem | |||
| 32 | BRACKET, ABS CONTROLLER 6NQV-080910-6601 | Skladem | |||
| 33 | INNER HEX SCREW M6x12 A000-040702 | Skladem | 15,54 Kč | ||
| 34 | RUBBER MAT A000-050013 | Skladem | 15,54 Kč | ||
| 35 | Pouzdro A000-050014 | Skladem | 46,61 Kč | ||
| 36 | BOLT M6×14 30001-060014810 | Skladem | 15,54 Kč | ||
| 37 | MASTER CYLINDER ASSY, REAR BRAKE 6NTJ-091200 | Skladem | |||
| 38 | Šroub (vrut) 30102-080025810 | Skladem | 15,54 Kč | ||
| 39 | PIN SHAFT A000-080216-2000 | Skladem | 101,64 Kč | ||
| 40 | WASHER 8 A000-080234-2000 | Skladem | 62,15 Kč | ||
| 41 | PIN A000-080233-2000 | Skladem | 31,07 Kč | ||
| 42 | REAR BRAKE PEDAL ASSY 6GUV-080200-5000-0BP00 | Skladem | 559,31 Kč | ||
| 43 | RETURN SPRING 6NTG-080005 | Skladem | 46,61 Kč | ||
| 44 | Podložka 30303-060112 | Skladem | 15,54 Kč | ||
| 45 | WASHER 1 A000-080006-10000 | Skladem | 31,07 Kč | ||
| 46 | WASHER 2 A000-080007-10000 | Skladem | 31,07 Kč | ||
| 47 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 48 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 49 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 50 | ABS BRAKE ASSY 6GUV-082000-5001-M1 | Skladem | |||
| 50 | ABS BRAKE ASSY 6GUV-081000-5001-M1 | Skladem | |||
