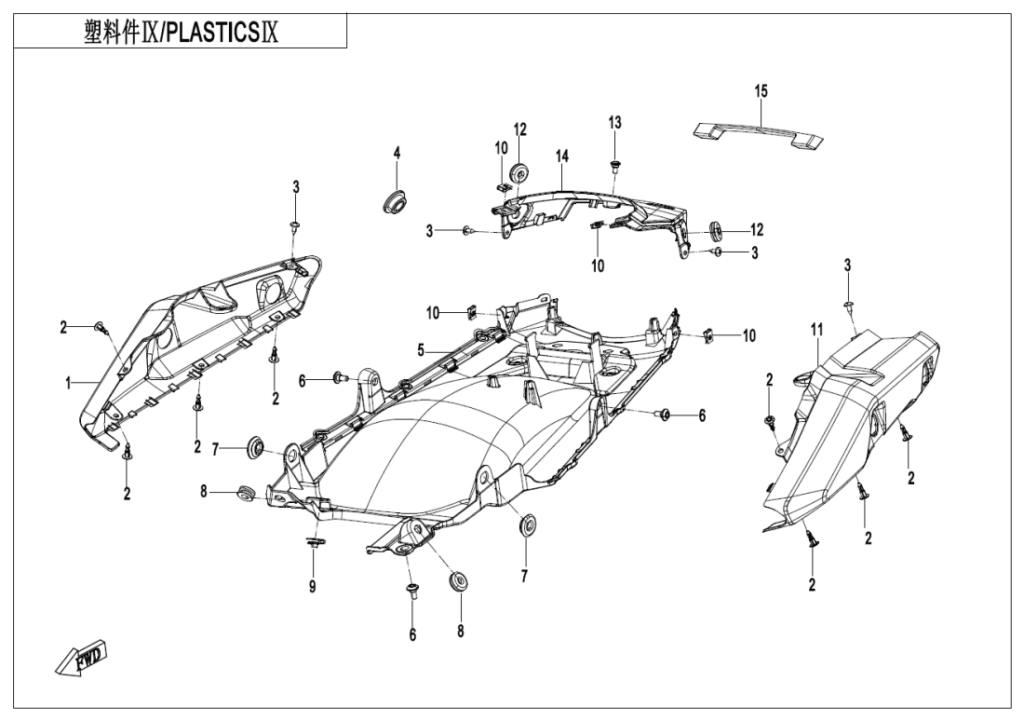

F04-09 PLASTICS Ⅸ
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RH PANEL, TAIL LIGHT 6GUV-041601-2001-0D500 | Skladem | 2 843,16 Kč | ||
| 01 | TAIL LIGHT RH PANEL 6GUV-041601-2001-0VF00 | Skladem | 932,18 Kč | ||
| 02 | PLASTIC SCREW 8080-041130 | Skladem | 15,54 Kč | ||
| 03 | SELF-TAPPING SCREW ST4.8×13 30110-481130010 | Skladem | 29,02 Kč | ||
| 04 | LIMIT BUSHING 6GUV-046301-2001 | Skladem | 15,54 Kč | ||
| 05 | FRAME BASE PLATE 6GUV-042001-2001 | Skladem | 512,70 Kč | ||
| 05 | FRAME SKID PLATE 6GUV-042001-2002 | Skladem | 512,70 Kč | ||
| 06 | INNER HEX STEPPED SCREW M6x14 6WWV-046602-5000 | Skladem | 15,54 Kč | ||
| 07 | RUBBER HEAD 6FIV-040401-7100 | Skladem | 15,54 Kč | ||
| 08 | DAMPING RUBBER SLEEVE 6KM#-040302-8000 | Skladem | 15,54 Kč | ||
| 09 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 10 | CLIP NUT ST4.8 8080-000002 | Skladem | 15,54 Kč | ||
| 11 | TAIL LIGHT LH PANEL 6GUV-041501-2001-0VF00 | Skladem | 932,18 Kč | ||
| 11 | TAIL LIGHT LH PANEL_SAPPHIRE BLACK 6GUV-041501-2001-0D500 | Skladem | 932,18 Kč | ||
| 12 | SIDE PANEL BUSHING 6AQV-040606-7100 | Skladem | 15,54 Kč | ||
| 13 | STEPPED SCREW M5 6WWV-046502-5000 | Skladem | 15,54 Kč | ||
| 14 | TAIL LIGHT UPPER PANEL 6GUV-041701-2000 | Skladem | 108,75 Kč | ||
| 15 | HOOK RUBBER, TAIL LIGHT 6WWV-043201-5000 | Skladem | 46,61 Kč | ||
