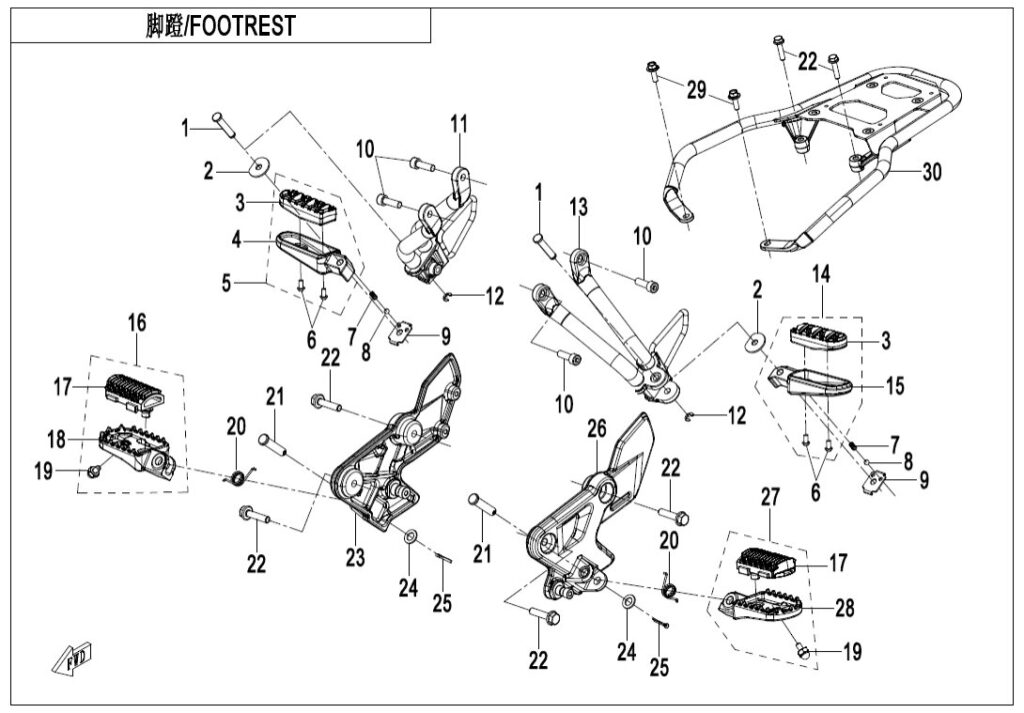

F14 FOOTREST
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 02 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 03 | RUBBER, REAR FOOTREST BOARD 6GU#-140080-6000 | Skladem | 108,75 Kč | ||
| 04 | RH REAR FOOTREST BOARD 6GU#-140051-6000-0BP00 | Skladem | 528,24 Kč | ||
| 05 | RUBBER, RH REAR FOOTREST BOARD 6GU#-1400B0-6000-0BP00 | Skladem | 543,77 Kč | ||
| 06 | Šroub (vrut) 30105-050014470 | Skladem | 15,54 Kč | ||
| 07 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 08 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 09 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 10 | Šroub (vrut) 30102-080025810 | Skladem | 15,54 Kč | ||
| 11 | REAR RH FOOTREST BRACKET ASSY 6GUV-140140-2000-0BP00 | Skladem | 1 973,12 Kč | ||
| 12 | CIRCLIP 6 30802-00603 | Skladem | 15,54 Kč | ||
| 13 | REAR LH FOOTREST BRACKET ASSY 6GUV-140110-2000-0BP00 | Skladem | 1 973,12 Kč | ||
| 14 | RUBBER, LH REAR FOOTREST BOARD 6GU#-1400A0-6000-0BP00 | Skladem | 543,77 Kč | ||
| 15 | LH REAR FOOTREST BOARD 6GU#-140041-6000-0BP00 | Skladem | 497,16 Kč | ||
| 16 | FOOTREST ASSY, RH SH-6GUV-1402B0-2000 | Skladem | 792,36 Kč | ||
| 17 | FRONT FOOTREST SEAT RUBBER 6AQV-140810-6000 | Skladem | 108,75 Kč | ||
| 18 | RH FRONT FOOTREST SEAT 6GUV-140203-2001 | Skladem | 668,07 Kč | ||
| 19 | LIMIT SCREW 6GUV-140202-2000 | Skladem | 15,54 Kč | ||
| 20 | SPRING 6L3V-140103-4200 | Skladem | 31,07 Kč | ||
| 21 | PIN SHAFT 6WWV-140141-5000 | Skladem | 31,07 Kč | ||
| 22 | BOLT M8x35 30006-080035810 | Skladem | 29,02 Kč | ||
| 23 | FRONT RH FOOTREST BRACKET ASSY 6GUV-140200-2001 | Skladem | 2 004,20 Kč | ||
| 24 | Podložka 30306-100112 | Skladem | 15,54 Kč | ||
| 25 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 26 | FRONT LH FOOTREST BRACKET ASSY 6GUV-140300-2001 | Skladem | 2 004,20 Kč | ||
| 27 | FOOT PEDAL ASSY, LH SH-6GUV-1402A0-2000 | Skladem | 792,36 Kč | ||
| 28 | LH FRONT FOOTREST SEAT 6GUV-140204-2001 | Skladem | 668,07 Kč | ||
| 29 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 30 | REAR RACK ASSY 6GUV-140100-2000-0BP00 | Skladem | |||
| 30 | REAR RACK ASSY 6GUV-140100-2000-0VX00 | Skladem | |||
