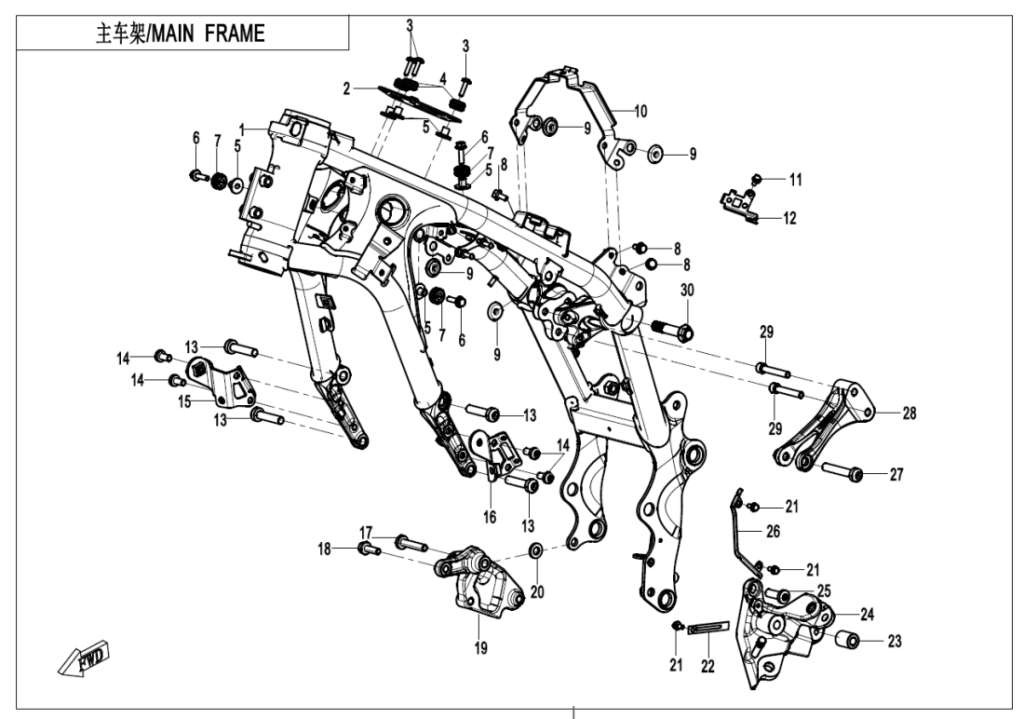

F03-1 MAIN FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | MAIN FRAME 6WWV-033000-8001-0BP00 | Skladem | 28 385,00 Kč | ||
| 2 | BRACKET, 6D SENSOR 6WWV-030001-5000 | Skladem | 145,20 Kč | ||
| 3 | INNER HEX SCREW M6x20 6WWV-046902-5000 | Skladem | 15,54 Kč | ||
| 4 | RUBBER BUSHING 6WWV-030019-5000 | Skladem | 15,54 Kč | ||
| 5 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 6 | BOLT M6x22 30006-060022810 | Skladem | 15,54 Kč | ||
| 7 | DAMPING RUBBER MAT 6KM#-181001-8001 | Skladem | 46,61 Kč | ||
| 8 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 9 | M6 RUBBER SLEEVE 6KMV-041112-3000 | Skladem | 15,54 Kč | ||
| 10 | SEAT FRONT BRACKET 6WWV-030110-8002 | Skladem | 124,29 Kč | ||
| 11 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 12 | BRACKET, MAGNETIC VALVE 6WWV-030170-8000 | Skladem | 31,07 Kč | ||
| 13 | INNER HEX SCREW M10x45 6WWV-030011-5000 | Skladem | 31,07 Kč | ||
| 14 | INNER HEX SCREW M8x16 6WWV-030013-5000 | Skladem | 31,07 Kč | ||
| 15 | FRONT PANEL BRACKET RH SEAT 6WWV-000120-8000 | Skladem | 108,75 Kč | ||
| 16 | FRONT PANEL BRACKET LH SEAT 6WWV-000110-8000 | Skladem | 108,75 Kč | ||
| 17 | ISA SCREW M10X45 ISA45 C0000351004500S | Skladem | 466,09 Kč | ||
| 18 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 19 | FRONT FOOTREST RH BRACKET 6WWV-030020-8000-0BP00 | Skladem | |||
| 20 | FRONT FOOTREST BRACKET BUSHING 6WWV-030005-8000 | Skladem | 15,54 Kč | ||
| 21 | Šroub 30006-050012810 | Skladem | 15,54 Kč | ||
| 22 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 23 | BUSHING 10,4X20X25 C0800001002500 | Skladem | 186,44 Kč | ||
| 24 | FRONT FOOTREST LH BRACKET 6WWV-030010-8000-0BP00 | Skladem | |||
| 25 | INNER HEX SCREW M10x30 6WWV-030017-5000 | Skladem | 15,54 Kč | ||
| 26 | BRACKET, SIDE STAND SWITCH CABLE 6WWV-030003-5000 | Skladem | 116,16 Kč | ||
| 27 | BOLT M10x60 6L30-030091 | Skladem | 62,15 Kč | ||
| 28 | ENGINE HANGING BRACKET 6WWV-030009-5000 | Skladem | 1 289,52 Kč | ||
| 29 | INNER HEX SCREW M8x50 30102-080050110 | Skladem | 31,07 Kč | ||
| 30 | BOLT M12x60 6WWV-030018-5000 | Skladem | 77,68 Kč | ||
| 31 | VIN PLATE 6WWV-190012-8400 | Skladem | |||
| 31 | VIN PLATE 6WWV-190012-5H01 | Skladem | |||
