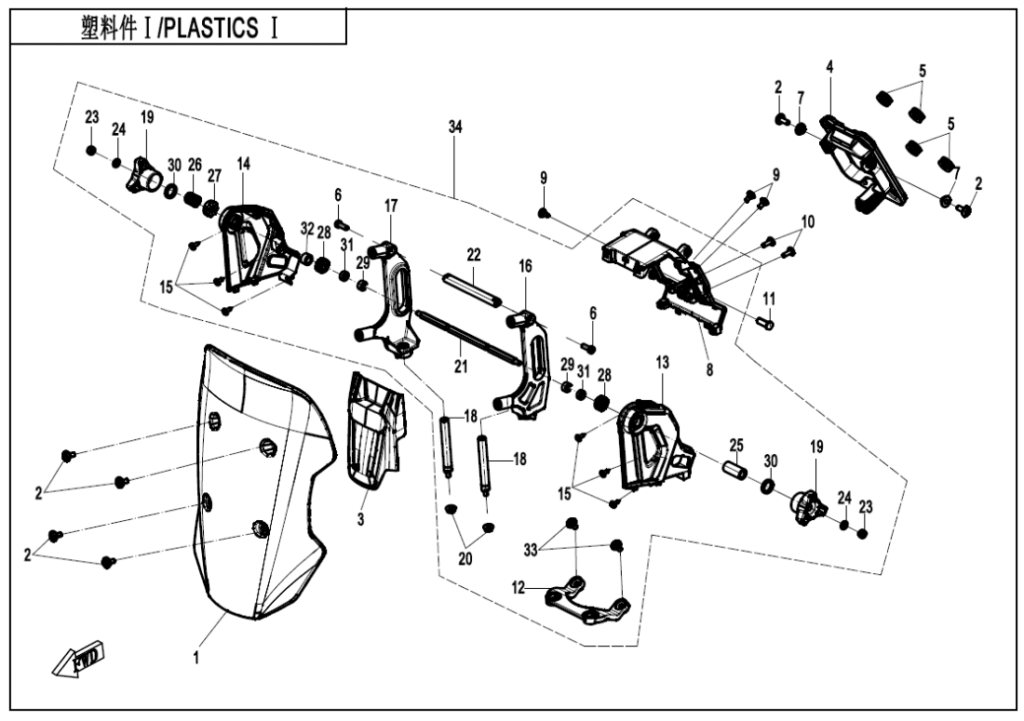

F04-1 PLASTICS 1
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | WINDSHIELD EU 6WWV-040101-8001-10 | Skladem | 683,60 Kč | ||
| 2 | INNER HEX STEPPED SCREW M6x14 6WWV-046602-5000 | Skladem | 15,54 Kč | ||
| 3 | DASHBOARD FRONT COVER 6WWV-046201-8001 | Skladem | 217,51 Kč | ||
| 4 | MOUNTING BRACKET, DASHBOARD 6WWV-040701-8001 | Skladem | 124,29 Kč | ||
| 5 | DAMPER RUBBER 6090-040302 | Skladem | 15,54 Kč | ||
| 6 | SCREW M6x16 30102-060016870 | Skladem | 15,54 Kč | ||
| 7 | LOCK BUSHING, REAR RACK 8080-140004 | Skladem | 15,54 Kč | ||
| 8 | DASHBOARD BRACKET 6WWV-041601-8001 | Skladem | 310,73 Kč | ||
| 9 | STEPPED SCREW M5 6WWV-046502-5000 | Skladem | 15,54 Kč | ||
| 10 | INNER HEX SCREW M5x14 6WWV-047102-5000 | Skladem | 15,54 Kč | ||
| 11 | INTERNAL THREAD SHAFT 6WWV-041602-8000 | Skladem | 46,61 Kč | ||
| 12 | WINDSHIELD GUIDE BRACKET 6WWV-046501-8000 | Skladem | 512,70 Kč | ||
| 13 | DASHBOARD LH BRACKET 6WWV-041701-8000 | Skladem | 155,36 Kč | ||
| 14 | DASHBOARD RH BRACKET 6WWV-041702-8000 | Skladem | 155,36 Kč | ||
| 15 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 16 | WINDSHIELD LH BRACKET 6AQV-040115-6001 | Skladem | 279,66 Kč | ||
| 17 | WINDSHIELD RH BRACKET 6AQV-040116-6001 | Skladem | 279,66 Kč | ||
| 18 | WINDSHIELD GUIDE 6AQV-040131-6000 | Skladem | 295,19 Kč | ||
| 19 | STEERING HANDLE 6AQV-040106-6000 | Skladem | 62,15 Kč | ||
| 20 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 21 | STEEL SHAFT 6AQV-040110-6000 | Skladem | 295,19 Kč | ||
| 22 | ROD 6AQV-040118-6000 | Skladem | 139,83 Kč | ||
| 23 | NUT M6 30224-060800 | Skladem | 77,68 Kč | ||
| 24 | PLAIN WASHER A 30306-060120 | Skladem | |||
| 25 | WINDSHIELD SHAFT BUSHING 1 6AQV-040107-6000 | Skladem | 31,07 Kč | ||
| 26 | WINDSHIELD SPRING 6AQV-040111-6000 | Skladem | 46,61 Kč | ||
| 27 | WINDSHIELD STOP BLOCK 6AQV-040105-6000 | Skladem | 31,07 Kč | ||
| 28 | WINDSHIELD GEAR 6AQV-040103-6000 | Skladem | 31,07 Kč | ||
| 29 | BLOCK 6AQV-040102-6000 | Skladem | 31,07 Kč | ||
| 30 | WINDSHIELD GASKET 6AQV-040104-6000 | Skladem | 15,54 Kč | ||
| 31 | WINDSHIELD RUBBER BUSHING 6AQV-040117-6001 | Skladem | 62,15 Kč | ||
| 32 | WINDSHIELD SHAFT BUSHING 2 6AQV-040113-6000 | Skladem | 46,61 Kč | ||
| 33 | INNER HEX SCREW M6x12 6WWV-046701-5000 | Skladem | 15,54 Kč | ||
| 34 | ADJUSTABLE WINDSHIELD BRACKET ASSY 6WWV-040100-8002 | Skladem | 2 920,84 Kč | ||
