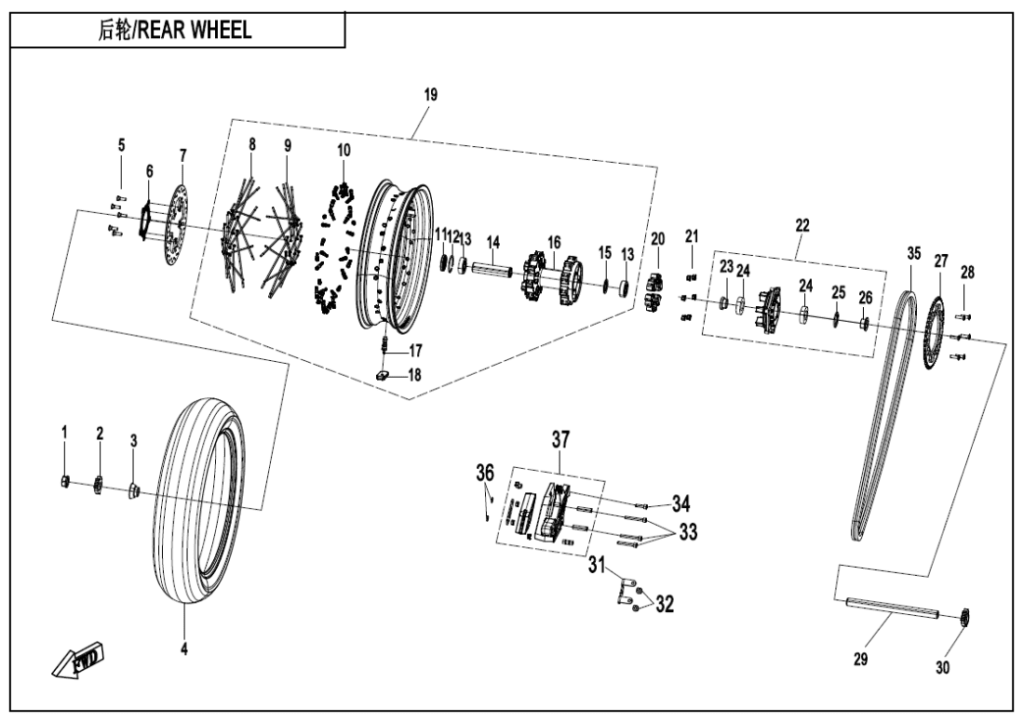

F11 REAR WHEEL
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | NUT, REAR WHEEL SHAFT 6WWV-110001-5000 | Skladem | 348,19 Kč | ||
| 2 | RH CHAIN ADJUSTING BLOCK 6WWV-110002-5001 | Skladem | 341,80 Kč | ||
| 3 | RH BUSHING, REAR WHEEL 6WWV-110006-5000 | Skladem | 497,16 Kč | ||
| 4 | TIRE SH-30705-1805 | Skladem | 8 076,02 Kč | ||
| 5 | Šroub (vrut) A000-080001 | Skladem | 43,52 Kč | ||
| 6 | REAR GEAR RING 6GU#-090002-6001 | Skladem | 261,14 Kč | ||
| 7 | REAR BRAKE DISC 6GU#-090001-6000-M1 | Skladem | 1 180,77 Kč | ||
| 8 | BRAKE SIDE SPOKE 6WWV-110104-8000 | Skladem | 93,22 Kč | ||
| 9 | DRIVE SIDE SPOKE 6WWV-110103-8000 | Skladem | 93,22 Kč | ||
| 10 | Šroubení výpletu 6WWV-110100-5000-20 | Skladem | 512,70 Kč | ||
| 11 | Gufero 6WWV-110100-5000-21 | Skladem | 388,41 Kč | ||
| 12 | CIRCLIP FOR HOLE 52 30800-05205 | Skladem | 31,07 Kč | ||
| 13 | SHAFT SLEEVE 6WWV-110100-5000-22 | Skladem | 512,70 Kč | ||
| 14 | CORE SHAFT 6WWV-110105-5000 | Skladem | 792,36 Kč | ||
| 15 | Podložka 6WWV-110106-5000 | Skladem | 93,22 Kč | ||
| 16 | REAR WHEEL MIDDLE HUB 6WWV-110102-5001 | Skladem | 8 933,43 Kč | ||
| 17 | VALVE, INFLATION 6WWV-070030-5A00-M1 | Skladem | 341,80 Kč | ||
| 18 | TIRE PRESSURE SENSOR 6WWV-150850-5A01 | Skladem | 1 336,13 Kč | ||
| 19 | REAR RIM ASSY 6WWV-110100-8000 | Skladem | 25 727,63 Kč | ||
| 20 | DAMPER, SPROCKET 6L30-110003 | Skladem | 108,75 Kč | ||
| 21 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 22 | SEAT, SPROCKET 6WWV-110300-5000 | Skladem | 4 707,53 Kč | ||
| 23 | SPROCKET SEAT RH BUSHING 6WWV-110302-5000 | Skladem | 295,19 Kč | ||
| 24 | Ložisko 30400-03080 | Skladem | 248,58 Kč | ||
| 25 | NILOS RING 6WWV-110300-5000-20 | Skladem | 93,22 Kč | ||
| 26 | SPROCKET SEAT LH BUSHING 6WWV-110303-5000 | Skladem | 512,70 Kč | ||
| 27 | REAR SPROCKET 6WWV-110005-5000 | Skladem | 1 196,30 Kč | ||
| 28 | SUNK_SCREW_M8x28 6WWV-110004-5001 | Skladem | 31,07 Kč | ||
| 29 | REAR WHEEL SHAFT 6WWV-110401-5000-10 | Skladem | 1 538,10 Kč | ||
| 30 | LH CHIAN ADJUSTING BLOCK 6WWV-110402-5000-10 | Skladem | 528,24 Kč | ||
| 31 | CHAIN GUIDE BRACKET 6WWV-030070-8000 | Skladem | 15,54 Kč | ||
| 32 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 33 | SCREW 30102-060040500 | Skladem | 31,07 Kč | ||
| 34 | Šroub (vrut) 30102-060020810 | Skladem | 15,54 Kč | ||
| 35 | CHAIN 3120919 | Skladem | 4 673,08 Kč | ||
| 36 | Podložka 30306-060112 | Skladem | 15,54 Kč | ||
| 37 | CHAIN GUIDE ASSY 6WWV-110020-8000 | Skladem | 1 196,30 Kč | ||
