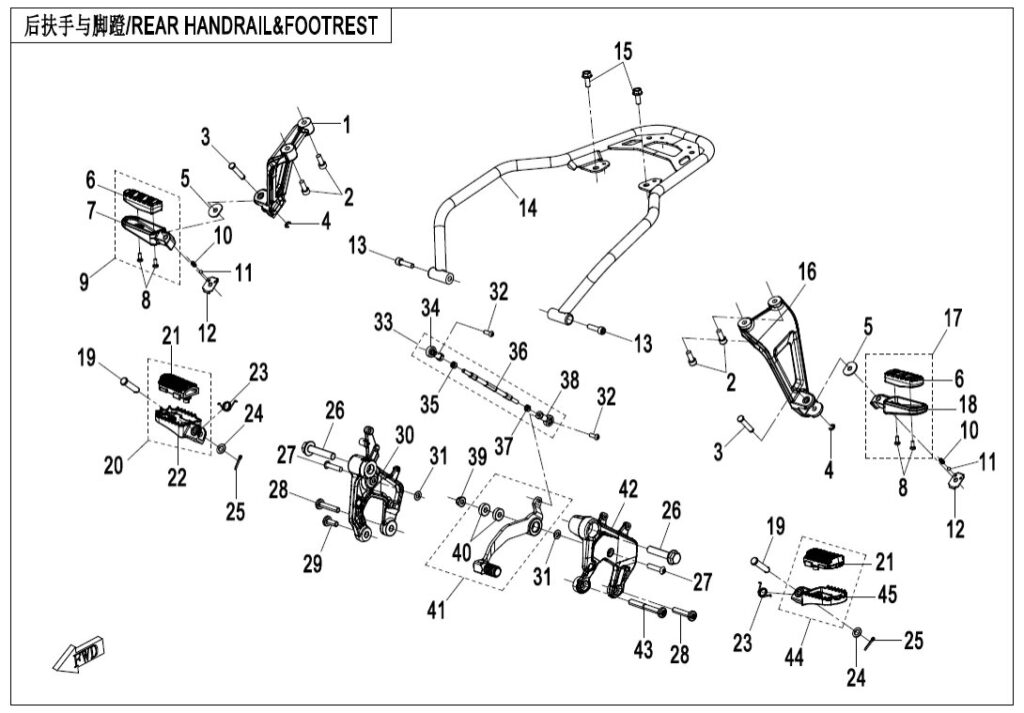

F14 REAR HANDRAIL@^FOOTREST
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BRACKET, RH REAR FOOTREST 6WWV-140002-5000 | Skladem | 2 175,10 Kč | ||
| 02 | SCREW M8x20 30102-080020810 | Skladem | 15,54 Kč | ||
| 03 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 04 | CIRCLIP 6 30802-00603 | Skladem | 15,54 Kč | ||
| 05 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 06 | RUBBER, REAR FOOTREST BOARD 6GU#-140080-6000 | Skladem | 108,75 Kč | ||
| 07 | RH REAR FOOTREST BOARD 6GU#-140051-6000-0BP00 | Skladem | 528,24 Kč | ||
| 08 | Šroub (vrut) 30105-050014470 | Skladem | 15,54 Kč | ||
| 09 | RUBBER, RH REAR FOOTREST BOARD 6GU#-1400B0-6000-0BP00 | Skladem | 543,77 Kč | ||
| 10 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 11 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 12 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 13 | Šroub (vrut) 30102-080030810 | Skladem | 15,54 Kč | ||
| 14 | REAR ARMREST ASSY 6WWV-140100-8000-0VX00 | Skladem | 1 569,18 Kč | ||
| 14 | REAR ARMREST ASSY 6WWV-140100-8001-0VX00 | Skladem | 2 625,65 Kč | ||
| 15 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 16 | BRACKET, LH REAR FOOTREST 6WWV-140001-5000 | Skladem | 2 175,10 Kč | ||
| 17 | RUBBER, LH REAR FOOTREST BOARD 6GU#-1400A0-6000-0BP00 | Skladem | 543,77 Kč | ||
| 18 | LH REAR FOOTREST BOARD 6GU#-140041-6000-0BP00 | Skladem | 497,16 Kč | ||
| 19 | PIN SHAFT 6WWV-140141-5000 | Skladem | 31,07 Kč | ||
| 20 | RH FRONT FOOTREST BOARD 6AQV-140900-6000 | Skladem | 1 134,16 Kč | ||
| 21 | FRONT FOOTREST SEAT RUBBER 6AQV-140810-6000 | Skladem | 108,75 Kč | ||
| 22 | FRONT RH FOOTREST SEAT 6AQV-140920-6000 | Skladem | 1 040,94 Kč | ||
| 23 | SPRING 6L3V-140103-4200 | Skladem | 31,07 Kč | ||
| 24 | Podložka 30300-100112 | Skladem | 15,54 Kč | ||
| 25 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 26 | BOLT M12x60 6WWV-030018-5000 | Skladem | 77,68 Kč | ||
| 27 | SCREW M8x35 30121-080035860 | Skladem | 31,07 Kč | ||
| 28 | ISA SCREW M10X45 ISA45 C0000351004500S | Skladem | 466,09 Kč | ||
| 29 | INNER_HEX_SCREW_M10x22 6WWV-030016-5001 | Skladem | 29,04 Kč | ||
| 30 | BRAKE PEDAL BRACKET ASSY 6WWV-140200-8000 | Skladem | 1 460,42 Kč | ||
| 31 | Podložka 30306-080112 | Skladem | 15,54 Kč | ||
| 32 | Šroub (vrut) 30121-060016700 | Skladem | 15,54 Kč | ||
| 33 | CONNECTING PART, GEARSHIFT ROD 6WWV-140120-5000 | Skladem | 899,49 Kč | ||
| 34 | Ložisko 6GU#-140140-6001 | Skladem | 279,66 Kč | ||
| 35 | Matice 30200-060870 | Není skladem | |||
| 36 | CONNECTING ROD 6WWV-140121-5000 | Skladem | 310,73 Kč | ||
| 37 | Matice 30200-06087L | Skladem | 15,54 Kč | ||
| 38 | Ložisko 6GU#-140160-6001 | Skladem | 279,66 Kč | ||
| 39 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 40 | BEARING 8x22x7 30400-00880 | Skladem | 93,22 Kč | ||
| 41 | PEDAL ASSY, GEARSHIFT ROD 6WWV-141030-8003 | Skladem | 885,57 Kč | ||
| 42 | GEARSHIFT LEVER BRACKET 6WWV-140101-8000 | Skladem | 1 460,42 Kč | ||
| 43 | SCREW M10x80 C0000351008000S | Skladem | 77,68 Kč | ||
| 44 | LH FRONT FOOTREST BOARD 6AQV-140800-6000 | Skladem | 1 134,16 Kč | ||
| 45 | FRONT LH FOOTREST SEAT 6AQV-140820-6000 | Skladem | 1 040,94 Kč | ||
