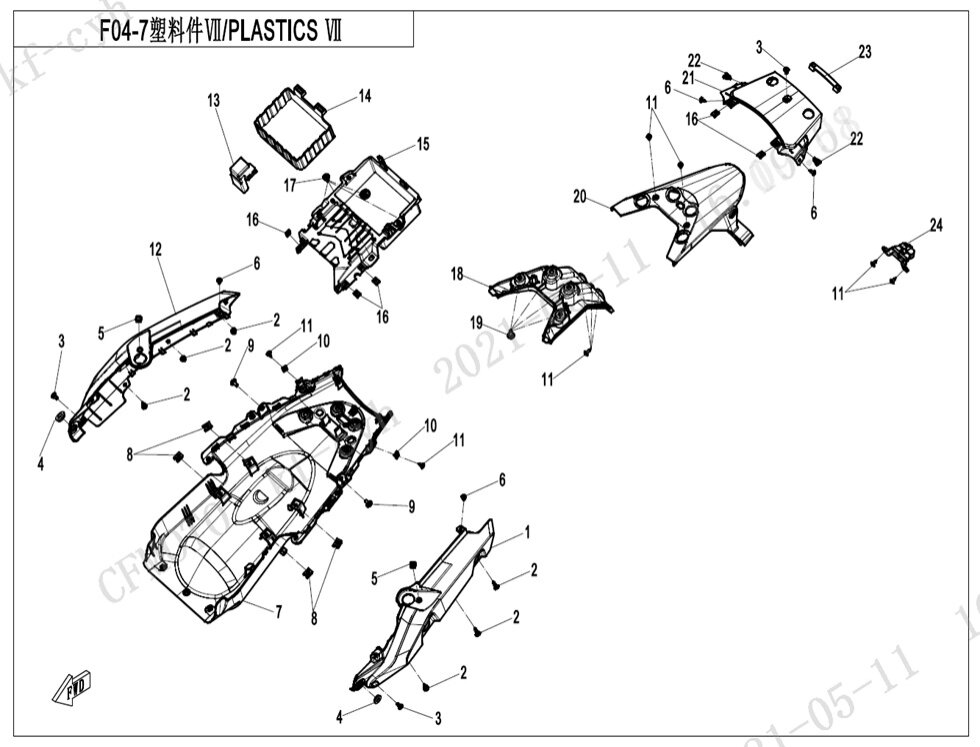

Plasty VII
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | LH PANEL, TAIL LIGHT 6WWV-043101-5000-0B800 | Skladem | 1 204,16 Kč | ||
| 2 | PLASTIC SCREW 8080-041130 | Skladem | 15,54 Kč | ||
| 3 | STEPPED SCREW M5 6WWV-046502-5000 | Skladem | 15,54 Kč | ||
| 4 | DAMPER, FRONT FENDER 8080-040064 | Skladem | 15,54 Kč | ||
| 5 | RUBBER 6WWV-045801-5000 | Skladem | 15,54 Kč | ||
| 6 | SELF-TAPPING SCREW ST4.8×13 30110-481130010 | Skladem | 29,02 Kč | ||
| 7 | SKID PLATE, FRAME 6WWV-042501-5000 | Skladem | 1 227,38 Kč | ||
| 8 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 9 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 11 | SELF-TAPPING SCREW 30110-481130070 | Skladem | 15,54 Kč | ||
| 12 | RH PANEL, TAIL LIGHT 6WWV-043001-5000-0B800 | Skladem | 1 218,66 Kč | ||
| 13 | RUBBER BUSHING, AUXILIARY RELAY 6WWV-045901-5000 | Skladem | 77,68 Kč | ||
| 14 | RUBBER MAT, BATTERY 6WWV-043401-5000 | Skladem | 319,17 Kč | ||
| 15 | BRACKET, ELECTRICAL PART 6WWV-043301-5000 | Skladem | 435,02 Kč | ||
| 16 | CLIP NUT ST4.8 8080-000002 | Skladem | 15,54 Kč | ||
| 17 | SCREW M6×17.5 ARMY GREEN 8030-040020-1000 | Skladem | 31,07 Kč | ||
| 18 | REINFORCEMENT PLATE, REAR FENDER 6WWV-042801-5000 | Skladem | 512,70 Kč | ||
| 19 | BOLT M6x16 8010-090005 | Skladem | 15,54 Kč | ||
| 20 | REAR FENDER 6WWV-042601-5000 | Skladem | 341,80 Kč | ||
| 21 | UPPER COVER, TAIL LIGHT 6WWV-042901-5000 | Skladem | 186,44 Kč | ||
| 22 | CLASP 8080-000001 | Skladem | 15,54 Kč | ||
| 23 | HOOK RUBBER, TAIL LIGHT 6WWV-043201-5000 | Skladem | 46,61 Kč | ||
| 24 | BRACKET, LICENSE LIGHT 6WWV-042701-5000 | Skladem | 62,15 Kč | ||
