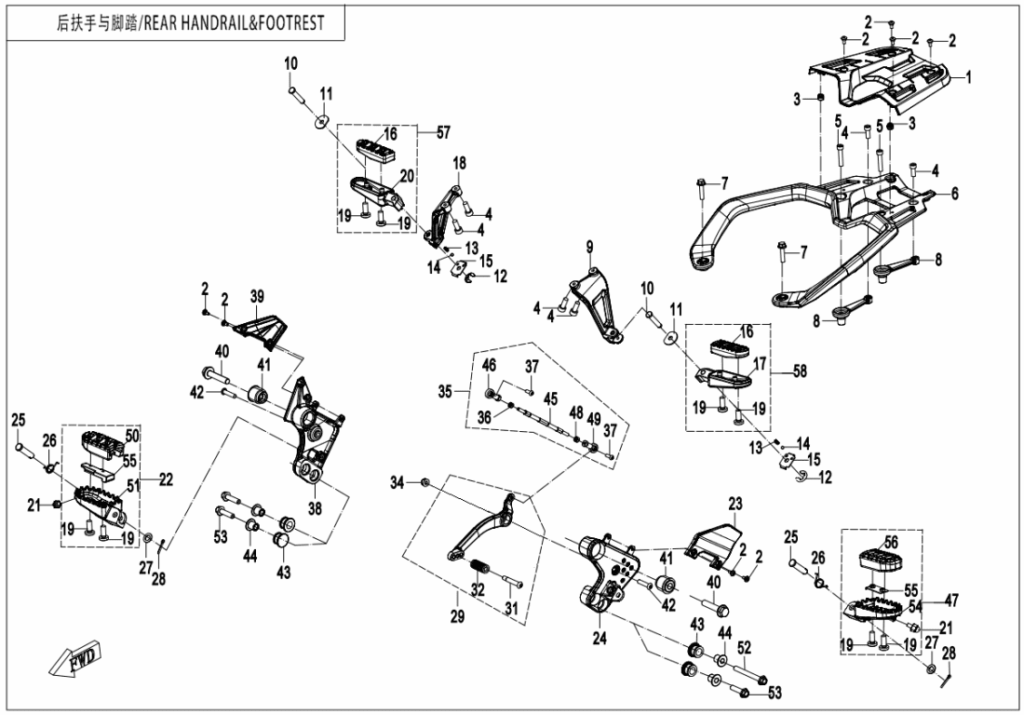

F14 FOOTREST @^ REAR HANDRAIL
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | DECO COVER, REAR ARMREST 6WWV-140008-5000 | Skladem | 388,41 Kč | ||
| 2 | STEPPED SCREW M5 6WWV-046502-5000 | Skladem | 15,54 Kč | ||
| 3 | RUBBER 6WWV-045801-5000 | Skladem | 15,54 Kč | ||
| 4 | SCREW M8x20 30102-080020810 | Skladem | 15,54 Kč | ||
| 5 | SCREW M8x40 30102-080040810 | Skladem | 15,54 Kč | ||
| 6 | REAR ARMREST 6WWV-140003-5000-0VQ00 | Skladem | 5 220,23 Kč | ||
| 7 | BOLT M8x35 30006-080035810 | Skladem | 29,02 Kč | ||
| 8 | BRACKET, REAR ARMREST 6WWV-140004-5000 | Skladem | 341,80 Kč | ||
| 9 | BRACKET, LH REAR FOOTREST 6WWV-140001-5000 | Skladem | 2 175,10 Kč | ||
| 10 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 11 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 12 | CIRCLIP 6 30802-00603 | Skladem | 15,54 Kč | ||
| 13 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 14 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 15 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 16 | RUBBER, REAR FOOTREST BOARD 6GU#-140080-6000 | Skladem | 108,75 Kč | ||
| 17 | LH REAR FOOTREST BOARD 6GU#-140041-6000-0BP00 | Skladem | 497,16 Kč | ||
| 18 | BRACKET, RH REAR FOOTREST 6WWV-140002-5000 | Skladem | 2 175,10 Kč | ||
| 19 | Šroub (vrut) 30105-050014470 | Skladem | 15,54 Kč | ||
| 20 | RH REAR FOOTREST BOARD 6GU#-140051-6000-0BP00 | Skladem | 528,24 Kč | ||
| 21 | LIMIT BOLT 6GU#-140202-6000 | Skladem | 31,07 Kč | ||
| 22 | FRONT FOOTREST SEAT, RH 6GUV-140230-6003-0BP00 | Skladem | 699,14 Kč | ||
| 23 | PANEL, LH FRONT FOOTREST BRACKET 6WWV-140102-5000 | Skladem | 116,06 Kč | ||
| 24 | BRACKET, LH FRONT FOOTREST 6WWV-140100-5001 | Skladem | |||
| 24 | BRACKET, LH FRONT FOOTREST 6WWV-140100-5000-10 | Skladem | |||
| 25 | PIN SHAFT 6WWV-140141-5000 | Skladem | 31,07 Kč | ||
| 26 | SPRING A000-140103-20000 | Skladem | 31,07 Kč | ||
| 27 | Podložka 30300-100112 | Skladem | 15,54 Kč | ||
| 28 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 29 | PEDAL ASSY, GEARSHIFT ROD 6WWV-140110-5000 | Skladem | 1 087,55 Kč | ||
| 31 | BOLT, PEDAL 6NQ#-140104-6002 | Skladem | 101,56 Kč | ||
| 32 | RUBBER SLEEVE, PEDAL 6GUV-140101-6000 | Skladem | 108,75 Kč | ||
| 34 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 35 | CONNECTING PART, GEARSHIFT ROD 6WWV-140120-5000 | Skladem | 899,49 Kč | ||
| 36 | NUT M6 30200-060810 | Skladem | 15,54 Kč | ||
| 37 | Šroub (vrut) 30121-060016700 | Skladem | 15,54 Kč | ||
| 38 | BRACKET, RH FRONT FOOTREST 6WWV-140200-5000 | Skladem | 2 314,92 Kč | ||
| 38 | BRACKET, RH FRONT FOOTREST 6WWV-140200-5001 | Skladem | |||
| 38 | BRACKET, RH FRONT FOOTREST 6WWV-140200-5000-10 | Skladem | |||
| 39 | PANEL, RH FRONT FOOTREST BRACKET 6WWV-140202-5000 | Skladem | 87,05 Kč | ||
| 40 | BOLT M12x60 6WWV-030018-5000 | Skladem | 77,68 Kč | ||
| 41 | RUBBER SLEEVE 6WWV-140050-5000 | Skladem | 435,02 Kč | ||
| 42 | SCREW M8x35 30121-080035860 | Skladem | 31,07 Kč | ||
| 43 | DAMPER 6WWV-140401-5000 | Skladem | 31,07 Kč | ||
| 44 | Pouzdro 6WWV-140405-5000 | Skladem | 159,59 Kč | ||
| 45 | CONNECTING ROD 6WWV-140121-5000 | Skladem | 310,73 Kč | ||
| 46 | Ložisko 6GU#-140140-6001 | Skladem | 279,66 Kč | ||
| 47 | BRACKET, LH FOOTREST 6GU#-140220-6001 | Skladem | 699,14 Kč | ||
| 48 | Matice 30200-06087L | Skladem | 15,54 Kč | ||
| 49 | Ložisko 6GU#-140160-6001 | Skladem | 279,66 Kč | ||
| 50 | RH FRONT FOOTREST RUBBER 6GU#-140206-6000 | Skladem | 159,59 Kč | ||
| 52 | BOLT M10x87 6WWV-140009-5000 | Skladem | 62,15 Kč | ||
| 53 | Šroub 30006-102035860 | Skladem | 31,07 Kč | ||
| 54 | LH FORNT FOOTREST SEAT 6GUV-140203-6002-0BP00 | Skladem | 543,77 Kč | ||
| 55 | BALANCING WEIGHT 6GU#-140207-6000 | Skladem | 170,90 Kč | ||
| 56 | LH FRONT FOOTREST RUBBER 6GU#-140205-6000 | Skladem | 159,59 Kč | ||
| 57 | RUBBER, RH REAR FOOTREST BOARD 6GU#-1400B0-6000-0BP00 | Skladem | 543,77 Kč | ||
| 58 | RUBBER, LH REAR FOOTREST BOARD 6GU#-1400A0-6000-0BP00 | Skladem | 543,77 Kč | ||
