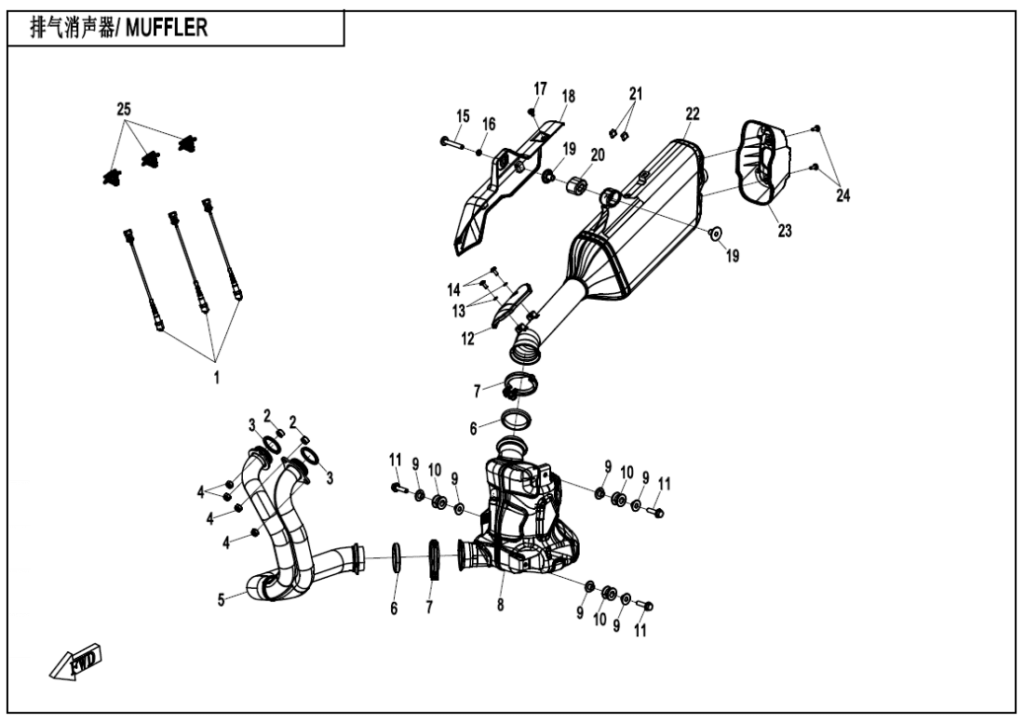

F02 MUFFLER
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | OXYGEN SENSOR 6KMV-004100-M300 | Skladem | 2 920,84 Kč | ||
| 2 | BUSHING, EXHAUST PORT 6WWV-020001-5000 | Skladem | 77,68 Kč | ||
| 3 | SEAL GASKET, EXHAUST 6WWV-020004-5000 | Skladem | 77,68 Kč | ||
| 4 | SELF-LOCKING NUT M8 CU K-51010086100 | Skladem | 261,36 Kč | ||
| 5 | EXHAUST PIPE ASSY 6WWV-021100-5H00 | Skladem | 8 374,12 Kč | ||
| 6 | SEAL SLEEVE 1, GRAPHITE 6L30-021001 | Skladem | 159,59 Kč | ||
| 7 | CLAMP C63605058100 | Skladem | 419,48 Kč | ||
| 8 | MUFFLER BODY ASSY 6WWV-021300-5H00 | Skladem | 10 906,55 Kč | ||
| 9 | BUSHING, MUFFLER BODY 6WWV-020002-5001 | Skladem | 46,61 Kč | ||
| 10 | RUBBER SLEEVE, MUFFLER BODY 6WWV-020003-5000 | Skladem | 31,07 Kč | ||
| 11 | BOLT M8x30 30006-080030810 | Skladem | 15,54 Kč | ||
| 12 | REAR COVER, EXHAUST PIPE 6WWV-021003-5000 | Skladem | 341,80 Kč | ||
| 13 | Podložka 30303-050000 | Skladem | 15,54 Kč | ||
| 14 | INNER HEX SCREW M5×12 6NTA-040202 | Skladem | 15,54 Kč | ||
| 15 | INNER HEX SCREW M8x52 6L30-020003 | Skladem | 170,90 Kč | ||
| 16 | BUSHING, GUARD 6WWV-021004-5000 | Skladem | 87,12 Kč | ||
| 17 | STEPPED SCREW M5 6WWV-046502-5000 | Skladem | 15,54 Kč | ||
| 18 | GUARD, MUFFLER 6WWV-021001-5000 | Skladem | 372,87 Kč | ||
| 19 | MUFFLER T-SHAPE BUSHING C90705169000 | Skladem | 388,41 Kč | ||
| 20 | DAMPING SLEEVE, MUFFLER 6L30-020001 | Skladem | 124,29 Kč | ||
| 21 | GUARD RUBBER SLEEVE 6GU#-021005-6000 | Skladem | 46,61 Kč | ||
| 22 | REAR MUFFLER BODY 6WWV-021300-5001 | Není skladem | 13 846,93 Kč | ||
| 23 | REAR COVER, MUFFLER 6WWV-021002-5000 | Skladem | 290,16 Kč | ||
| 24 | INNER HEX SCREW M5x14 6WWV-047102-5000 | Skladem | 15,54 Kč | ||
| 25 | CONNECTING CLASP 6WWV-004101-5H00 | Skladem | 15,54 Kč | ||
| 25 | CONNECTING CLASP 6WWV-004101-5H01 | Skladem | 15,54 Kč | ||
