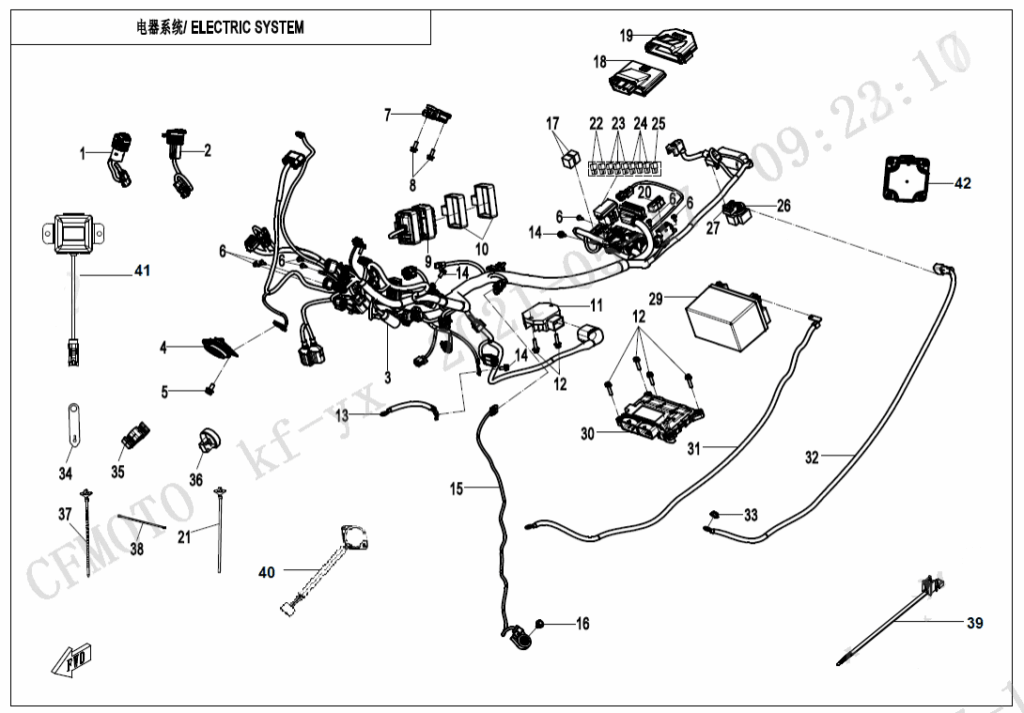

F15-1-B ELECTRIC SYSTEM(EXPLORE EDITION)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | POWER OUTPUT SOCKET ASSY 6WWV-151100-4000 | Skladem | 497,16 Kč | ||
| 2 | USB OUTPUT SOCKET ASSY 6WWV-151200-4000 | Skladem | 963,26 Kč | ||
| 3 | MAIN CABLE 6WWV-150100-5H00 | Skladem | 22 092,76 Kč | ||
| 4 | HORN KNL0-150600 | Skladem | 232,13 Kč | ||
| 5 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 6 | SELF-TAPPING SCREW ST4.8×13 30118-480130010 | Skladem | 15,54 Kč | ||
| 7 | 6D SENSOR 6L30-080040 | Skladem | 12 537,87 Kč | ||
| 8 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 9 | Jednotka T-BOX SN1V-691100-1201-11 | Skladem | 6 943,23 Kč | ||
| 9 | Jednotka T-BOX SN1V-691100-1501-11 | Skladem | |||
| 10 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 11 | REGULATOR 6WWV-177000-5000-M1 | Skladem | 4 023,93 Kč | ||
| 11 | REGULATOR K-60311034100 | Skladem | |||
| 12 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 13 | NEGATIVE CABLE, STARTER MOTOR 6WWV-150300-5000 | Skladem | 275,65 Kč | ||
| 14 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 15 | SIDE STAND SWITCH 6KWV-151200-1000 | Skladem | 481,63 Kč | ||
| 16 | BOLT M6x16 8010-090005 | Skladem | 15,54 Kč | ||
| 17 | AUXILIARY RELAY CFCV-150524-2000-M1 | Skladem | 124,29 Kč | ||
| 18 | VEHICLE CONTROL UNIT 6WWV-150410-5000-10 | Skladem | 6 649,58 Kč | ||
| 19 | BUSHING, VEHICLE CONTROL UNIT 6WWV-150420-5000-10 | Skladem | 174,24 Kč | ||
| 20 | CAP, DIAGNOSIS CONNECTOR 5BY0-150305 | Skladem | 77,68 Kč | ||
| 21 | TIE BAND 801F-100101 | Skladem | 31,07 Kč | ||
| 22 | FUSE 7.5A 806A-151301 | Skladem | 15,54 Kč | ||
| 23 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 24 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 25 | FUSE 5A 8010-151301 | Skladem | 15,54 Kč | ||
| 26 | STARTER RELAY 9CR6-150310 | Skladem | 450,56 Kč | ||
| 27 | 30A FUSE 5BY4-151301 | Skladem | 31,07 Kč | ||
| 29 | BATTERY 31021100 | Skladem | 2 469,65 Kč | ||
| 30 | ECM ASSY 6WWV-001000-5H00 | Skladem | 14 355,63 Kč | ||
| 30 | ECM ASSY 6WWV-001000-5B00-10 | Skladem | 25 805,96 Kč | ||
| 30 | ECM ASSY 6WWV-001000-5H00-10 | Skladem | 14 355,63 Kč | ||
| 31 | NEGATIVE WIRE,BATTERY 6WWV-150400-5000 | Skladem | 696,38 Kč | ||
| 32 | POSITIVE CABLE, STARTER MOTOR 6WWV-150200-5000 | Skladem | 870,47 Kč | ||
| 33 | Matice 30220-060810 | Skladem | 15,54 Kč | ||
| 34 | TIE BAND, CLUTCH 6KJ0-100002 | Skladem | 29,02 Kč | ||
| 35 | WIRE CLIP 2, BRAKE FLUID HOSE 6L30-080006 | Skladem | 31,07 Kč | ||
| 36 | TIE BAND 6L30-150003 | Skladem | 15,54 Kč | ||
| 37 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 38 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 39 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 40 | ALARM 9DQV-150300-3000-10 | Skladem | 1 056,48 Kč | ||
| 41 | GNSS ANTENNA 6WWV-170571-5A01 | Skladem | 1 460,42 Kč | ||
| 42 | REAR 6WWV-460100-5A00-M1 | Skladem | 8 001,25 Kč | ||
